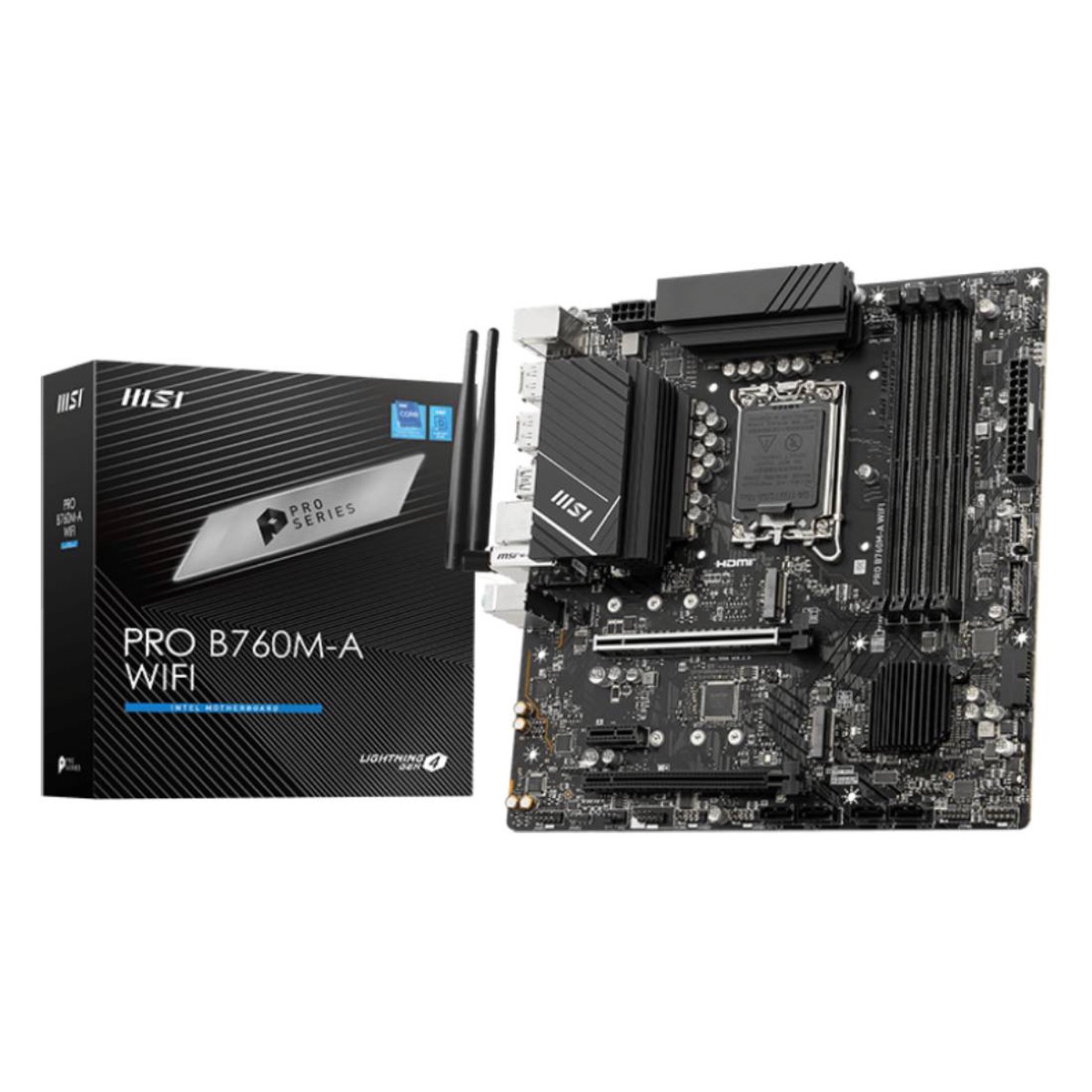

Name: MSI PRO B760M-A WIFI DDR5 LGA 1700 Intel Micro-ATX Gaming Motherboard -
SKU: M471531870965
Availability: InStock

Description

CPU	Intel
Socket	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Back Panel I/O	Keyboard / Mouse
	DisplayPort
	USB 2.0
	USB 3.2 Gen 1 5Gbps (Type-A)
	2.5G LAN
	Wi-Fi / Bluetooth
	Audio Connectors
	USB 2.0
	HDMI
	USB 3.2 Gen 2 10Gbps (Type-A)
Memory Slots	4x DDR5, Maximum Memory Capacity 256GB
Storage Expansion	2x M.2
	4x SATA 6G
Internal I/O	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 5Gbps Type C ports
BackPanel I/O	Keyboard / Mouse
	DisplayPort
	USB 3.2 Gen 1 5Gbps (Type-A)
	2.5G LAN
	Wi-Fi / Bluetooth
	USB 2.0
	HDMI
	USB 3.2 Gen 2 10Gbps (Type-A)
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Wireless	ntel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Software	Support for Windows 11 64-bit, Windows 10 64-bit
Dimensions	mATX 243.84mmx243.84mm
