MSI Pro X870E-S EVO WiFi DDR5 AMD Motherboard
Original price was: $953.74.$148.00Current price is: $148.00.
Description

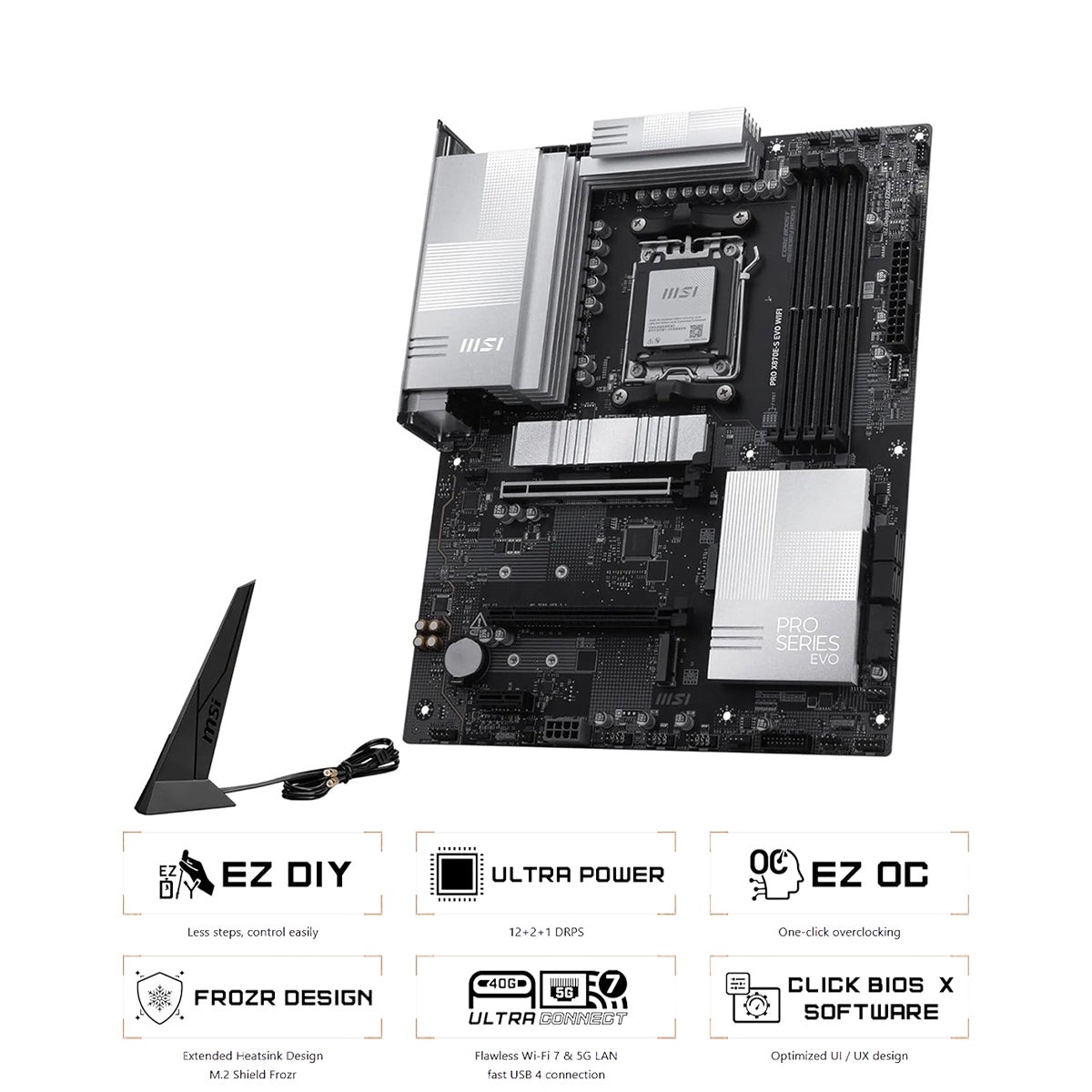

PRO X870E-S EVO WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen 9000 series processors.
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 |
| Memory | 4 DDR5 UDIMM, Maximum Memory Capacity: 256GB DDR5 82005600 (OC) MT/s / 56004800 (JEDEC) MT/s Ryzen 9000 Series Maximum Overclocking: Supports AMD POR Speed, JEDEC Speed, AMD EXPO, Memory Overclocking, Dual-Channel, Non-ECC Un-buffered Memory, and CUDIMM (Clock Driver Bypass Mode Only). * CUDIMM support and boot frequency may vary depending on CPU series. |
| Onboard Graphics | 1 HDMI 2.1 (TMDS), up to 4K 60Hz* 1 USB4 Type-C with DisplayPort 1.4 (HBR3), up to 4K 120Hz* * Available only with processors featuring integrated graphics. |
| Expansion Slots | 2 PCIe x16 Slots 1 PCIe x1 Slot PCI_E1: PCIe 5.0 x16 (CPU) PCI_E1 Supports: |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
| Storage | 3 M.2 Slots M.2_1: PCIe 5.0 x4 (CPU), 2280 / 2260 M.2_2: PCIe 4.0 x4 (Chipset), 22110 / 2280 M.2_3: PCIe 4.0 x4 (Chipset), 2280 / 2260 4 SATA 6Gb/s M.2_1 supports: * Refer to the manual for M.2 heatsink restrictions. |
| RAID | SATA: RAID 0 / 1 / 5 / 10 M.2 NVMe: RAID 0 / 1 / 5 * RAID 5 supported only with Ryzen 9000 / 7000 Series processors. |
| USB | Rear: 4 USB 2.0 2 USB 5Gbps Type-A 2 USB 10Gbps Type-A 1 USB 20Gbps Type-C 1 USB4 40Gbps Type-C Front: |
| LAN | Realtek 8126VB 5G LAN |
| Internal I/O | 1 24-pin ATX Power 2 8-pin CPU Power 1 8-pin PCIe Power 1 CPU Fan 1 Pump/System Fan Combo Header 6 System Fan Headers 2 Front Panel Headers 1 Chassis Intrusion Header 1 Front Audio Header 1 Tuning Controller Header (JDASH) 3 Addressable RGB Gen2 Headers (JARGB_V2) 1 RGB Header (JRGB) 1 TPM Header (TPM 2.0) 6 USB 2.0 Ports (Front) 4 USB 5Gbps Type-A Ports (Front) 1 USB 10Gbps Type-C Port (Front) |
| Wireless & Bluetooth | Wi-Fi 7 (Pre-installed M.2 Key-E Module) Supports 2.4GHz / 5GHz / 6GHz (160MHz) Up to 2.9Gbps Supports 802.11 a/b/g/n/ac/ax/be Bluetooth 5.4, MLO, 4KQAM * 6GHz and Bluetooth 5.4 availability depends on regional regulations and Windows 11 version 24H2. |
| LED Features | 4 EZ Debug LEDs 1 EZ Memory Detection LED |
| Back Panel Ports | Clear CMOS Button Flash BIOS Button HDMI USB 40Gbps Type-C USB 20Gbps Type-C USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Port Wi-Fi / Bluetooth Antenna Connectors Audio Connectors |
| Operating System | Supports Windows 11 64-bit |
