New Arrival Raspberry Pi DAC Pro – Green PCB

Description

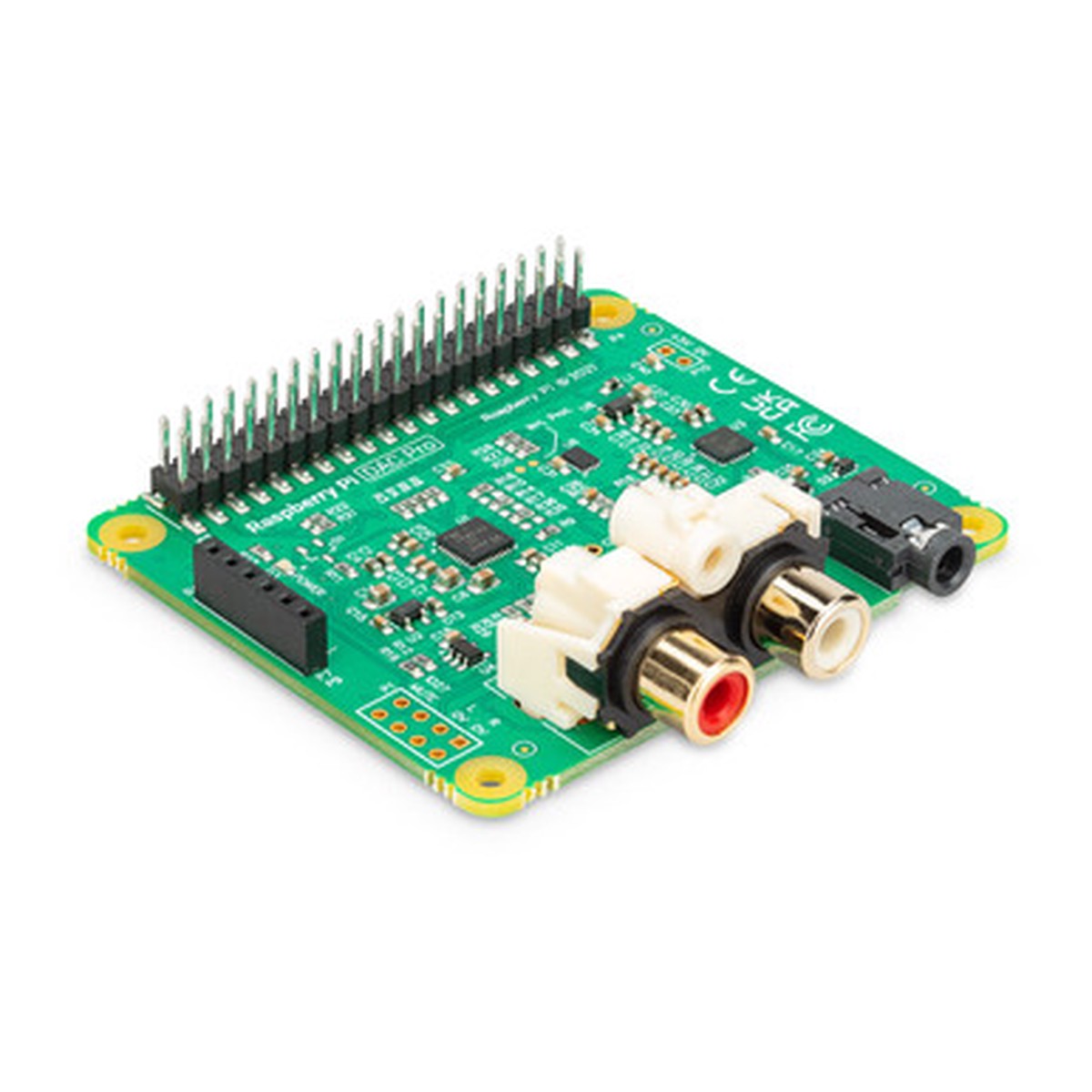

Description Show Reviews Raspberry Pi DAC Pro, Green PCB – SC2077 – Previously known as IQaudio DAC Pro The Raspberry Pi DAC Pro is our highest-fidelity audio HAT, and is compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments PCM5242, the DAC Pro provides an outstanding signal-to-noise ratio (SNR) and supports balanced/differential output in parallel to phono/RCA line-level output. It also includes a dedicated headphone amplifier. Previously known as IQaudio DAC Pro. The new version includes a new audio jack and the 6-pin header connector is removed. The P7/P9 connector is no longer fitted . Two enclosures are compatible with this HAT: HighPi Pro Case for IQAudio DAC+ and Raspberry Pi 3 forRaspberry Pi 3 HighPi Pro Case for IQAudio DAC+ and Raspberry Pi 4 for Raspberry Pi 4 Specifications Check out audio boards documentation for help selecting and using Raspberry Pi audio boards. The Raspberry Pi DAC Pro is compatible with any Raspberry Pi computer that has a 40-pin GPIO header. Form factor: 58mm65mm Performance: Full high definition 24-bit 192kHz Texas Instruments PCM5242 digital audio codec (DAC) Input power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required Features: Power LED Analogue out (02V RMS via P7) Dedicated headphone amplifier, output via 3.5mm panel-mounted barrel socket Panel-mounted stereo phono (RCA) socket output 40-pin pass-through GPIO header HAT EEPROM write-enabled Operating temperature: 0C50C Documents Raspberry Pi DAC Pro product brief Change of branding product change note Compliance Raspberry Pi DAC Pro has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at pip.raspberrypi.com . 0 Reviews Hide Reviews Show Reviews
