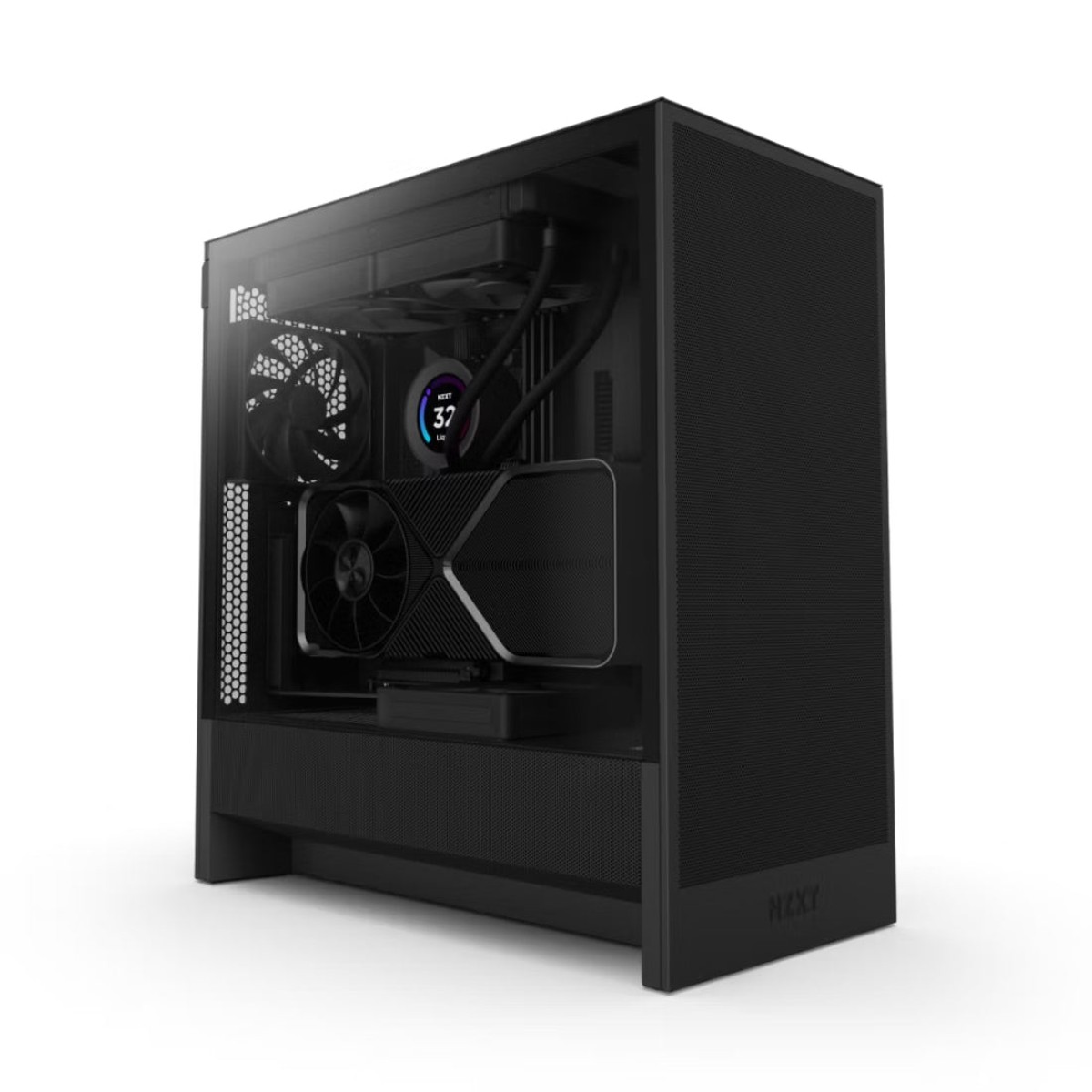

NZXT H5 Flow RGB ATX Mid Tower Case – Black –

Description

Key Specs:

• Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

• Enclosure Type:Mid-Tower

• Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions:

• Height (with feet):465 mm / 18.31 in

• Width:225 mm / 8.86 in

• Depth:430 mm / 16.93 in

• Weight:7.63 kg / 16.82 lb

Compatibility & Clearance:

• CPU Cooler Height:Up to 170 mm

• GPU Length:Up to 410 mm

• PSU Length:Up to 200 mm

• Cable Management:Up to 28.7 mm

• Top Radiator:Up to 240 mm (280 mm with low-profile memory)

• Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm

Front Ports:

• USB 3.2 Type-A:1

• USB 3.2 Gen 2×2 Type-C (20 Gbps):1

• Headset Audio Jack:1

Expansion Slots:

• Standard:7

• Vertical:0

Drive Bays:

• 2.5″:2

• 3.5″:1

Fan Support:

• Front:3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)

• Top:2 x 120 mm / 2 x 140 mm

• Bottom:2 x 120 mm

• Rear:1 x 120 mm (1 x F120Q Case Version included)

Radiator Support:

• Front:Up to 360 mm

• Top:Up to 240 mm (280mm with low-profile memory only)

Fan Specs:

• Model:F360 RGB Core (Case Version)

• Speed:1,700 200 RPM

• Airflow:50.1 CFM

• Static:1.27 mm-HO

• Noise:23.3 dBA

• Fan Connector:3-pin DC

Fan Specs:

• Model:F120Q (Case Version)

• Speed:1,350 150 RPM

• Airflow:60.2 CFM

• Static:1.05 mm-HO

• Noise:24.1 dBA

• Fan Connector:3-pin DC
