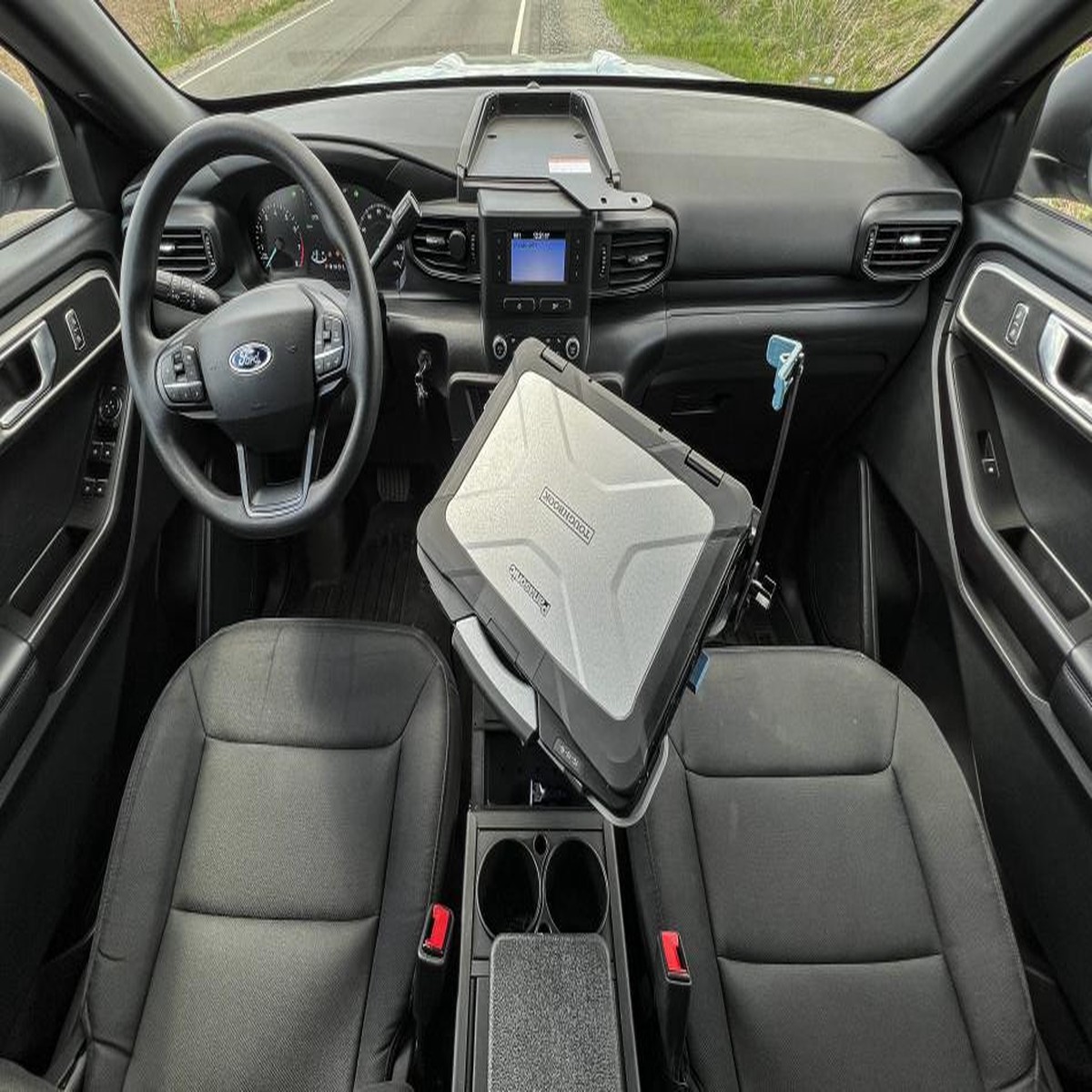

Panasonic Toughbook 40 NO RF FULL Port Replication laptop vehicle docking station | 7160-1728-00 | 7160-1728-00

Description

Panasonic Toughbook 40 NO RF FULL Port Replication laptop vehicle docking station |7160-1728-00 This docking station is designed for reliable compatibility with the Panasonic Toughbook 40 rugged computer. This docking station features full port replication including: Ethernet, Serial, HDMI, USB-A, USB-C, and USB-C with DisplayPort. ANTENNA PASS-THROUGH None PORT REPLICATOR Panasonic Certified Electronics (2) Ethernet,RJ45 (1) Serial, 9-pin (1) HDMI, 19 pin (2) USB-C 10Gbps (Max1.5A@5V) with DisplayPort Alternate Mode* (1) USB-C 0.5Gbps (500mA) front facing (1) USB-A 10Gbps (900mA) (2) USB-A 0.5Gbps (500mA) Power input (15V) *The two USB Type-C ports support DisplayPort Alternate Mode. (When the two ports are connected, only one port can be used for display output. The port closer to the HDMI port takes priority). POWER ADAPTER OPTIONS Power adapter isnotincluded, please use one of the following: LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216) LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461) LIND 11-16VDC Auto Power Adapter with cigarette lighter connector (7300-0462) FEATURES Uses Panasonic Toughbook Certified electronics for reliable connectivity Access to all computer control buttons and most ports while docked Rear-facing I/O ports; integrated cable strain relief and cable management system LED indicator light reflects docking connection to ensure proper docking Shutter cover for extra docking connector protection Designed to the footprint of the computer to preserve cabin space Right-facing docking/release latch for easy docking and undocking Keyed lock for theft deterrence Gamber-Johnson rugged construction and reliability Composite design for reduced weight and durability VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments CERTIFICATES & TESTING MIL-STD 810G Shock/Vibration Tested MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational) Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms RoHS, FCC, CE SAE J1455 Shock Crash Hazard Test KIT INCLUDES Panasonic Toughbook 40 Docking Station, Full Port, No RF (7160-1728-00) Mounting Hardware Installation Instructions WARRANTY 3-Year Limited Warranty EXTENDED WARRANY Yes – seeGamber Guard
