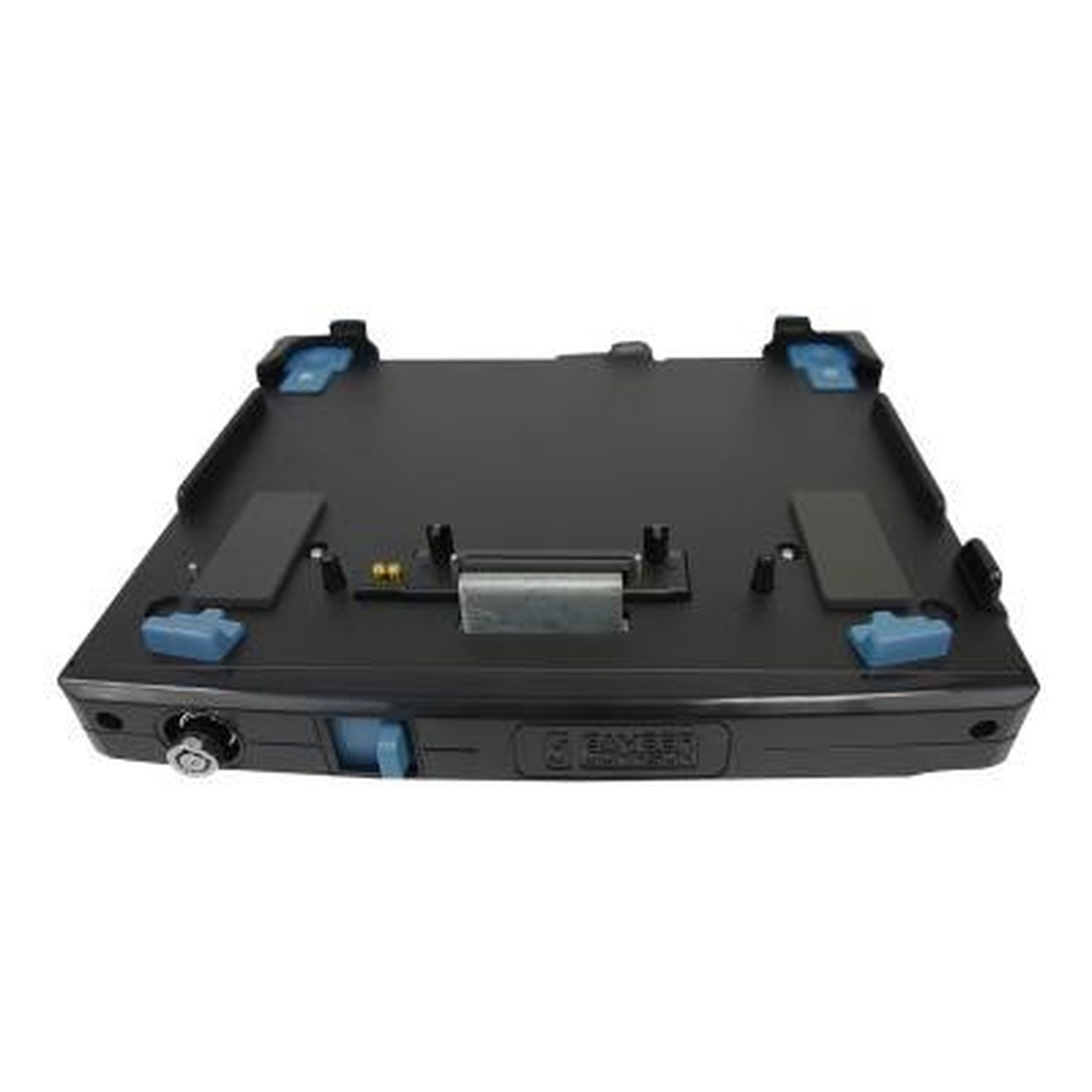

Panasonic Toughbook CF-20 DUAL RF vehicle docking station. Keyed alike. – 7160-1265-02 | 7160-1265-02

Description

Panasonic Toughbook CF-20 DUAL RF vehicle docking station. Keyed alike. Gamber-Johnson part number 7160-1265-02.SpecificationsWeight5 lbs / 2.27 kgHeight2.5 in / 6.35 cmWidth11.6 in / 29.46 cmDepth10.1 in / 25.65 cmFeaturesCompatible with the Panasonic TOUGHBOOK 20 and G2 2-in-1 tablet computers with attachable keyboards Panasonic Certified electronics Spring-loaded cover protects docking connector when computer is not docked; automatically retracts for superior protection Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin Can be used in either laptop or tablet orientation. Composite/aluminum design for reduced weight and durability Designed with rounded edges to enhance personal safety Rear-facing I/O ports, integrated cable strain relief and cable management system Access to all notebook control buttons and ports while the notebook is docked Keyed lock for theft deterrence. NOTE: The lock secures the TOUGHBOOK 20 keyboard and tablet, but secures only the keyboard for the G2. VESA 75 mm mounting pattern Dual RF TNC3-year limited warrantyProduct DetailsModel: TOUGHBOOK 20, TOUGHBOOK G2Device OEM: PanasonicWarranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options AvailablePower Supply: LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459), LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460), LIND 12-32V Material Handling Isolated Power Adapter (7300-0464), LIND 20-60V Material Handling Isolated Power Adapter (7300-0465), LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)Testing Specifications: TOUGHBOOK Certified, MIL-STD 810G Shock/Vibration Tested, MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational), Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms, RoHS, FCC, CE, C-TICK, UKCA, SAE J1455 Shock Crash Hazard TestPort Replicators: Panasonic certified electronics, (2) USB 3.0 – 9 pin, (1) HDMI – 19 pin, (1) Serial – D-sub 9-pin, (1) Ethernet – RJ45, (1) VGA D-sub -15-pin, Antenna switch, Dual RF Pass-Through (optional) – TNC, Power supply input – DC 15.6V-16VAntenna Pass-through: Dual RFDevice Type: LaptopIndustry: Fire/Rescue, Public Safety, UtilityPort Replication: FullSub Type 1: DockNotes:Compatible with the Panasonic Toughbook 20 and G2 tablets with attachable keyboards.DownloadsProduct Sheet (PDF)Installation Guide (PDF)Testing Summary (PDF)
