Panasonic Toughbook G1 DUAL RF THIN LITE Port Replication vehicle docking station. Keyed Alike lock. VESA 75 mounting pattern. | 7160-0595-22 | 7160-0595-22

Description

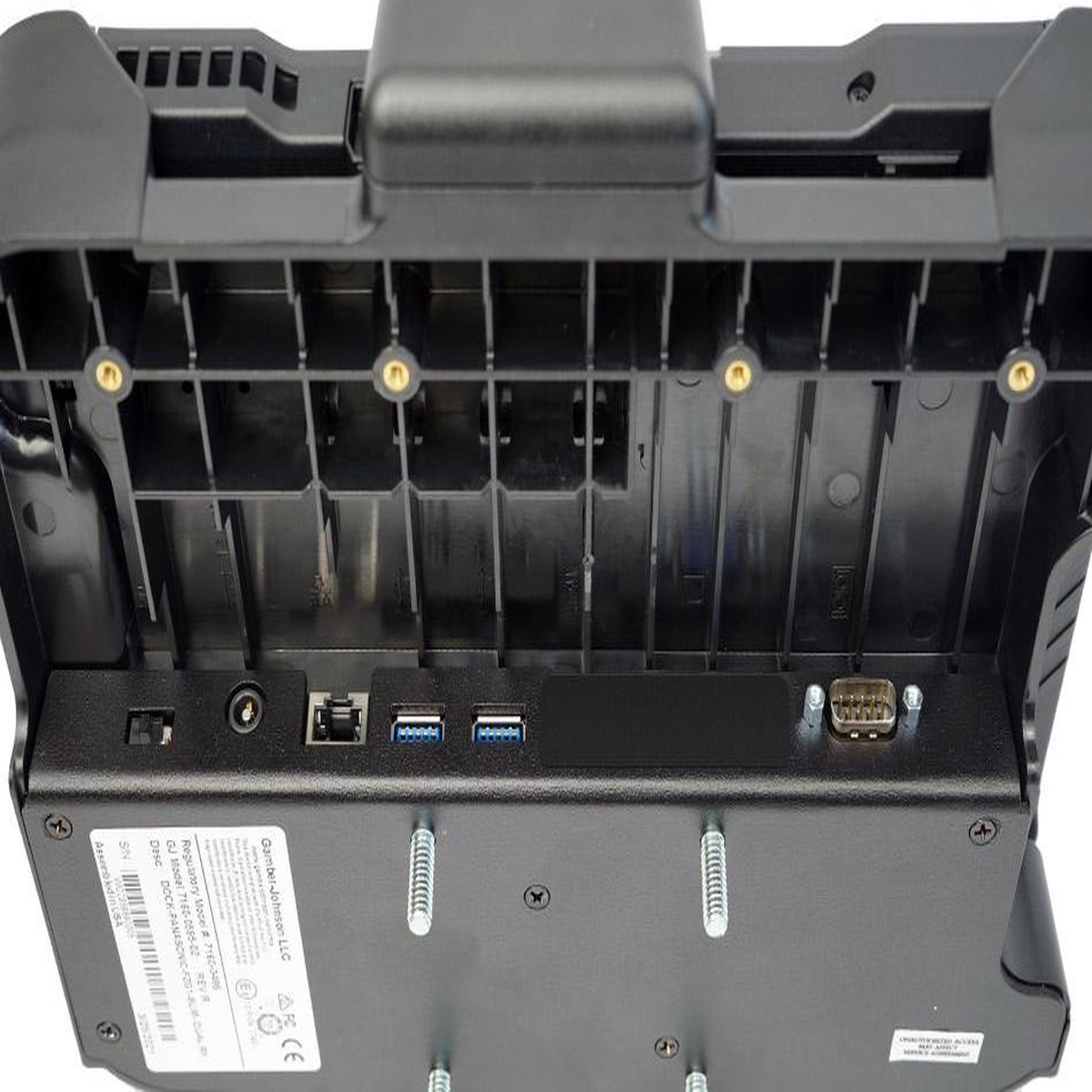

Panasonic Toughbook G1 DUAL RF THIN LITE Port Replication vehicle docking station. Keyed Alike lock. VESA 75 mounting pattern. |7160-0595-22 The Toughpad FZ-G1 THIN docking station is the perfect companion to the G1 tablet if you do not require a handstrap for the tablet, this dock features dual RF antenna connection, lite port replication to connect peripherals and due to its small footprint, is perfect for conserving cabin space in a smaller vehicle. ANTENNA PASS-THROUGH Dual RF (TNC) PORT REPLICATOR Panasonic certified electronics (1) Ethernet – RJ45 (1) Serial – D-sub 9-pin (2) USB 3.0 (900mA) – 9 pin Dual RF Pass-through (optional) – TNC Power input – 16VDC Antenna Switch POWER SUPPLY Power adapter isnot included, please use one of the following: LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459) LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460) LIND 12-32V Material Handling Isolated Power Adapter (7300-0464) LIND 20-60V Material Handling Isolated Power Adapter (7300-0465) LIND 72-110V Material Handling Isolated Power Adapter (7300-0417) FEATURES Compatible with the Panasonic Toughpad FZ-G1 tablet computers with small bumper guards Panasonic certified electronics Docking Station is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle Access to all tablet control buttons and ports while tablet is docked Easy to use one-handed docking and release, Insert bottom of computer into the docking station, push top of computer against latch button to dock computer To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station Upward-facing I/O ports; integrated cable strain relief and cable management system Keyed lock for theft deterrence VESA 75mm mounting pattern Rounded edges to enhance personal safety Gamber-Johnson rugged construction and reliability Composite design for reduced weight and durability CERTIFICATIONS & TESTING Toughbook Certified MIL-STD 810G Shock/Vibration Tested MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational) Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms RoHS, FCC, CE, C-TICK, UKCA SAE J1455 Shock Crash Hazard Test KIT INCLUDES Panasonic FZ-G1 Docking Station Mounting Hardware Installation Instructions WARRANTY 3-Year Limited Warranty Explore ourextended warrantyprogram
