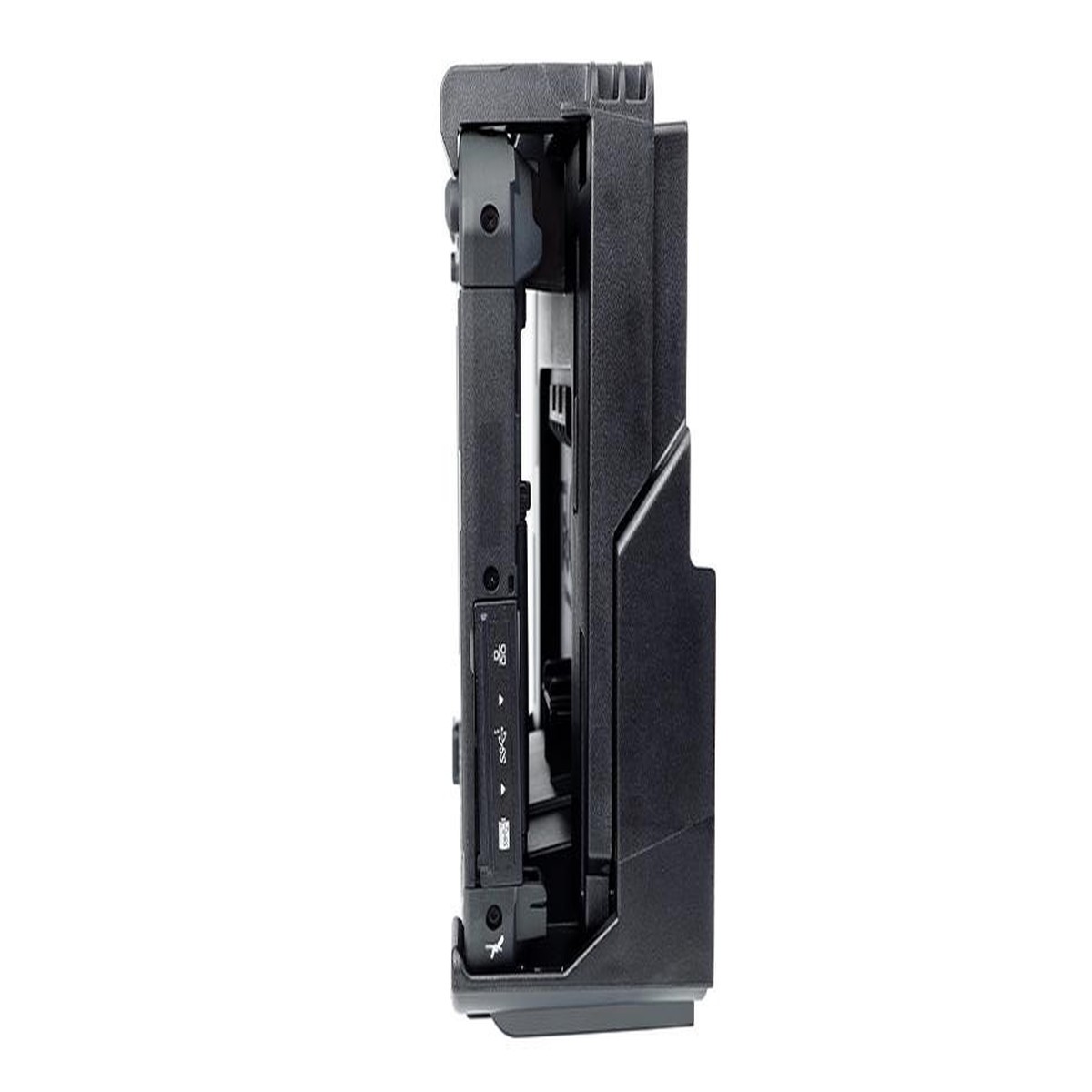

Panasonic Toughbook G2/G1 NO RF LITE Port Replication vehicle docking station. Keyed Alike lock. VESA 75 mounting pattern. | 7160-0487-20 | 7160-0487-20

Description

Panasonic Toughbook G2/G1 NO RF LITE Port Replication vehicle docking station. Keyed Alike lock. VESA 75 mounting pattern. |7160-0487-20 This Panasonic Toughpad FZ-G1/G2 docking station accommodates the tablet’s extended battery, smart card reader, rear hand strap and large bumper guards. This docking station features lite port replication to connect peripherals and a VESA 75mm mounting pattern. ANTENNA PASS-THROUGH None PORT REPLICATOR Panasonic certified electronics (1) Ethernet – RJ45 (1) Serial – D-sub 9-pin (2) USB 3.0 (900mA) – 9 pin Dual RF Pass-through (optional) – TNC Power input – 16VDC Antenna Switch POWER SUPPLY Power adapter isnot included, please use one of the following: LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459) LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460) LIND 12-32V Material Handling Isolated Power Adapter (7300-0464) LIND 20-60V Material Handling Isolated Power Adapter (7300-0465) LIND 72-110V Material Handling Isolated Power Adapter (7300-0417) FEATURES Compatible with the Panasonic Toughpad FZ-G1 and Toughbook G2 tablet computers with small or large bumper guards Panasonic certified electronics Docking station accommodates the tablet’s extended battery, smart card reader, rear hand strap and large bumper guards. Access to all tablet control buttons and ports while tablet is docked Easy docking and release, Insert computer into the docking station, push top of dock down and engage lock to dock computer Upward-facing I/O ports; integrated cable strain relief and cable management system Keyed lock for theft deterrence VESA 75mm mounting pattern Rounded edges to enhance personal safety Gamber-Johnson rugged construction and reliability Composite design for reduced weight and durability CERTIFICATES & TESTING Toughbook Certified MIL-STD 810G Shock/Vibration Tested MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational) Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms RoHS, FCC, CE, C-TICK, UKCA SAE J1455 Shock Crash Hazard Test KIT INCLUDES Panasonic FZ-G1 / G2 Docking Station Mounting Hardware Installation Instructions WARRANTY 3-Year Limited Warranty Explore ourextended warrantyprogram
