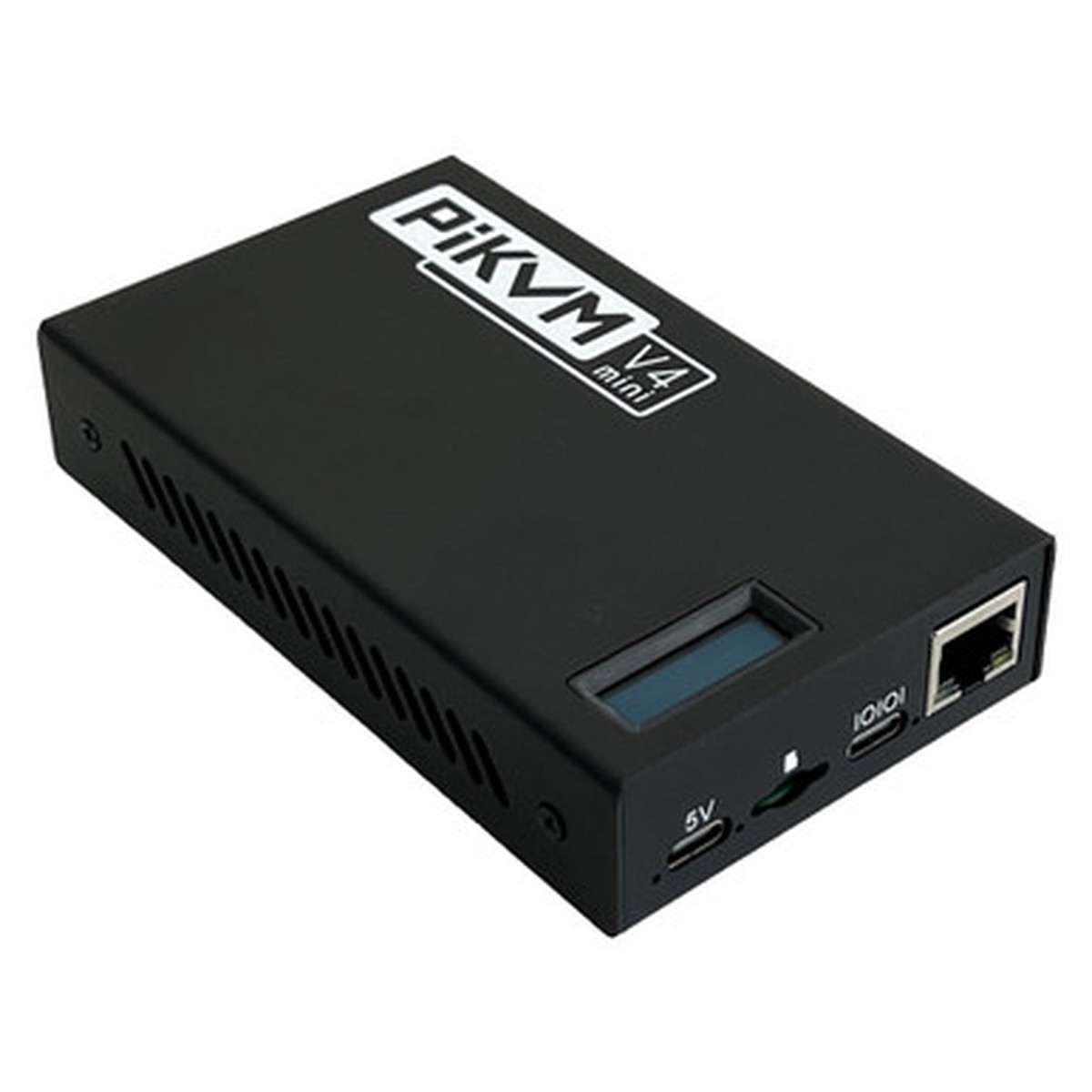

PiKVM V4 Mini

Description

Description Show Reviews PiKVM V4 Mini -Remote Raspberry Pi KVM Over IP The Pi-KVM V4 Mini is a compact, budget-friendly, all-in-one KVM over IP solution designed for professionals, developers, and system admins who need reliable, real-time remote access to their servers and PCs. Built on the powerful and secure PiKVM OS , this tiny KVM delivers enterprise-grade features like HDMI capture, USB emulation, and ATX power control in a fully integrated unit no external Raspberry Pi or extra hardware needed . Whether you’re managing a headless server, troubleshooting a remote workstation, or building your own home lab, the PiKVM V4 Mini offers plug-and-play convenience , rock-solid performance , and full compatibility with open-source PiKVM tools. All at an unbeatable value. USB functionality such as KVM switching is only supported on the PiKVM V4 Plus . If you are unsure about which model to choose, go see our detailed comparison chart Features Capture video signal up to 1920×1200@60 Hz with audio and deliver it to your browser using WebRTC and efficient H.264 encoding. Transfer your mouse and keyboard actions to a remote PC. Take full control of a remote PCs power: remote reset or reboot using the actual hardware reset & power buttons connector functions. Access to all configuration settings of a remote computer, like tweaking UEFI/BIOS settings to do some overclocking! Boot a controlled PC using any OS you need using mass storage device emulation support. You can even reinstall the system remotely! Fanless design with a passive heatsink for quiet operation. Includes a locator LED simplifying your device search. Improved power consumption in idle mode: just 2.67 Watts! Important: USB-C display input is not supported. PiKVM V4 Mini vs V4 Plus Feature PiKVM V4 Mini PiKVM V4 Plus Main computing unit Raspberry Pi CM4 Raspberry Pi CM4 HDMI capture 19201200 @ 60 Hz with sound 19201200 @ 60 Hz with sound BIOS/UEFI compatibility Keyboard/mouse & mass storage emulation USB host ports (connect external USB devices) Internal USB storage support RJ-45 console port Cooling system Fanless, quiet Radial fan, advanced cooling Locator LED Idle power consumption ~2.65 W ~3.3 W External antenna support Wi-Fi (with antenna kit) Wi-Fi / LTE (with optional LTE kit) mPCIe slot for LTE/5G cards Key takeaway: Choose the Mini if you want a compact, low-power unit for remote BIOS access and virtual media. Choose the Plus ifyou need extra USB host ports, console access, LTE support, or advanced cooling. Specifications Raspberry Pi Compute Module 4 CM4102000 with 2GB of RAM, WiFi, and Bluetooth Connection type USB-C Power type DC 5.1V, 3A Power failure option Internal supercapacitor for the real time clock support HDMI female HDMI source input USB-C female For the keyboard, mouse, mass storage, and other external device emulation) USB-C female Serial console management port Micro SD card slot For the OS storage ATX RJ-45 Special port for power control or AUX WiFi Optional WiFi b/g/n support with internal/external antenna LED indicators power, activity, console power, search led, HDMI source engaged OLED display OLED 128×32 0.91 white Supported resolutions up to 1920×1200@60Hz Video compression methods MJPEG, H.264 Audio capture mode HDMI audio capture support Peak power consumption Up to 12W (2.6A/5V) Operating temperature 0C to 50C Storage temperature -20C to 60C Size 120 x 68 x 24mm Weight 0.35 kg Connectivity Diagram Power LED (Green) Power Input 5.1V 3A Activity LED (Red) Micro SD card slot USB 2.0 Serial console port Serial console active LED Green (Beacon LED) RJ45 1Gb Ethernet connector RJ45 ATX Control connector USB 2.0 OTG connector Mount hole for WiFi SMA antenna connector Beacon LED HDMI Power present LED Green HDMI video input connector Video capture power ok LED amber Ventilation holes Service switches Kensington Security Slot Display Content PiKVM V4 Mini device Micro SD card with pre-imaged Pi-KVM software ATX control board ATX connection cables ATX installation brackets 1 x Ethernet cable 1 x ATX cable 1 x USB-C to USB-A cable 5V 3.1A USB-C Power Supply (international adapters) Resources Support Forum PiKVM Website PiKVM on GitHub Kickstarter Campaign CE/UKCA compliance 1 Review Hide Reviews Show Reviews 5 Reliable, great performance Posted by Keyvan on Dec 15th 2023 Dec 15th 2023 Working great. Very happy with it. It is life changing to be able to access my gaming computer in this way, and be able to dual-boot into linux and fix issues remotely. Having this device in the mix makes it much safer to do more things with the system and so I appreciate it very much. The only complaint I have is that the USB CD emulation does not yet support DVD size disks, one has to resort to flash disk emulation which requires more work.
