PiTalk – 4G IoT HAT

Description

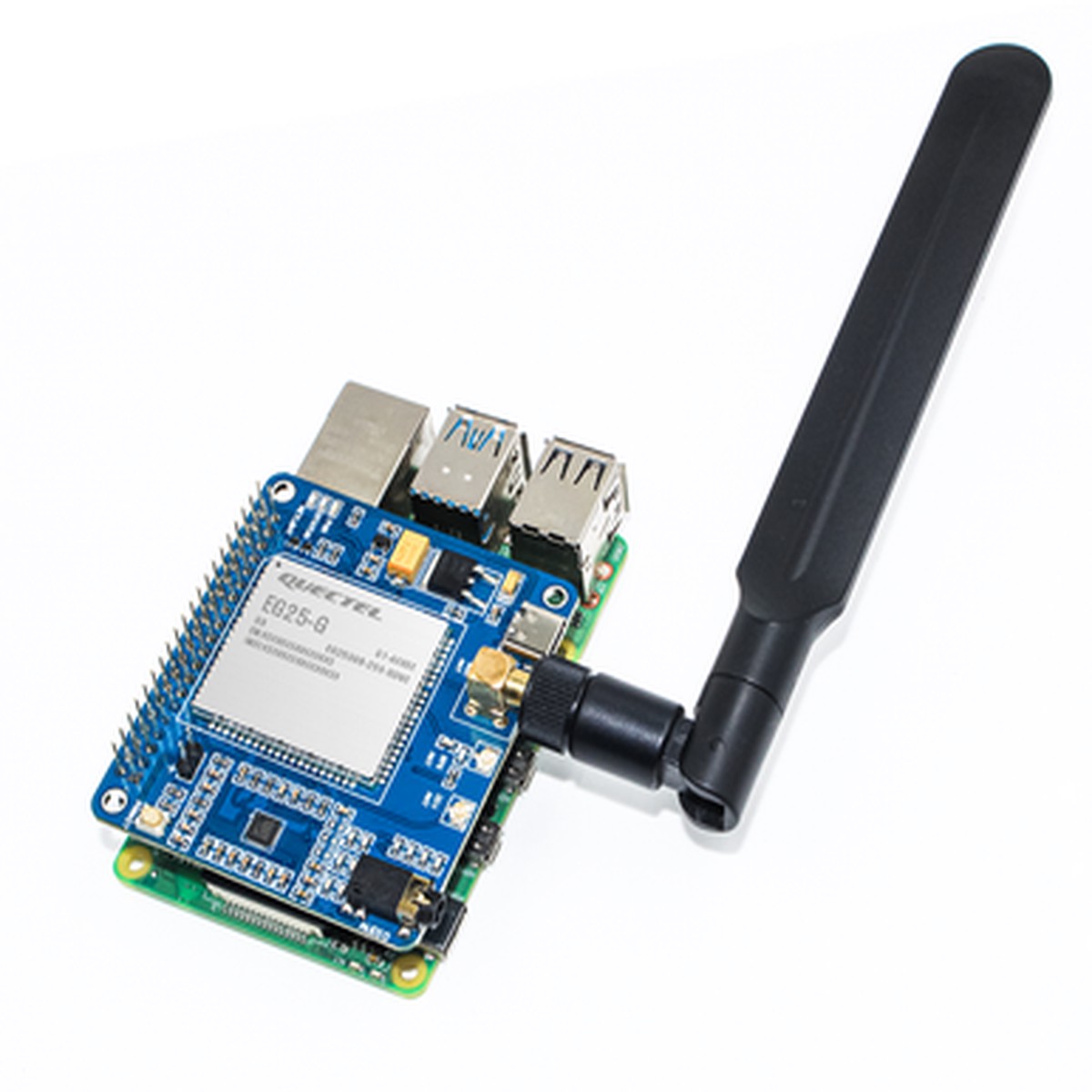

Description Videos Show Reviews PiTalk – 4G IoT HAT – SKU25985 PiTalk is a 4G cellular connectivity solution based on Quectel EG25-G LTE Cat 4 module intended for M2M and IoT applications, PiTalk supports data rates up to 150 Mbps downlink and 50 Mbps uplink, integrates GNSS support, and as its name implies you can also make and receive calls, or send/receive SMS messages for the device provide you connect a display, speaker, and microphone to the Raspberry Pi or other host device. PiTalk 4G IoT HAT supports all single board computers (40 Pins GPIO Compatibility) like Raspberry Pi 4, 3, zero, zero 2, Rock SBC Series, Banana Pi, and much more… Specifications Quectel EG25-G 4G LTE cellular module: 3G and 4G LTE with 2G fallback Max. 150Mbps DL/ 50Mbps UL Global bands support 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 4G LTE-TDD: B38/B39/B40/B41 3G WCDMA: B1/B2/B4/B5/B6/B8/B19 2G GSM: B2/B3/B5/B8 GNSS Qualcomm IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS) Temperature Range -40C to +85C (Thats for the module only) Cellular 1x SMA connector, 1x U.FL connector GNSS 1x U.FL connector NanoSIM card holder Audio 3.5mm audio jack, 2-pin speaker connector USB 1x USB Type-C port (for connection to the host through USB?) Misc Power key; Network, Status, and Power LEDs The 40-pin female header for connection to the single board computers eg. Raspberry Pi, Rock SBC, etc Dimensions 65 x 58 mm (Raspberry Pi HAT form factor) Includes 1 x PiTalk 4G IoT HAT 1 x Antenna Videos Hide Videos Show Videos PiTalk 4G IoT HAT for Raspberry Pi & 4G Dongle – SB Components #Kickstarter #RaspberryPi #PiTalk #SBComponents The PiTalk 4G… 0 Reviews Hide Reviews Show Reviews
