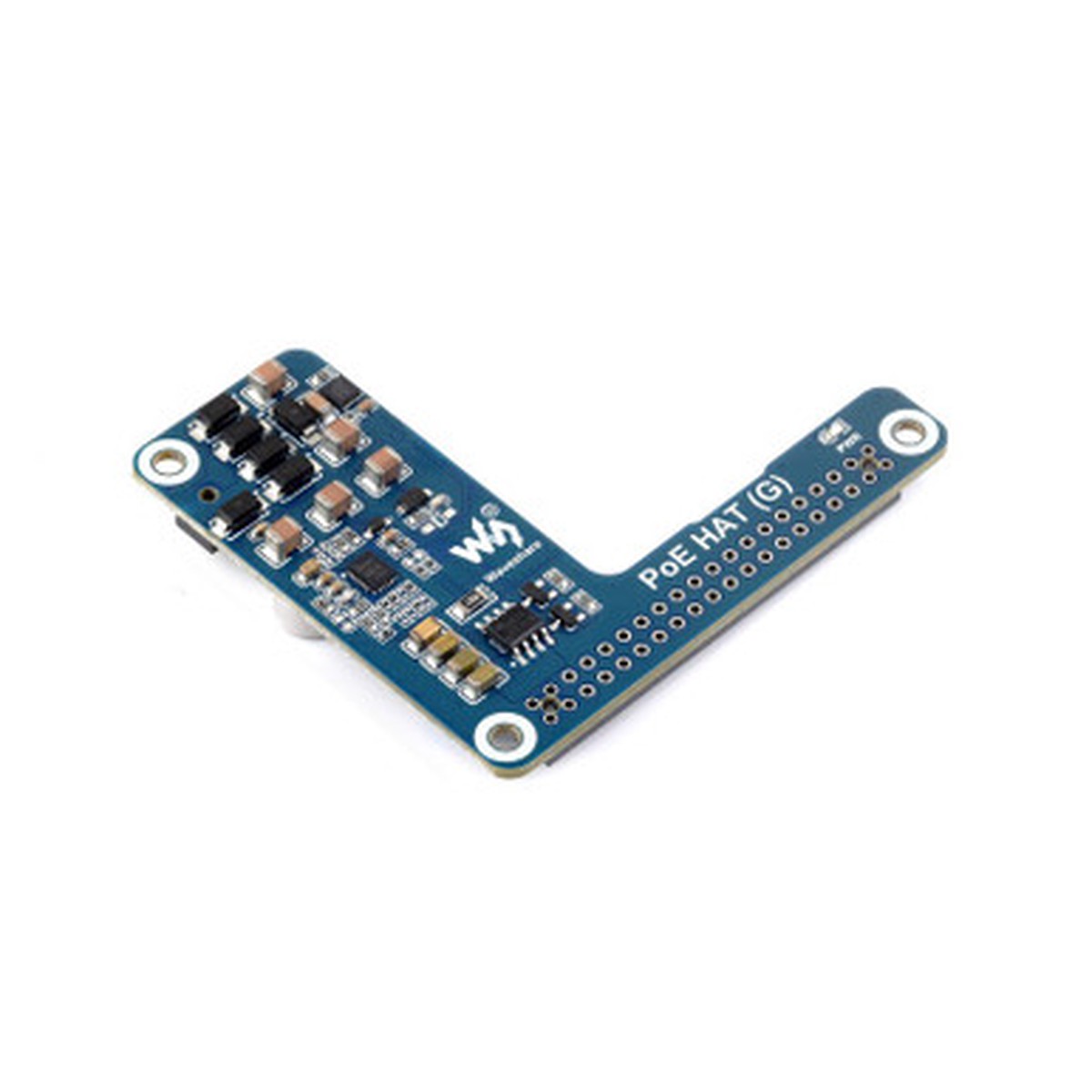

POE HAT (G), Compatible with Raspberry Pi 5 & CM5, 5V 5A Output, 802.3af/at

Description

Description Show Reviews Waveshare27670 -Power Over Ethernet HAT (G), works with Raspberry Pi 5 & CM5, 5V 5A Output, 802.3af/at -PoE HAT (G) The PoE HAT (G) is an IEEE 802.3af/at-compliant POE HAT for Raspberry Pi 5 . By using a router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi using a single Ethernet cable. Compatible with the Raspberry Pi 5 Official Case Features Standard Raspberry Pi 40PIN GPIO header PoE capability, IEEE 802.3af/at-compliant Onboard original IC solution for more stable PoE power performance Adopts a non-isolated switched-mode power supply (SMPS) Compact and easy to assemble Specifications PoE HAT (G) PoE power input 38V ~ 57V DC in Power output GPIO header: 5V 5A (MAX) Dimensions 56.5 64.98mm Network standard IEEE802.3af/at PoE Compatible with the official Raspberry Pi 5 case (not included) Specifications PoE HAT (G) PoE power input 38V ~ 57V DC in Power output GPIO header: 5V 5A (MAX) Dimensions 56.5 64.98mm Network standard IEEE802.3af/at PoE Outline dimensions Resources WIKI: www.waveshare.com/wiki/PoE_HAT_(G) Package Content PoE HAT (G) x1 Standoffs pack x1 0 Reviews Hide Reviews Show Reviews
