Description

Specification:

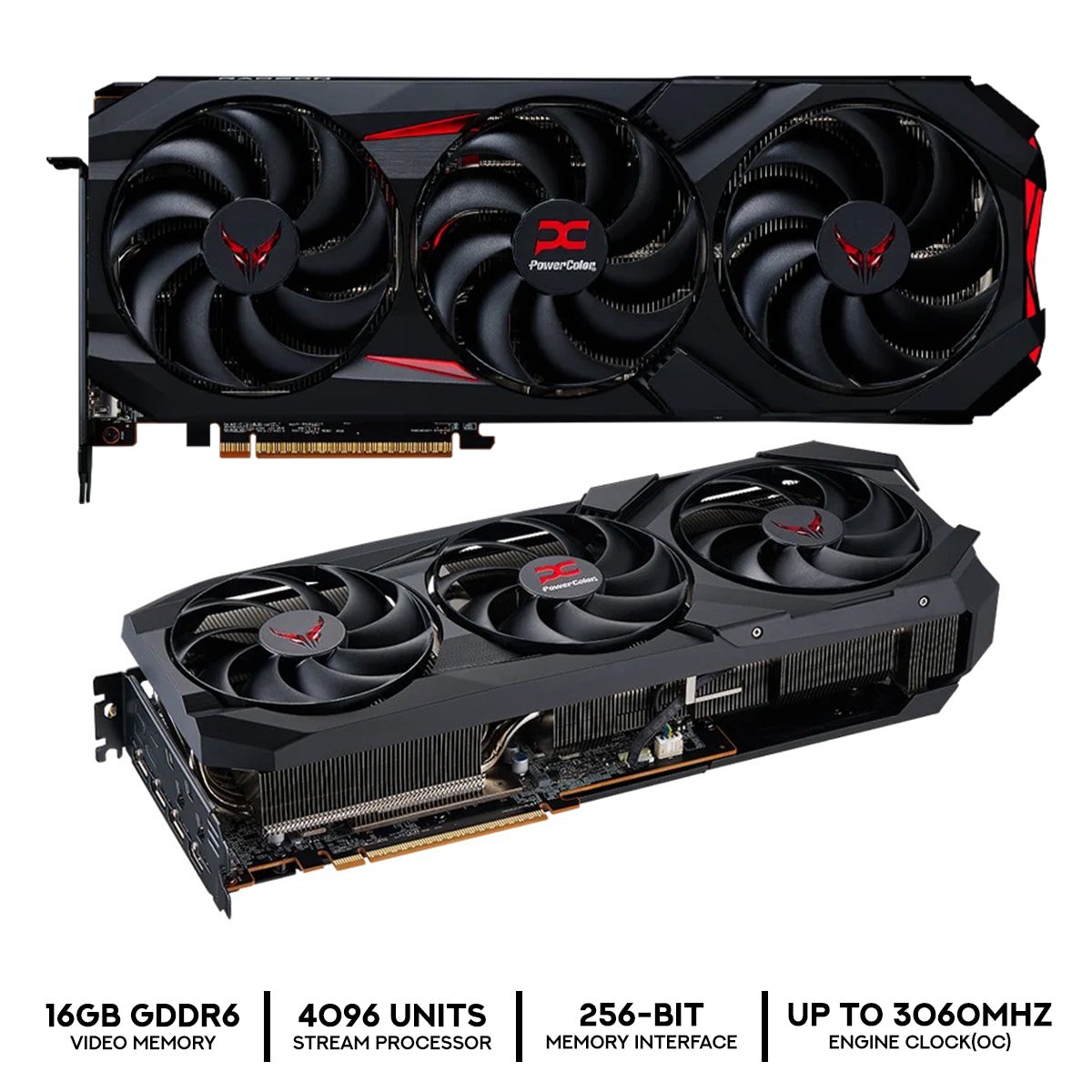

Graphics Engine AMD Radeon RX 9070 XT
Model Name RX9070XT 16G-E/OC/LIMITED
Series Red Devil
Stream Processor 4096 Units
Video Memory 16GB GDDR6
Memory Speed 20.0 Gbps
Memory Interface 256-bit
Engine Clock (OC) up to 2520MHz (Game)
up to 3060MHz (Boost)
Engine Clock (STD/Silent) up to 2460MHz (Game)
up to 3010MHz (Boost)
Bus Standard PCIE 5.0 x16
Standard Display Connectors 1 x HDMI 2.1b, 3 x DisplayPort 2.1a
DirectX Support 12
OpenGL 4.6
AMD Eyefinity Technology Support
AMD Stream Technology Support
AMD Smart Access Memory Support
Maximum Resolution (DisplayPort) 7680 4320
Maximum Resolution (HDMI) 7680 4320
Board Dimensions 340mm 132mm 69mm
352mm 149mm 69mm (with bracket)
Slot 3
Minimum System Power Requirement 900W
Extension Power Connector Three 8-pin PCI Express Power connectors
Remark Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
