Description

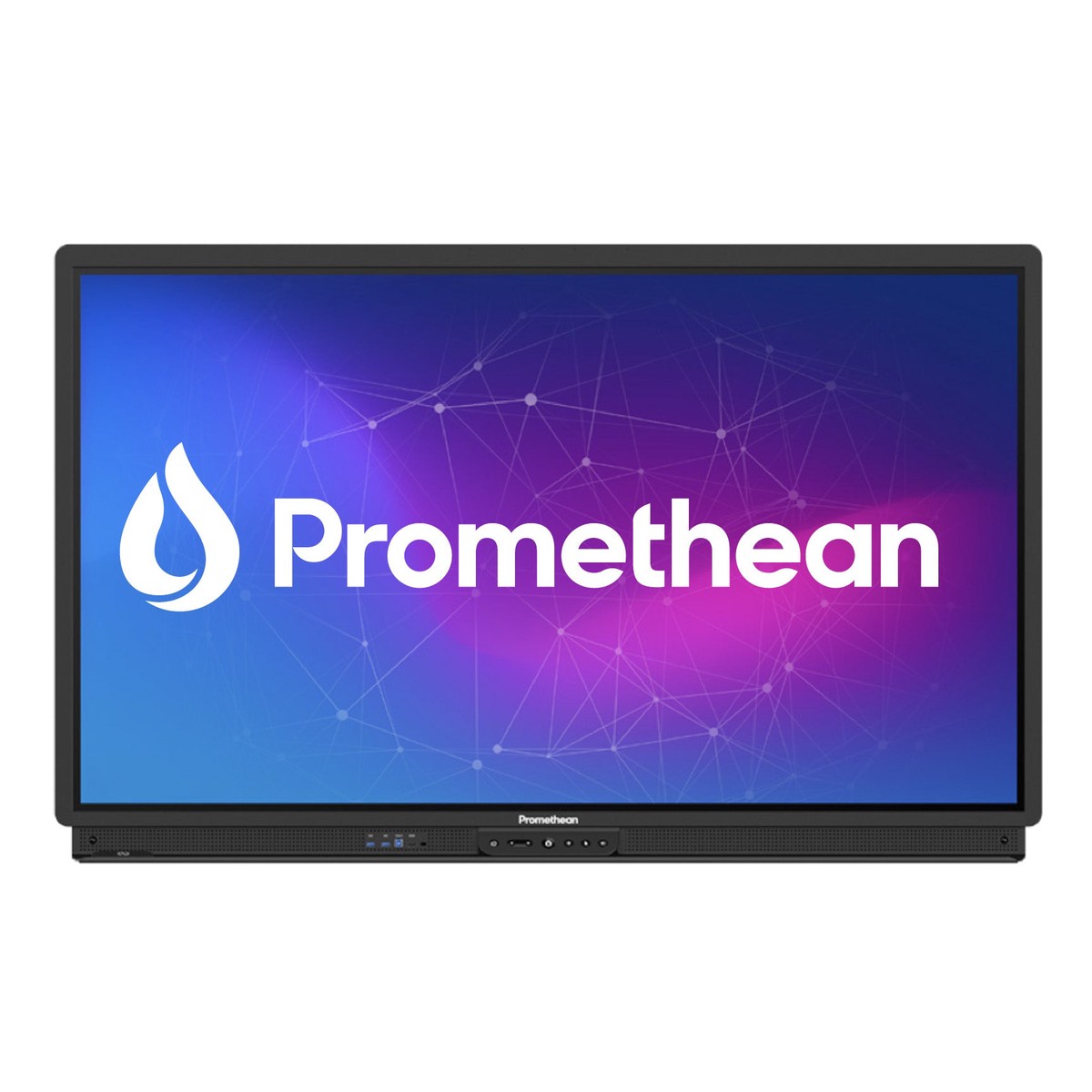

Promethean ActivPanel 9 Premium Interactive Display

ActivPanel 9 Premium

Prometheans next-generation interactive panel delivers our most robust, seamless, and secure user experience yet, offering features that respond to the unique needs of teachers, IT administrators, and school leaders.

ActivPanel 9 Premium

654K 754K 864K

With its easy authentication and secure sign-in options, streamlined connection to your content, flexible lesson delivery systems, and myriad ways to personalize the user experience, ActivPanel 9 Premium offers everything you need to revolutionize how you teach and transform how students learn.

Explain Everything Whiteboard Now included on every ActivPanel 9!

• Create and deliver captivating lessons with one of the most intuitive, easy-to-use, and powerful whiteboard apps available.
• Engage students with a wide variety of content and resources directly from your panel, including customizable templates, Unsplash imagery, YouTube videos, browsers, clipart, and more.
• Import multiple file types directly into the whiteboard, where you can enhance and manipulate them in real time.
• Enjoy interoperability with other Promethean ActivPanel 9 apps and tools, such as Spinner, Timer, Screen Capture, and Screen Recording.
• Customize as much content as your students need with infinite space and unlimited slides in each project.
• Create lessons from an Explain Everything web account and transfer them to the Explain Everything Whiteboard using Cloud Connect or with ActivSync (ActivPanel 9 Premium only).

Includes: 4 x Pens, 2 x NFC cards, VESA Mount, WIFI Module & Cable pack.

Technical Specifications:

DISPLAY
Screen Size and Resolution 65″ 4K; UHD (3840 x 2160 @ 60 Hz)
75″ 4K; UHD (3840 x 2160 @ 60 Hz)
86″ 4K; UHD (3840 x 2160 @ 60 Hz)
Screen Type TFT LCD (Direct LED Backlight)
Blue Light Reduction Yes
Bonded Glass Yes
Aspect Ratio 16:9
Display Area 65″ 4K: 1429 x 804 mm (56.3 x 31.7 in)
75″ 4K: 1652 x 930 mm (65 x 36.6 in)
86″ 4K: 1895 x 1066 mm (74.6 x 41.9 in)
Display Colors 1.07 Billion (10-bit)
LCD Viewing Angle 178
LCD Response Time 8 ms
LCD Refresh Rate (Panel) 60 Hz
LCD Brightness (Brightness of display
before cover glass)
455 cd/m
LED Lifespan 50,000 hours
Contrast Ratio 5000:1 Dynamic 1200:1 Static
Brightness 400 cd/m2
Ambient Light Sensor Yes
Glass Hardness 9H (pencil) , 7 (Mohs)
Glass Type Heat tempered, Anti-Glare
Glass Thickness 4 mm
INTERACTIVITY
Vellum Touch Technology Yes
Continuous Touch Points 20
Touch Resolution 32768 x 32768 px
Response Time5 ms
Touch Accuracy 1 mm
Tracking Rate 4 m/s
Scan Rate 200 Hz
Gestures and Edge Swipes Windows supported
Eraser Included (Block Eraser) Yes
Unique Pen IDs 2
Pen and Touch Differentiation Yes
Palm Erase Yes
Palm Rejection Yes, writing and non-writing hand
Pens Included Yes, 4
Pen Type Battery-less pen
Pen Holder Integrated full-length pen tray
Pen Tip Diameter 3 mm (Eraser 7 mm)
Classroom Essential Apps Including Whiteboard, Annotate, Timer,
Spinner, Screen Capture, Screen Share,
Browser, PDF Reader, Media Player
Compatibility Windows 7 to 11; Mac OS 10.8 to 10.11;
macOS Sierra 10.12.1 or later;
Linux Ubuntu 20.04 LTS; Chrome OS
COMPUTING
Operating System ActivPanel OS
RAM 6.5 GB
Internal Storage 64 GB
CPU ARM CORTEX – A73 x 4
GPU ARM Mali-G52 2EE MC2
ActivSync Yes
Trusted Platform Module Yes
Cloud Based User Profiles Yes
AUDIO
Dual Front-facing Speakers 2 x 18 W
Subwoofer 1 x 15 W
Microphone Array Yes
CONNECTIVITY
OPS Slot 1
HDMI In (Rear) 2 (1 x 2.0, 1 x 2.1)
HDMI In (Front) 1 (2.0)
Display Port 1 (1.2)
USB-A 2.0 (Rear) 1
USB-C 3.2 Gen 1 (Rear) 1 (100 W Power Delivery)
USB-B 3.2 Gen 1 (Touch, Front) 1
USB-B 3.2 Gen 1 (Touch, Rear) 3
USB-A 3.2 Gen 1 (Front) 2
USB-A 3.2 Gen 1 (Rear) 2
MicroSD Slot Yes
LAN In (RJ45) 1 Gbps
LAN Out (RJ45) 1 Gbps
Wake-on-LAN Yes
Wi-Fi (Client) IEEE 802.11 a/b/g/n/ac/ax,
Wi-Fi 6 and dual band supported
Bluetooth 5.0
HDMI Out 1 (2.0)
VGA In 1
PC Audio (3.5 mm) 1
AV-In (3.5 mm) 1
Mic (3.5 mm) 1
Audio Out (3.5 mm) 1
RS-232 1
Proximity Sensor for Warm Boot Yes
NFC (Near-field Communication) Yes
PANEL MANAGEMENT
OTA Updates Yes
Promethean Panel Management Yes
POWER
Power Requirements 100 V – 240 V AC
Energy Consumption (Typical) 65″: 111 W
75″: 163 W
86″: 194W
Power Consumption (Standby) <= 0.5 W
Ultra-Quiet Fanless Design Yes
ENVIRONMENTAL
Operating Temperature 0 C to 40 C (32 F to 104 F)
Storage Temperature -15 C to 55 C (-5 F to 131 F)
Operating Humidity 20% to 80% non-condensing humidity
Storage Humidity 20% to 90% non-condensing humidity
COMPLIANCE & CERTIFICATION
Regulatory Certifications CE, FCC, IC, UL, CUL, CB, RCM
Energy Star Certified 65″ 4K: Yes
75″ 4K: Yes
86″ 4K: Yes
PHYSICAL SPECIFICATIONS
Panel Dimensions 65″: 1508 x 945 x 85 mm (59.4 x 37.2 x 3.3 in)
75″: 1730 x 1070 x 86 mm (68.1 x 42.1 x 3.4 in)
86″: 1974 x 1207 x 86 mm (77.7 x 47.5 x 3.4 in)
Packed Dimensions 65″: 1655 x 1035 x 225 mm (65.2 x 40.7 x 8.9 in)
75″: 1870 x 1175 x 225 mm (73.6 x 46.2 x 8.9 in)
86″: 2125 x 1295 x 260 mm (83.7 x 51 x 10.2 in)
Panel Net Weight 65″: 44.5 kg (98.1 lb)
75″: 57.8 kg (127.4 lb)
86″: 73.3 kg (161.6 lb)
Packed Weight 65″: 61.5 kg (135.6 lb)
75″: 78.5 kg (173.1 lb)
86″: 95.7 kg (211 lb)
Wall Mount Dimensions 1010 x 720 x 52 mm (39.8 x 28.3 x 2.0 in)
VESA Mount Point 65″: 600 x 400 mm (23.6 x 15.7 in)
75″: 800 x 400 mm (31.5 x 15.7 in)
86″: 800 x 600 mm (31.5 x 23.6 in)
EDUCATION SOFTWARE LICENSE
ActivInspire Professional
Single User
Included
PACKED CONTENTS
Whats in the Box 1x ActivPanel 9 Premium
1x 3 m Length HDMI Cable
1x 3 m Length USB Cable (A-B)
1x 3 m Regional Power Cable
1x 2 m Length USB-C Cable
1x Remote Control
2x Batteries for Remote
4x Pens
1x Block Eraser
1x Sealed Antistatic Bag
8x Desiccant
4x VESA Mount Screws (M6)
1x Mini PC Bracket with Screws (x2)
2x NFC Cards
1x Quick Install Guide
1x Promethean Wi-Fi/Bluetooth Module
3x Antennae
1x Wi-Fi/Bluetooth Module User Guide
1x Wall Mount
2x Cable Management Hooks – 65″ & 75″
3x Cable Management Hooks – 86″
