RAM Double Ball Mount with Two Large Round Plates – D Size Medium | RAM-D-101U

Description

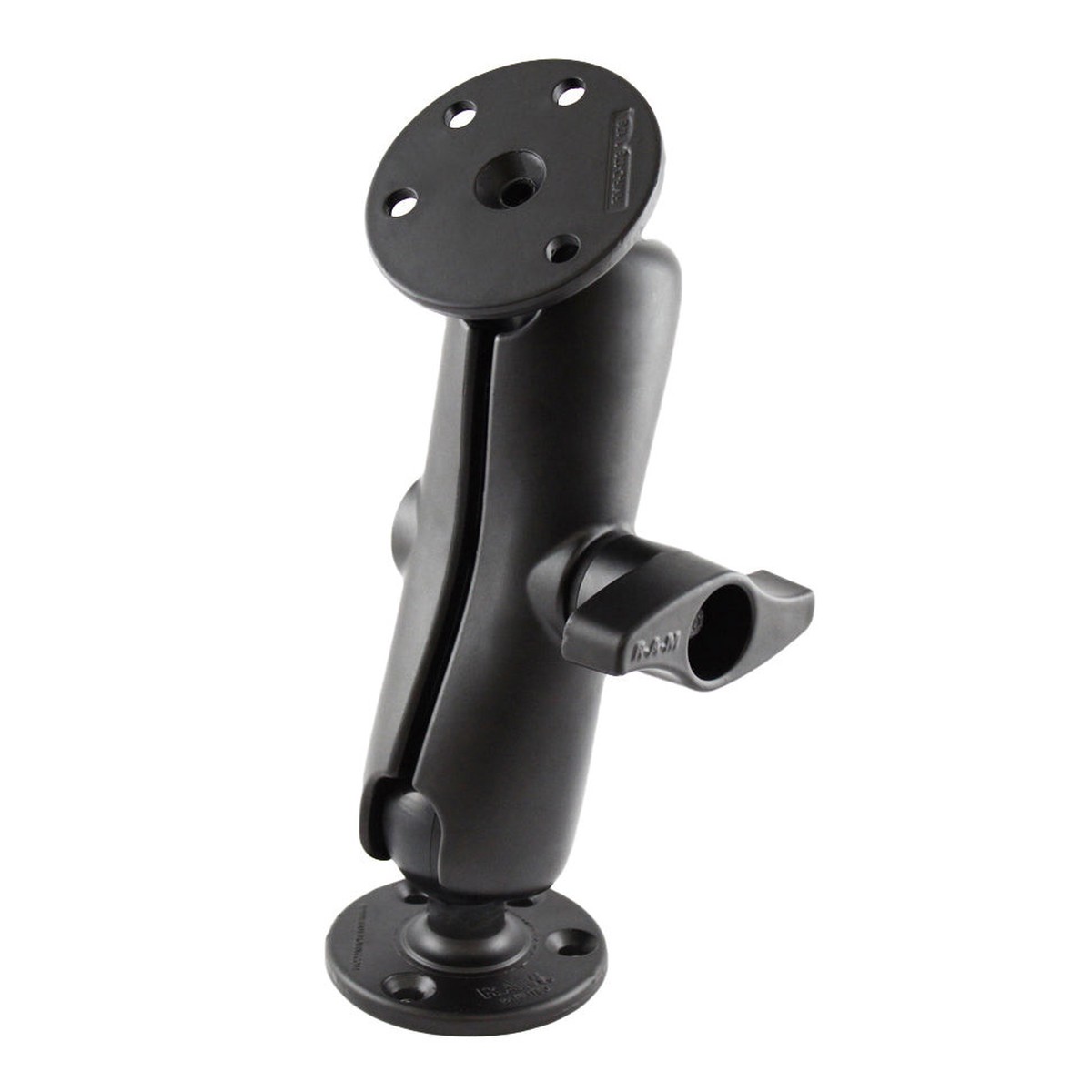

The RAM-D-101U consists of (2 qty) 3.68″ diameter round bases and STANDARD length double socket arm. The 3.68″ diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.PRODUCT DIMENSIONSOverall Height: 11.125″SOCKET TO SOCKET LENGTH6.88″HOLE PATTERNSee DrawingPLATE SIZE3.68″ DiameterBALL SIZED Size (2.25″)WEIGHT CAPACITYStandard Use: 6 lbsHeavy-Duty Use: 5 lbsMATERIALSMarine-grade aluminumPACKAGING TYPEPoly BagWEIGHT3.95 lbDOCUMENTSDrawing File – Large Round Ball Plate
