RAM U-Bolt Mount for Brother PocketJet Series – Medium | RAM-VPR-101-1

Description

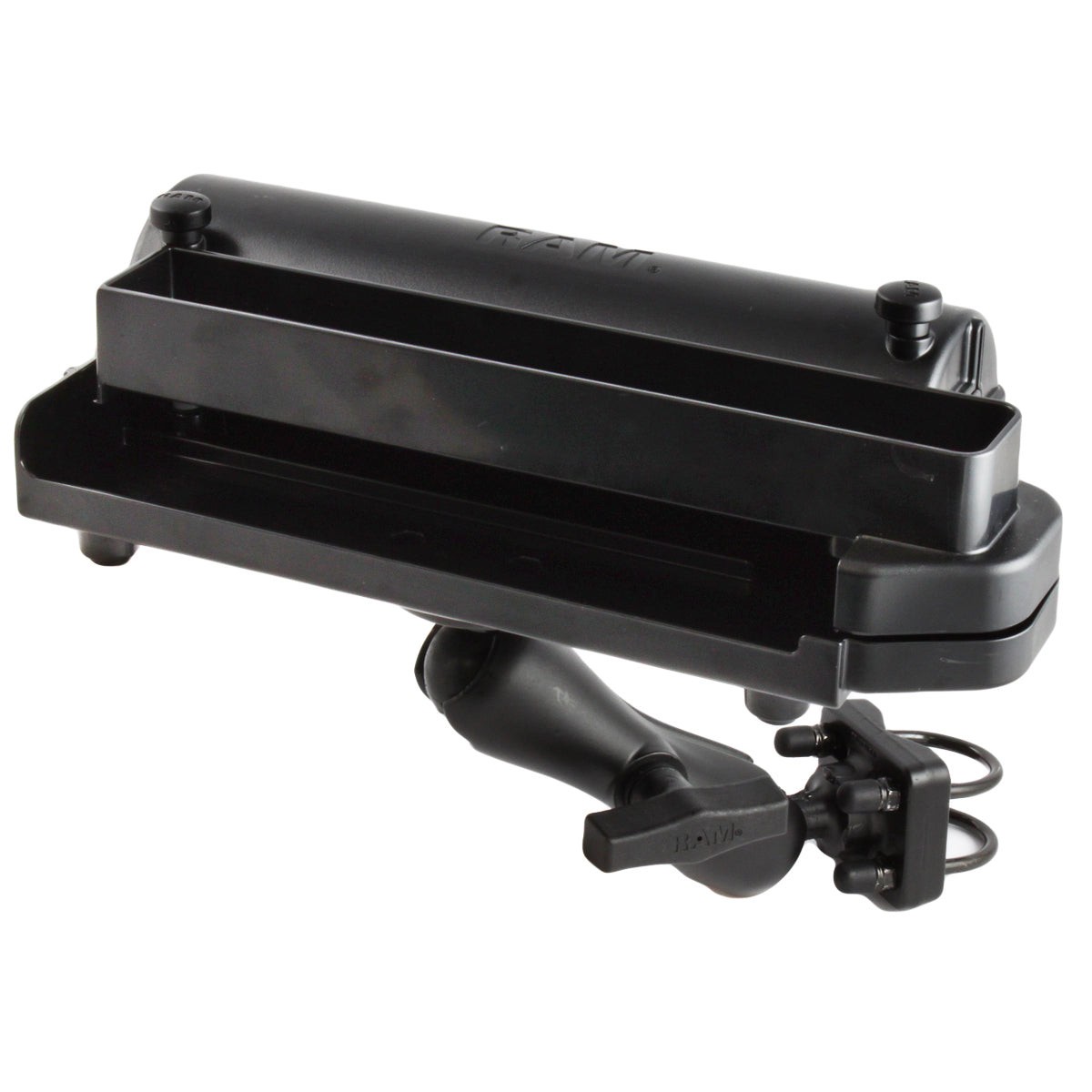

The RAM-VPR-101-1 is designed to hold BrotherPocketJetSeries portable printers, as well as the Printek Interceptor 80 Series. The cradle uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM Tele-Poleand other poles with a diameter from 1.25″ to 1.88″.HARDWARE INCLUDEDAssembly Hardware(2) 1/4″-20 U-Bolts for 1.25″ – 1.5″ Rails(4) 1/4″-20 Nylock Nuts(4) Rubber CapsCLAMP RANGE1.25″ – 1.5″ diameterSOCKET TO SOCKET LENGTH4.66″BALL SIZEC Size (1.5″)WEIGHT CAPACITYStandard Use: 4 lbsHeavy-Duty Use: 3 lbsMATERIALSMarine-grade aluminumHigh strength compositePACKAGING TYPEPoly BagWEIGHT2.4 lbDOCUMENTSOn Road Catalog
