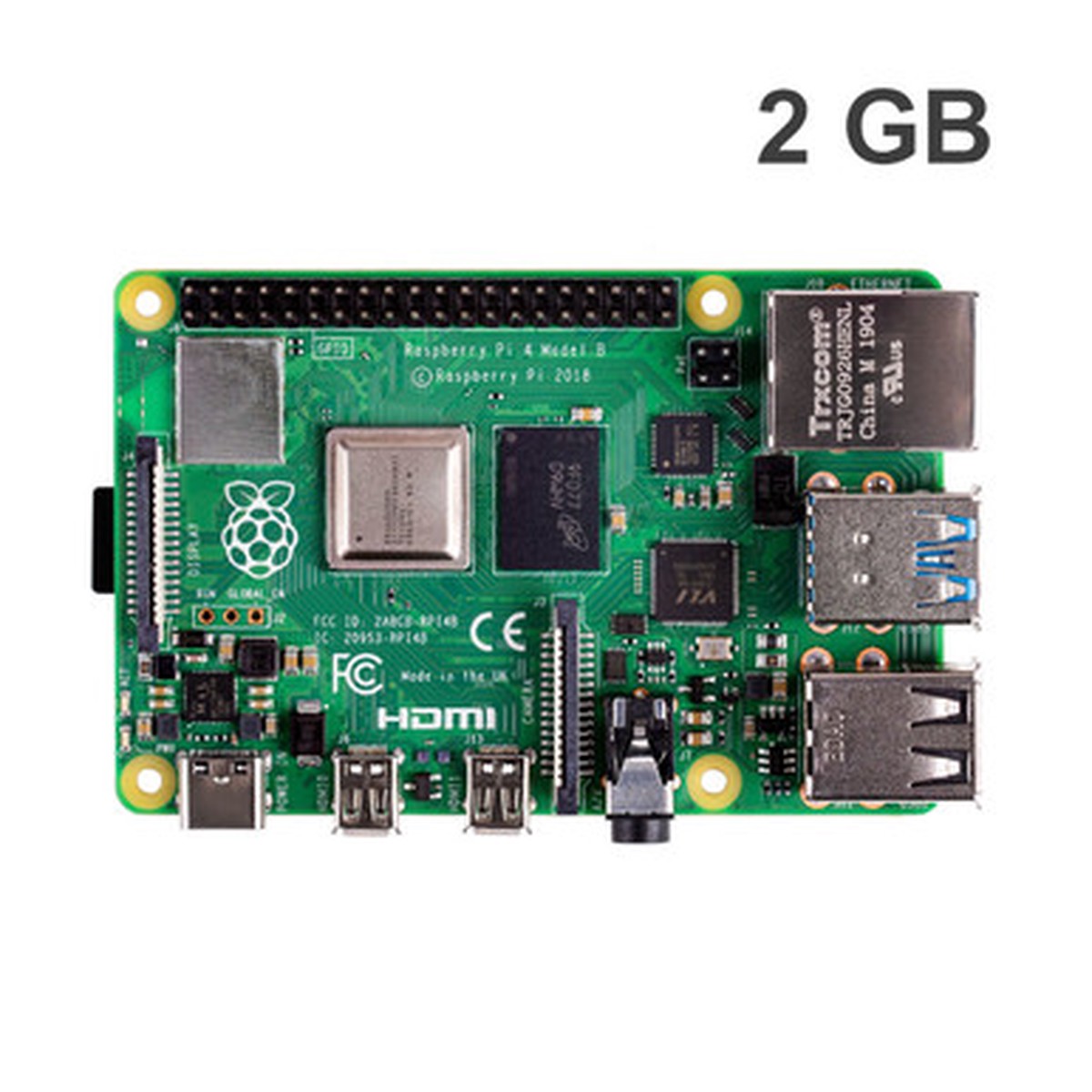

Raspberry Pi 4 Model B/2GB

Description

Description Show Reviews Raspberry Pi 4 Model B 2GB-SC0193 Raspberry Pi 4 Model B (2GB) remains a solid and cost-effective choice for educational projects and commercial applications. With its 64-bit quad-core processor at 1.8 GHz, dual-band WiFi, Bluetooth 5.0, Gigabit Ethernet, and PoE support via a separate PoE HAT ., its well-suited for teaching environments, prototyping, and embedded systems where reliability and value matter. Looking for the latest Raspberry Pi? You can find the new RPi generation on our Raspberry Pi 5 boards and accessories page Specifications Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz 2GB LPDDR4-3200 SDRAM 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE Gigabit Ethernet 2 USB 3.0 ports; 2 USB 2.0 ports. Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards) 2x micro-HDMI ports (up to 4kp60 supported) 2-lane MIPI DSI display port 2-lane MIPI CSI camera port 4-pole stereo audio and composite video port H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode) OpenGL ES 3.1, Vulkan 1.0 Micro-SD card slot for loading the operating system and data storage 5V DC via USB-C connector (minimum 3A*) 5V DC via GPIO header (minimum 3A*) Power over Ethernet (PoE) enabled (requires separate PoE HAT ) Operating temperature: 0 – 50 degrees C ambient * A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total. Documents Raspberry Pi 4 Model B product brief Raspberry Pi 4 Model B schematic diagrams Raspberry Pi 4 Model B mechanical drawing Documentation including hardware and configuration Notices All product change notices (PCNs) for Raspberry Pi 4 Model B can be found here . Obsolescence Statement Raspberry Pi 4 Model B will remain in production until at least January,2034. 2 Reviews Hide Reviews Show Reviews 5 Shipped quickly and received Rev 1.2 board Posted by Jeremiah on Jul 11th 2020 Jul 11th 2020 Bought the 2GB model to play around with and learn at home and I’ve been extremely happy with it. It’s a great product, was shipped quickly and was packaged well, and pishop’s pricing is competitive with other vendors. The board itself has worked as expected, I would suggest you get a heatsink or case to manage the heat coming off the CPU.
