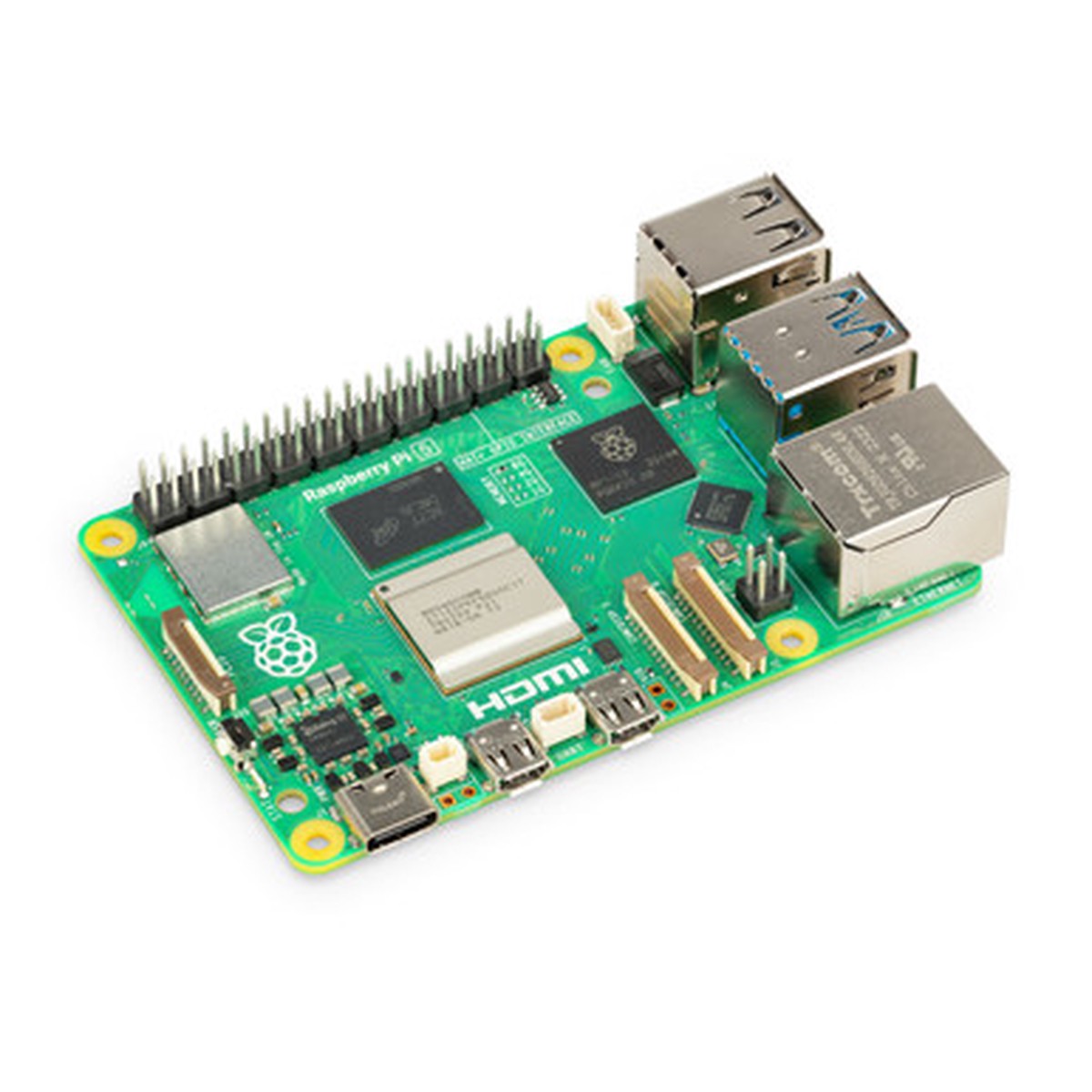

Raspberry Pi 5/2GB

Description

Description Show Reviews Raspberry Pi 5 2GB- SC1110 – The everything computer. Optimized. The new Raspberry Pi 5 board features a quad-core 2.4 GHz ARM Cortex-A76 CPU and VideoCore VII GPU, capable of driving dual 4Kp60 displays. It introduces a PCIe 2.0 x1 interface, plus doubled USB and SD card bandwidth, with re-engineered MIPI lanes for faster storage, displays, and cameras. Powered by the RP1 southbridge, the latest board runs smoothly as both a desktop replacement and an embedded controller. Redesigned camera and display connectors provide higher bandwidth, making this board ready for next-generation projects in AI, automation, and high-resolution media. Need more RAM? RPi 5 with 16GB is now available. CAUTION: The Pi 5 requires new camera cables and display cables . Older Pi 4 cables are not compatible. Key Upgrades Quad-core 2.4 GHz Arm Cortex-A76 CPU – up to 3 faster than Pi 4 800 MHz VideoCore VII GPU – dual 4Kp60 HDMI output New image signal processor – sharper camera performance RP1 I/O controller – USB 3.2, doubled SD speeds (SDR104) High-bandwidth MIPI lanes – supports two cameras or two displays PCIe 2.0 lane – expand with high-speed peripherals Specifications Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2 Dual 4Kp60 HDMI display output with HDR support 4Kp60 HEVC decoder LPDDR4X-4267 SDRAM 2GB Dual-band 802.11ac Wi-Fi Bluetooth 5.0 / Bluetooth Low Energy (BLE) microSD card slot, with support for high-speed SDR104 mode 2 USB 3.0 ports, supporting simultaneous 5Gbps operation 2 USB 2.0 ports Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT) 2 4-lane MIPI camera/display transceivers PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter) 5V/5A DC power via USB-C, with Power Delivery support Raspberry Pi standard 40-pin header Real-time clock (RTC), powered from an external battery Power button Resources Raspberry Pi 5 product brief Raspberry Pi 5 mechanical drawing Getting started documentation RP1 peripherals documentation FAQ Will older versions of Raspberry Pi OS work with Raspberry Pi 5? No, it requires the latest Raspberry Pi OS . Older releases arent supported, so youll need to flash a fresh SD card with the current version before booting up. Will mypower supply for Raspberry Pi 4 work with the Pi 5 board? This board draws more power than the Raspberry Pi 4 , and an underpowered supply can cause issues. We recommend a high-quality 5V 5A USB-C power supply. Does Raspberry Pi 5 need active cooling? This new Pi is faster and more powerful than prior-generation Raspberry Pis, and like most general-purpose computers, it will perform best with active cooling. The Raspberry Pi Case for Pi 5 , with its integrated fan, is one option. For configurations with a HAT, we recommend our HighPi Pro 5S Case with theofficial Active Cooler . 1 Review Hide Reviews Show Reviews 5 awesome Posted by Amazing i ran twister os + GD! (2.0) on Jun 14th 2026 Jun 14th 2026 Pretty good can be laggy at times
