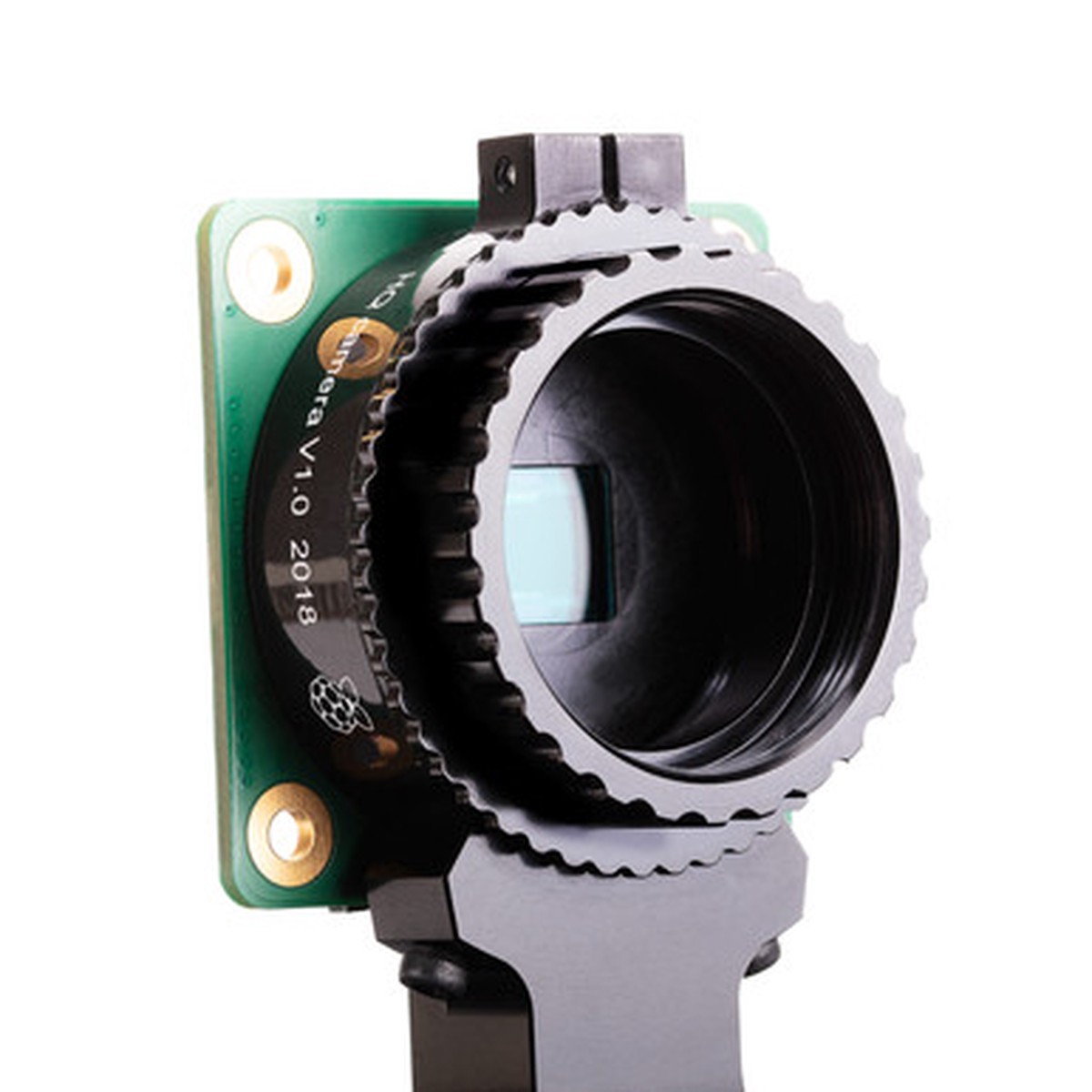

Raspberry Pi HQ Camera CS

Description

Description Videos Show Reviews Please note that this item does NOT function without a compatible C or CS mount lens. The Raspberry Pi High Quality Camera is the latest camera accessory from Raspberry Pi. It offers higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, andis designed to work with interchangeable lenses in both C- and CS-mountform factors. Other lens form factors can be accommodated using third-party lens adapters. The High Quality Camera provides an alternative to the Camera Module v2for industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computerfrom Raspberry Pi 1 Model B onwards, using the latest software release fromwww.raspberrypi.org. Excluding early Raspberry Pi Zero models, which lack the necessary FPC connector. Later Raspberry Pi Zero models require an adapter FPC, sold separately. The package comprises a circuit board carrying a Sony IMX477 sensor,an FPC cable for connection to a Raspberry Pi computer, a milled aluminium lens mount with integrated tripod mount and focus adjustment ring, and a C- to CS-mount adapter. Features 12.3MP high quality camera 7.9mm diagonal image size Up to 12-bit RAW Adjustable back focus Integrated 1/4″-20 tripod mount Compatible with C-mount and CS-mount lenses (adapter included) Compatible with Raspberry Pi 1/2/3/4 boards 200 mm ribbon cable included Specifications Sensor: Sony IMX477R stacked, back-illuminated sensor,12.3 megapixels,7.9 mm sensor diagonal,1.55 m 1.55 m pixel size Output: RAW12/10/8, COMP8 Back focus: Adjustable (12.5 mm22.4 mm) Lens standards: C-mount,CS-mount(C-CS adapter included) IR cut filter: Integrated (Can be removed to enable IR sensitivity. Modification is irreversible.) Ribbon cable length: 200 mm Tripod mount: 1/4-20 Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU Production lifetime: The Raspberry Pi High Quality Camera will remain in production until at least January 2026 Resources Getting started guide Raspberry Pi High Quality Camera documentation Raspberry Pi High Quality Camera – product brief Raspberry Pi High Quality Camera CS Mount mechanical drawing Example fitting instructions for a typical C-mount lens Example fitting instructions for a typical CS-mount lens Raspberry Pi HQ camera board schematics Videos Hide Videos Show Videos NEW Raspberry Pi High Quality Camera 12.3 megapixel Sony IMX477 sensor, 7.9mm diagonal sensor size,… 0 Reviews Hide Reviews Show Reviews
