RP2040-LCD-0.96, MCU Board Based on Raspberry Pi MCU RP2040, Pre-Soldered Header

Description

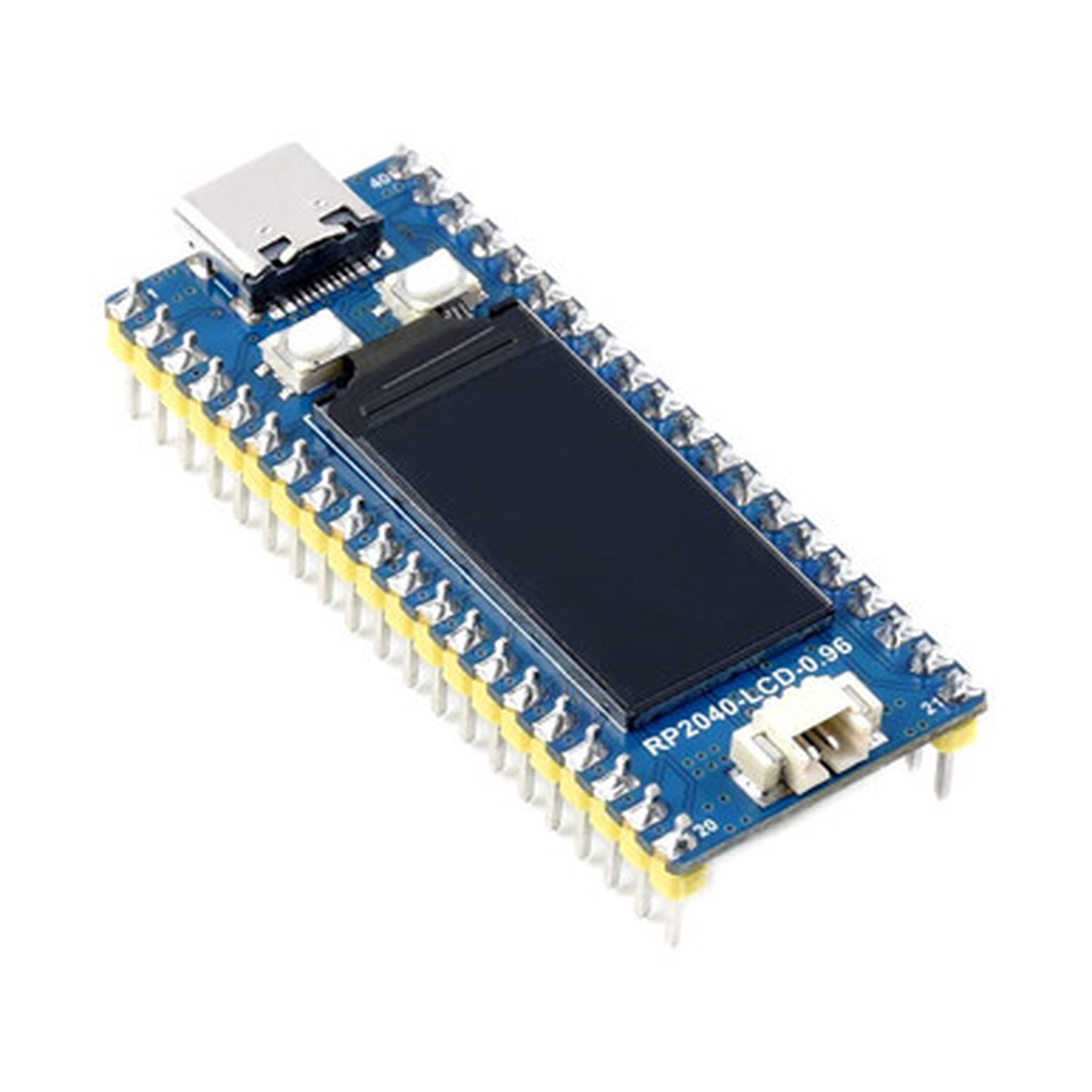

Description Show Reviews Waveshare 20891 -RP2040-LCD-0.96, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040 RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi’s RP2040 microcontroller chip, as same as the one on Raspberry Pi Pico. For software development, either Raspberry Pi’s C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly. In additional, there’re also onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip. Features RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of on-board Flash memory USB-C connector, keeps it up to date, easier to use 0.96inch 16080 pixels 65K colorful IPS LCD display Lithium battery recharge/discharge header, suitable for mobile devices Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components) USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 26 multi-function GPIO pins 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 Programmable I/O (PIO) state machines for custom peripheral support What’s On Board USB Type-C connector BOOT button press it when resetting to enter download mode RESET button 0.96inch IPS LCD display 160 80 pixels, 65K colorful Battery header MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time TPS63000 high efficiency DC-DC buck-boost chip ETA6096 high efficiency Lithium battery recharge manager RP2040 dual-core processor, up to 133MHz operating frequency W25Q16JVUXIQ 2MB NOR-Flash DEBUG points Pinout compatible with Raspberry Pi Pico Pinout Definition Outline Dimensions Resources Wiki: RP2040-LCD-0.96 0 Reviews Hide Reviews Show Reviews
