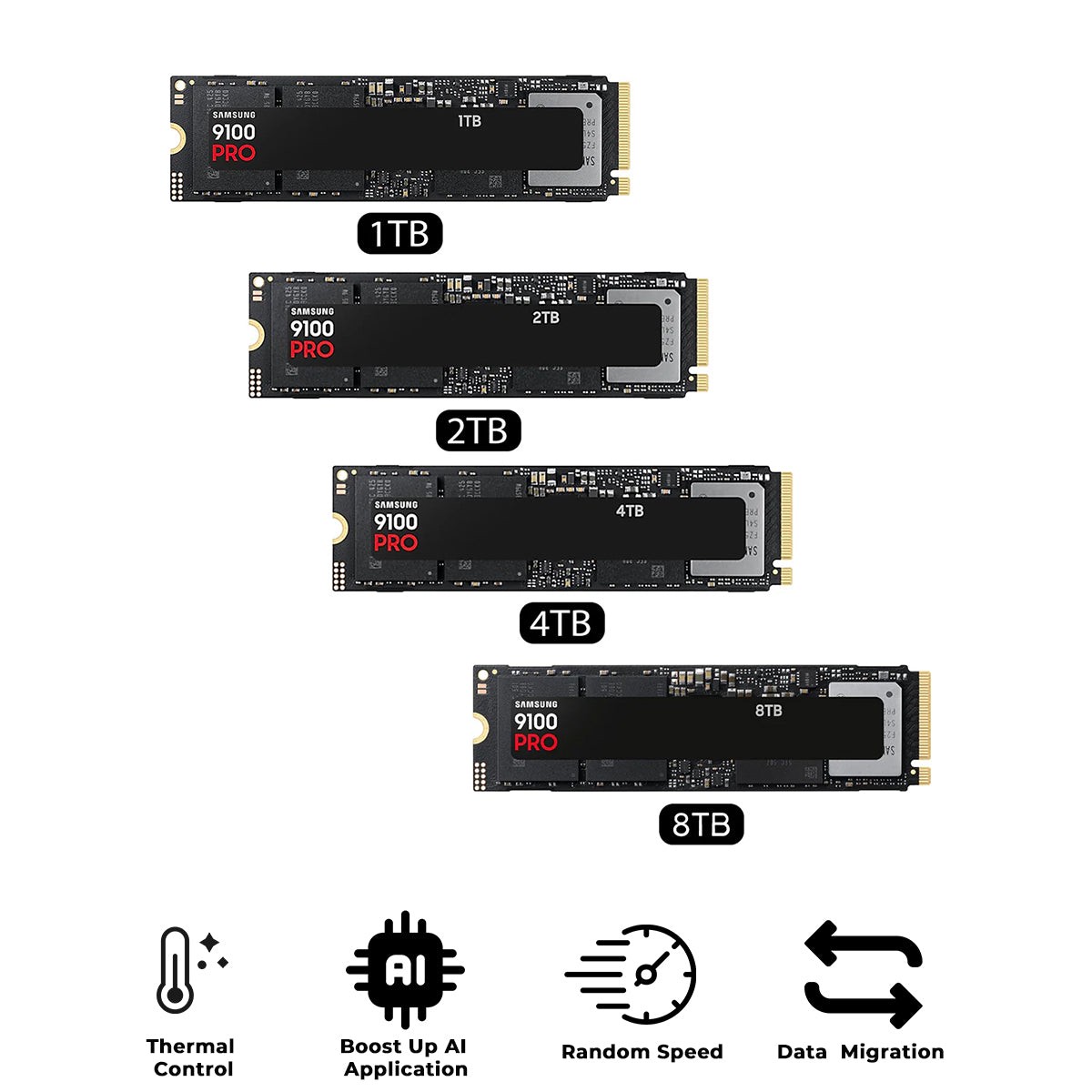

Samsung 9100 Pro PCIe 5.0 x4 NVMe M.2 SSD (1TB, 2TB, 4TB, 8TB)

Interface

PCIe 5.0 x4, NVMe 2.0

Sequential Read

Up to 14,700 MB/s (1TB, 2TB)
Up to 14,800 MB/s (4TB)

* Performance may vary based on system hardware & configuration

Sequential Write

Up to 13,400 MB/s (1TB)
Up to 13,400 MB/s (2TB, 4TB)

* Performance may vary based on system hardware & configuration

Application

Client PCs, Game Consoles

Weight

Max 9.0g Weight

Dimension (Pack: WxHxD)

Max 80.15 x Max 22.15 x Max 2.38 mm

Application

Client PCs, Game Consoles

Rated Capacity

1,000GB (1GB=1 Billion byte by IDEMA) (1TB)
2,000GB (1GB=1 Billion byte by IDEMA) (2TB)
4,000GB (1GB=1 Billion byte by IDEMA) (4TB)

* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

M.2 (2280)

Interface

PCIe 5.0 x4, NVMe 2.0

Dimension (Pack: WxHxD)

Max 80.15 x Max 22.15 x Max 2.38 mm

Weight

Max 9.0g Weight

Storage Memory

Samsung V-NAND TLC

Controller

Samsung in-house Controller

Cache Memory

Samsung 2GB Low Power DDR4X SDRAM

TRIM Support

Supported

S.M.A.R.T Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support

Not supported

Device Sleep Mode Support

Yes

Sequential Read

Up to 14,700 MB/s (1TB, 2TB)
Up to 14,800 MB/s (4TB)

* Performance may vary based on system hardware & configuration

Sequential Write

Up to 13,300 MB/s (1TB)
Up to 13,400 MB/s (2TB, 4TB)

* Performance may vary based on system hardware & configuration

Random Read

Up to 1,850,000 IOPS (1TB, 2TB)
Up to 2,200,000 IOPS (4TB)

* Performance may vary based on system hardware & configuration

Random Write

Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration
