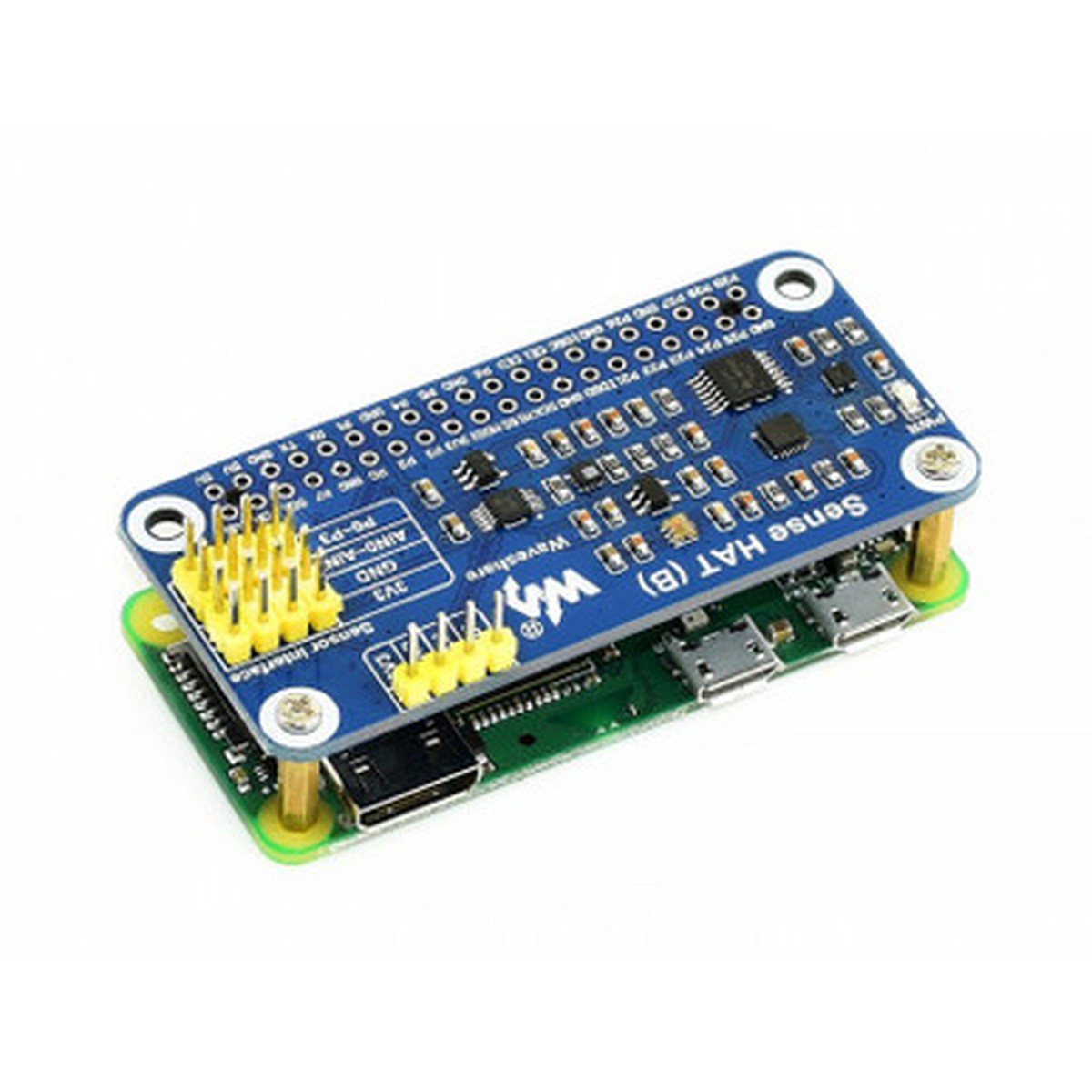

Sense HAT (B) for Raspberry Pi

Description

Description Show Reviews Waveshare 16864 – Sense HAT (B) For Raspberry Pi, Onboard Multi Powerful Sensors, Supports External Sensors – Sense HAT (B) Raspberry Pi and external sensors are NOT included Overview The Sense HAT (B) is specially designed for Raspberry Pi, integrates multi powerful sensors such as gyroscope, accelerometer, magnetometer, barometer, temperature and humidity sensor, etc. It is communicated via I2C interface, and allows to connect more external sensors if you need. Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard ICM20948 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment Onboard LPS22HB barometric pressure sensor, allows monitoring the environment Onboard TCS34725 color sensor, identifies the color of nearby object Onboard ADS1015 ADC, 4-ch 12-bit precision, AD expansion to support more external sensors Brings I2C control pins, for connecting other host boards like STM32 Comes with development resources and manual (examples for Raspberry Pi/STM32) Specifications Operating voltage: 3.3V Communication interface: I2C Logic level: 3.3V Dimensions: 65mm x 30.5mm Comparison Sense HAT (B) Pi Foundation Sense HAT Remarks Gyroscope Ranging: 250/500/1000/2000 dps Resolution: 16-bit Ranging: 245/500/2000 dps Resolution: 16-bit Type (B) provides more angular velocity range option Accelerometer Ranging: 2/4/8/16 g Resolution: 16-bit Ranging: 2/4/8/16 g Resolution: 16-bit Magnetometer Ranging: 49 gauss Resolution: 16-bit Ranging: 4/8/12/16 gauss Resolution: 16-bit Type (B) has wider magnetic range Barometer Ranging: 260 ~ 1260 hPa Accuracy (ordinary temperature): 0.025hPa Speed: 1 Hz – 75 Hz Ranging: 260 ~ 1260 hPa Accuracy (ordinary temperature): 0.1 hPa Speed: 1 Hz – 25 Hz Type (B) measures the barometric pressure more precise and faster Temp & Humidity Accuracy (Humidity): 2% rH Ranging (Humidity): 0% ~ 100% rH Accuracy (Temp): 0.2C Ranging (Temp): -30 ~ 100C Accuracy: 4.5% rH Ranging: 20% ~ 80% rH Accuracy (Temp): 0.5C Ranging (Temp): 15 ~ 40C Type (B) has higher precision and wider range Misc Color Sensor High precision 12-bit ADC 88 RGB LED matrix Five-button joystick Type (B) features color sensor, and supports more external AD sensors Included Sense HAT (B) x1 RPi screws pack (2pcs) x1 2x20PIN female header x1 Weight: 0.019 kg What’s on Board Raspberry Pi GPIO connector : for connecting with Raspberry Pi Sensor Interface : for external sensors I2C extension header : for connecting host boards like Arduino/STM32 ICM-20948 : 9-axis movement sensor SHTC3 : temperature and humidity sensor TCS34725 : color sensor LPS22HB : barometric pressure sensor ADS1015 : 12-bit ADC LSF0204PWR : 4-ch voltage level translator RT9193-18 : 1.8V linear regulator RT9193-33 : 3.3V linear regulator Dimension Resources Wiki : www.waveshare.com/wiki/Sense_HAT_(B) 0 Reviews Hide Reviews Show Reviews
