SparkFun Qwiic pHAT Extension for Raspberry Pi 400 & Pi 500

Description

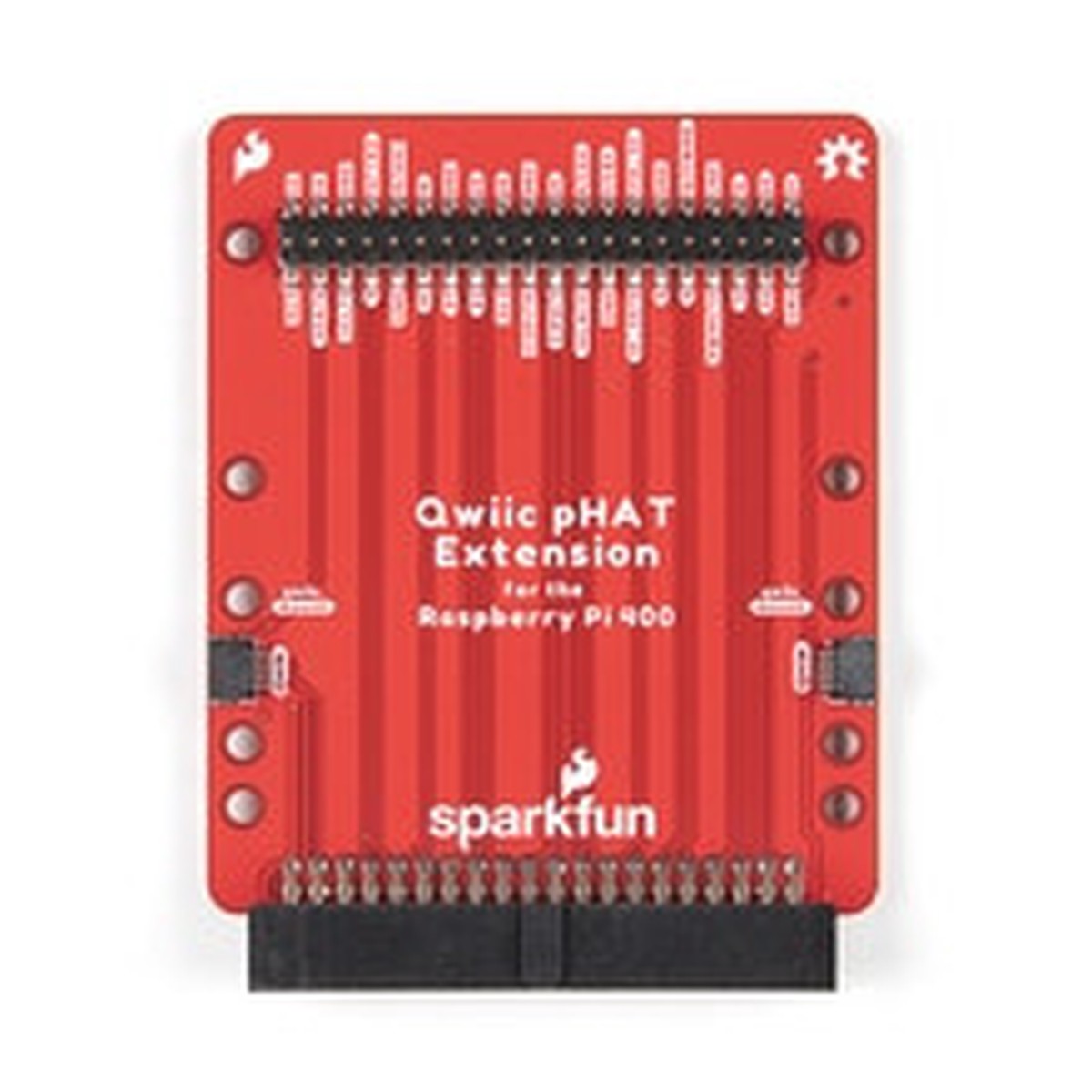

Description Videos Show Reviews The SparkFun Qwiic pHAT Extension for the Raspberry Pi 400 & 500 provides you with a quick and easy solution to access all of the 400’s GPIO, stack your favorite HAT right-side up, or connect a Qwiic-enabled device to the I 2 C bus (GND, 3.3V, SDA, and SCL). Since the Qwiic system allows for daisy-chaining boards with different addresses, you can also stack as many sensors as youd like to the mounting holes on the pHAT to create a tower of sensing power! The Qwiic pHAT Extension connects to the Raspberry Pi 400’s GPIO using a 2×20 right angle header and extends out to the edge of the PCB. Two Qwiic connectors are included on each side of the board for easy access to the I2C bus. A set of large silicone bumpers have also been included for better stability when connecting the Qwiic pHAT Extension to the Raspberry Pi 400’s GPIO port. Note: The Raspberry Pi 400 is NOT included. INCLUDES 1x Qwiic pHAT Extension for Raspberry Pi 400 & Pi 500 4x Tall Silicone Bumpers FEATURES 2x Qwiic Connection Ports 10x Mounting Holes Reroutes and extends a Raspberry Pi 400’s 40-pin headers to a vertical position DOCUMENTS Schematic Eagle Files Board Dimensions Hookup Guide Qwiic Info Page GitHub Hardware Repo Videos Hide Videos Show Videos Product Showcase: Qwiic pHAT Extension Find it here: https://www.sparkfun.com/products/17512 The Sp… 0 Reviews Hide Reviews Show Reviews
