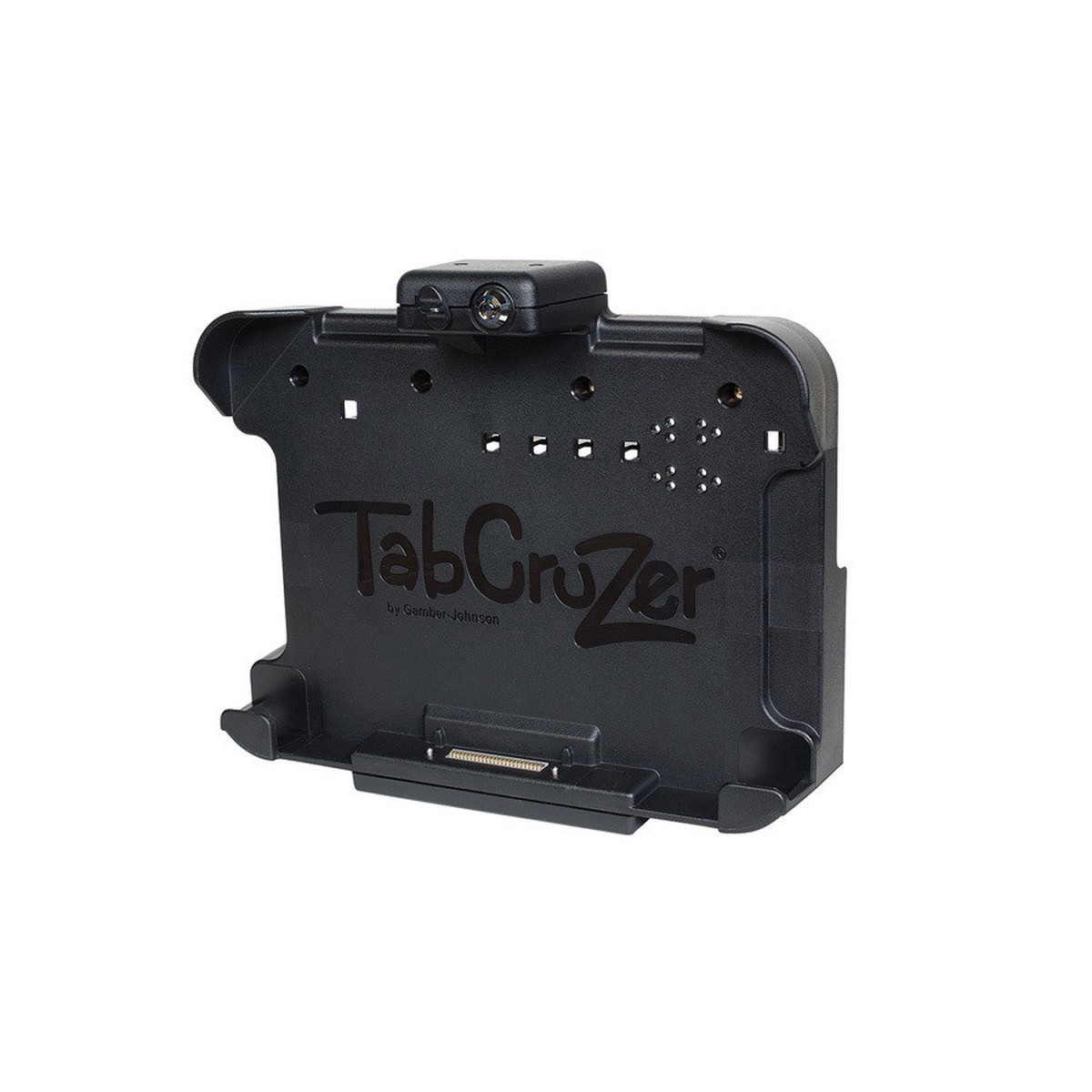

TabCruzer SLIM Vehicle Docking Station for the for the Panasonic Toughpad FZ-G1. No RF, Keyed Alike lock. VESA 75 hole pattern. – 7160-0595-00 | 7160-0595-00

Description

TabCruzer SLIM Vehicle Docking Station for the for the Panasonic Toughpad FZ-G1. No RF, Keyed Alike lock. VESA 75 hole pattern. Gamber-Johnson part number 7160-0595-00.SpecificationsWeight2.5 lbs. / 1.13 kgHeight9.33 in / 23.7 cmWidth11.22 in / 28.5 cmDepth2.56 in / 6.5 cmFeaturesCompatible with the Panasonic TOUGHBOOK FZ-G1 tablet computers with small bumper guards Panasonic certified electronics Docking Station is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle Access to all tablet control buttons and ports while tablet is docked Easy to use one-handed docking and release, Insert bottom of computer into the docking station, push top of computer against latch button to dock computer To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station Upward-facing I/O ports, integrated cable strain relief and cable management system Keyed lock for theft deterrence VESA 75mm mounting pattern Rounded edges to enhance personal safety Gamber-Johnson rugged construction and reliability Composite design for reduced weight and durabilityProduct DetailsDevice OEM: PanasonicWarranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options AvailableModel: TOUGHBOOK G1Power Supply: LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459), LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460), LIND 12-32V Material Handling Isolated Power Adapter (7300-0464), LIND 20-60V Material Handling Isolated Power Adapter (7300-0465), LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)Testing Specifications: TOUGHBOOK Certified, MIL-STD 810G Shock/Vibration Tested, MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational), Cycle Tested: 30K cycles; docking connector, latching & locking mechanisms, RoHS, FCC, CE, C-TICK, UKCA, SAE J1455 Shock Crash Hazard TestPort Replicators: Panasonic certified electronics (1), Ethernet – RJ45 (1), Serial – D-sub 9-pin (1), VGA – D-sub 9 pin (1), HDMI – 19 pin (2), USB 3.0 (900mA) – 9 pin, Dual RF Pass-through (optional) – TNC, Power input – 16VDC, Antenna SwitchAntenna Pass-through: No RFDevice Type: TabletIndustry: Fire/Rescue, Logistics, Material Handling, Public Safety, UtilityPort Replication: FullSub Type 1: DockDownloadsProduct Sheet (PDF)Installation Guide (PDF)Testing Summary (PDF)
