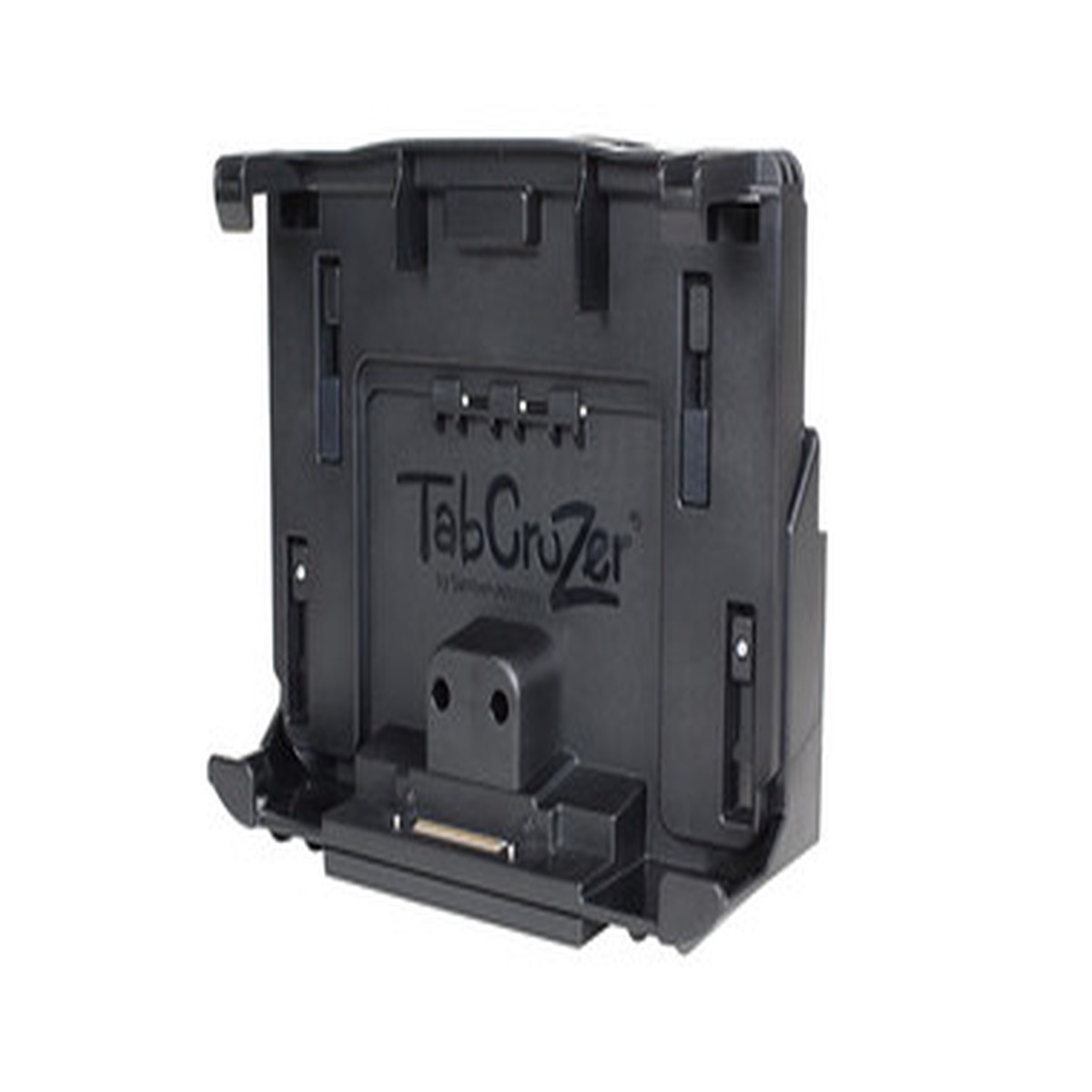

TabCruzer Vehicle Docking Station for the for the Panasonic Toughpad FZ-G1. No RF, Keyed Alike lock. VESA 75 hole pattern. – 7160-0487-00 | 7160-0487-00

Description

TabCruzer Vehicle Docking Station for the for the Panasonic Toughpad FZ-G1. No RF, Keyed Alike lock. VESA 75 hole pattern. Gamber-Johnson part number 7160-0487-00.SpecificationsWeight2.5 lbs / 1.13 kgHeight9.14 in / 23.22 cmWidth11.22 in / 28.5 cmDepth3.8 in / 9.65 cmFeaturesCompatible with the Panasonic TOUGHBOOK G2 and Toughpad FZ-G1 tablet computers with small or large bumper guards Panasonic certified electronics Docking station accommodates the tablet’s extended battery, smart card reader, rear hand strap and large bumper guards. Access to all tablet control buttons and ports while tablet is docked Easy docking and release, Insert computer into the docking station, push top of dock down and engage lock to dock computer Upward-facing I/O ports, integrated cable strain relief and cable management system Keyed lock for theft deterrence VESA 75mm mounting pattern Rounded edges to enhance personal safety Gamber-Johnson rugged construction and reliability Composite design for reduced weight and durabilityProduct DetailsModel: TOUGHBOOK G1, TOUGHBOOK G2Device OEM: PanasonicWarranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options AvailablePower Supply: LIND 12-32V Material Handling Isolated Power Adapter (7300-0464), LIND 20-60V Material Handling Isolated Power Adapter (7300-0465), LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)Testing Specifications: TOUGHBOOK Certified, MIL-STD 810G Shock/Vibration Tested, MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational), Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms, RoHS, FCC, CE, C-TICK, UKCA, SAE J1455 Shock Crash Hazard TestPort Replicators: Panasonic certified electronics (1), Ethernet – RJ45 (1), Serial – D-sub 9-pin (1), VGA – D-sub 9 pin (1), HDMI – 19 pin (2), USB 3.0 (900mA) – 9 pin Dual RF Pass-through (optional) – TNC, Power input – 16VDC, Antenna SwitchAntenna Pass-through: No RFDevice Type: TabletIndustry: Fire/Rescue, Logistics, Material Handling, Public Safety, UtilityPort Replication: FullSub Type 1: DockNotes:Compatible with Panasonic Toughpad FZ-G1 and Toughbook G2 tablet computer with small or larger bumper guards.DownloadsProduct Sheet (PDF)Installation Guide (PDF)Testing Summary (PDF)
