Description

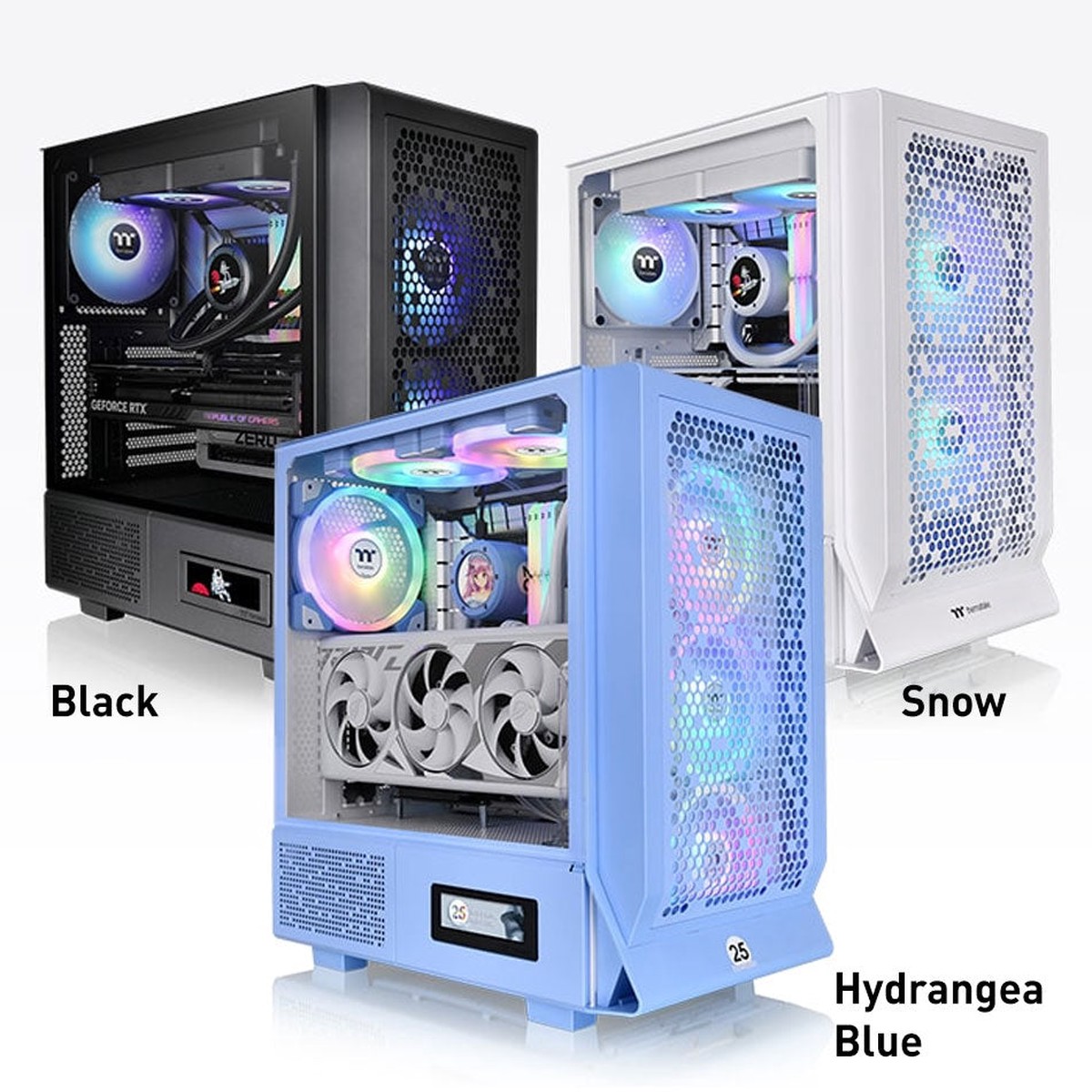

Ceres 330 TG ARGB Mid Tower Chassis is an ATX case that supports both ASUS and MSI Hidden-Connector motherboards (ROG MAXIMUS Z790 HERO BTF, ASUS TUF GAMING Z790-BTF WIFI or MSI Z790 PROJECT ZERO) and comes with two CT140 ARGB Sync PC Cooling Fans pre-installed at the front and one CT140 PC Cooling Fan pre-installed at the rear. More than 55% of its panels are perforated to provide a large amount of airflow and it supports up to a 360mm radiator at the front and a 280mm radiator at the top.

SPECIFICATION

SERIES Ceres
MODEL Ceres 330 TG ARGB
CASE TYPE Mid Tower
DIMENSION (H X W X D) 475 x 245 x 463 mm (18.7 x 9.65 x 18.23 inch)
NET WEIGHT 7.8 kg / 17.2 lbs.
PANEL 4mm Tempered Glass x 1
COLOR Black/Snow/Hydrangea Blue
MATERIAL SPCC
COOLING SYSTEM Front(intake):
140 x 140 x 25 mm CT140 ARGB white fan (1500rpm, 30.5 dBA) x 2

Rear(exhaust):
140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1

DRIVE BAYS 1 x 3.5, 2 x 2.5 or 3 x 2.5
EXPANSION SLOTS 7 (Rotatable Patented Design)
MOTHERBOARDS 6.7″ x 6.7″ (Mini ITX), 9.6″ x 9.6″ (Micro ATX),
12″ x 9.6″ (ATX), 12″ x 13″ (E-ATX)
I/O PORT USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Rear: 1 x 120mm, 1 x 140mm

RADIATOR SUPPORT Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Top:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mmRear: 1 x 120mm

CLEARANCE CPU cooler max height: 185mm

VGA max length:
340mm (with radiator)
370mm (without radiator)

PSU max length: 220mm
