Description

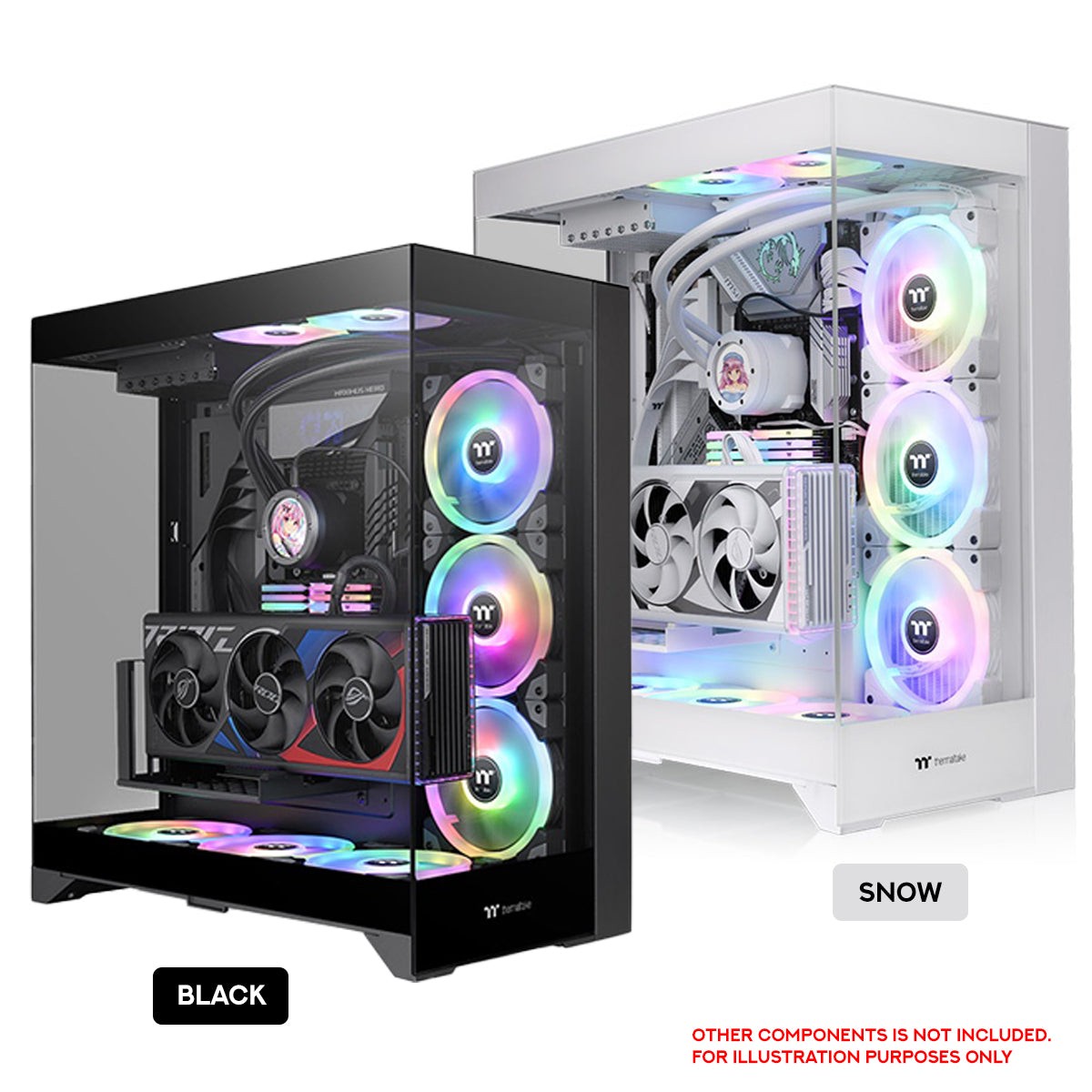

Designed for an exceptional view, The CTE E550 TG is a dual chamber mid-tower chassis with three TG panels that allows users to display components in style. It supports the latest Hidden-Connector motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility.

Specification:

P/N CA-1Z8-00M6WN-00
Series CTE
CASE TYPE Mid Tower
Dimension (H x W x D) 558.5 x 270 x 513mm
(21.99 x 10.63 x 20.2 inch)
NET WEIGHT 14.5 kg / 31.97 lbs.
PANEL 4mm Tempered Glass x 3
Color Snow / Black
MATERIAL SPCC
COOLING SYSTEM 3 x 3.5, 1 x 2.5 or 2 x 3.5, 2 x 2.5
EXPANSION SLOTS 7
MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),
12 x 9.6 (ATX), 12 x 10.5 (E-ATX)
I/O Port USB 3.0 x 2, Type-c x1, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Top:
2 x 120mm, 1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
RADIATOR SUPPORT Top:
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Bottom (DIY only):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
CLEARANCE CPU cooler max height: 166mm
VGA max length: 415mm (with radiator)
443.8mm (without radiator)
PSU max length: 220mm
