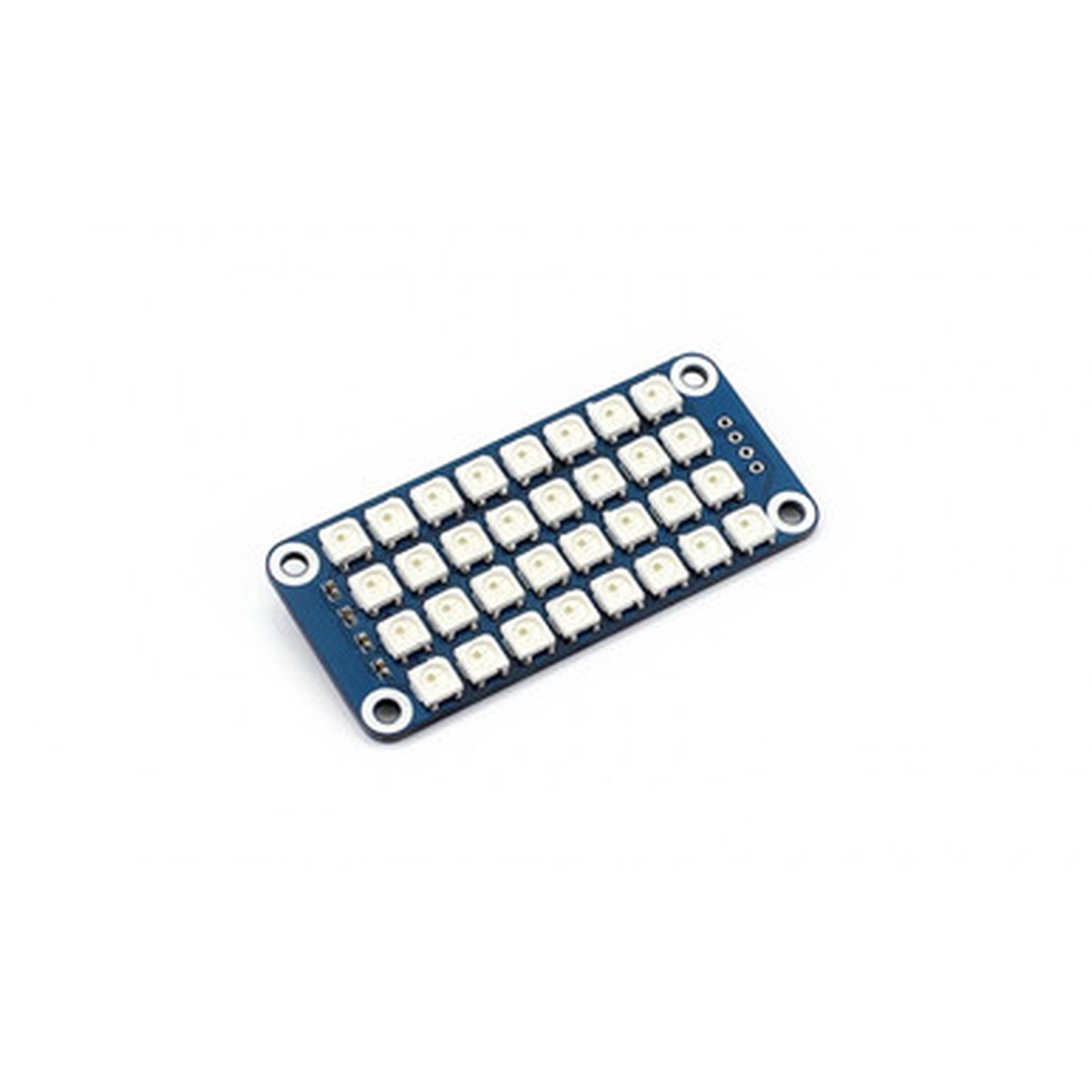

True color RGB LED HAT for Raspberry Pi, colorful display
Original price was: $12.45.$9.96Current price is: $9.96.
Description
Description Show Reviews Waveshare12725 -True color RGB LED HAT for Raspberry Pi, colorful display This RGB LED HAT can be easily attached on top of the Raspberry Pi to display colorful effect, and controlled by only one signal pin. Features Supports any revision of Raspberry Pi (directly-pluggable) Onboard 4 x 8 RGB LED (WS2812B) Control pin is configurable via jumpers (0 resistor) Break out control pins, easy for working with other MCUs Comes with development resources and manual (examples in Python and Web control) Specifications Operating voltage: 5V Brightness: adjustable 256 levels Color depth: 24-bit true color (8-bit for R/G/B respectively, totally 256x256x256=16777216 colors) Data rate: 800Kbps(typ) Dimension: 65mm x 30.2mm Mounting hole size: 3.0mm How to Use In the case of working with a MCU: 5V5V power GNDGND DINSignal input DOUTSignal output (optional) Demo Dimensions Package content Weight: 0.016 kg RGB LED HAT x1 RPi screws pack (2pcs) x1 Development Resources Wiki : www.waveshare.com/wiki/RGB_LED_HAT 0 Reviews Hide Reviews Show Reviews
