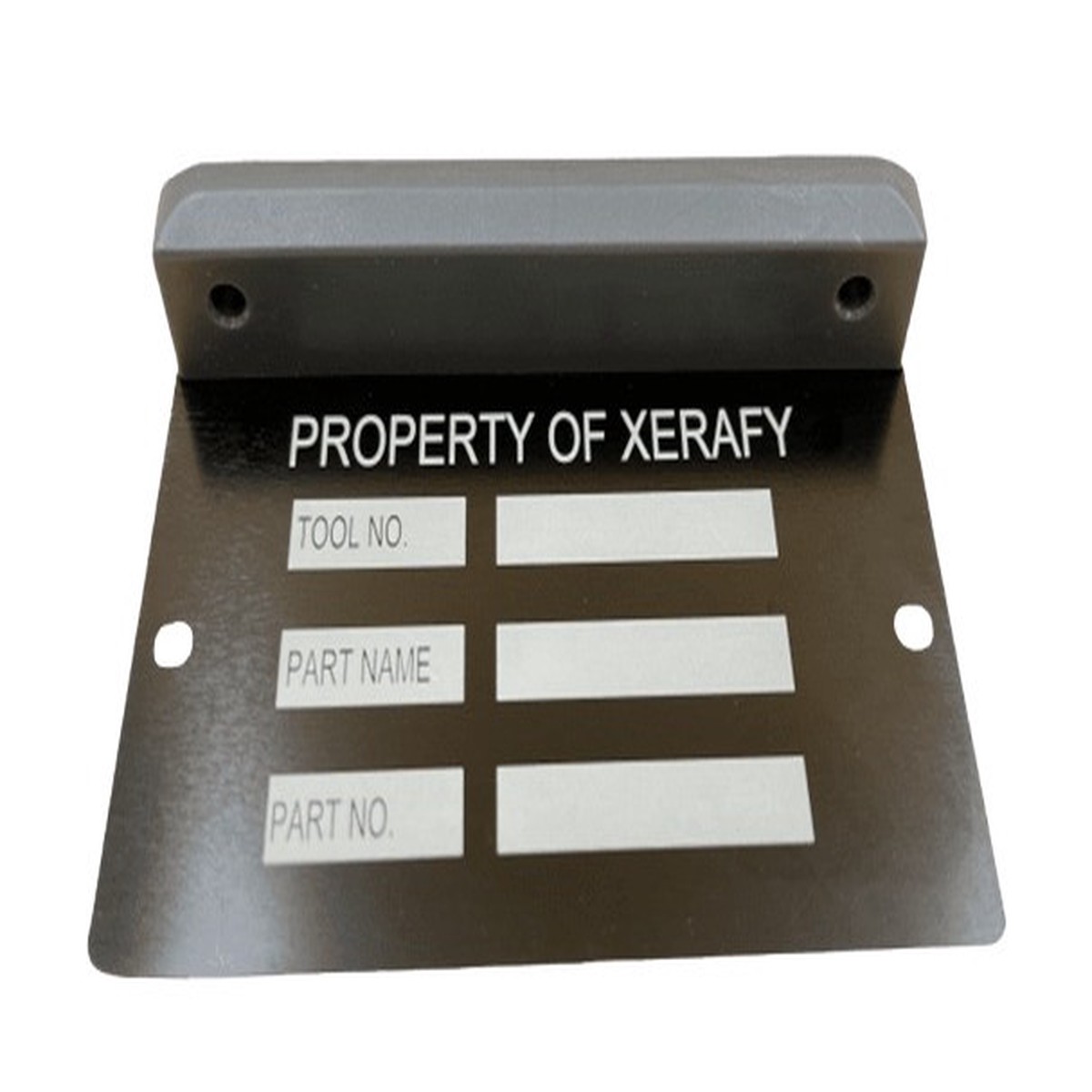

Xerafy XPLATE Aluminum RFID Nameplate – Bulk Order (MOQ 1K Units)

Description

The Xerafy XPLATE is a smart RAIN RFID nameplate for asset tracking and identification. Its proprietary technology ensures multidirectional long-range performance of up to 10 meters on metal, solving read angle issues at height, while its custom metal plate supports various visual markings, providing reliable, all-weather tagging for critical assets.Technical Specifications RF protocol EPC global Class 1 Gen 2 Frequency 902-928 MHz (US); 865-868 MHz (EU) IC type (chip)1 Impinj M750 Chip memory2 96 bits EPC; 96 bits TID; 32 bits user memory Write cycles 10,000 times Data retention 10 years Read range on metal3 Up to 32.81 ft (10 m) Read range off metal3 Up to 19.69 ft (6 m) Polarization Linear Radiation patternKey Features+Multidirectional: wider read angles+10 m read range: read from a distance+Aluminum or stainless metal plate+Customizable: emboss, stamp, print, laser+IP68 rating: waterproofApplications Tooling machinery Manufacturing equipment Shipping container Construction equipment UtilitiesEnvironmental SpecificationsTemperatures Operational -40C to +85C-40F to +185F Survival -40C to +85C (168 hours)-40F to +185F Peak 100C (212F, 100 hours)Chemicals4 24h H2SO4 (10% sulfuric acid) 24h HNO3 (10% nitric acid) 24h H3PO4 (20% phosphoric acid) 24h H2O2 (25% hydrogen peroxide) 24h NaOH (10% sodium hydroxide) IP rating IP68 Compression strength 181 psi (1250 kPa) Shock 3 ft (1 m) to concrete/granite Vibration MIL-STD-810G Warranty 1 year
