Sale!
XYZ Phantom 700W ARGB ATX Power Supply 80+ Bronze Edition (Black) (X-PS-PHANTOM-PBR700) (XYZ-SA-869)
Original price was: $153.44.$76.72Current price is: $76.72.
Description

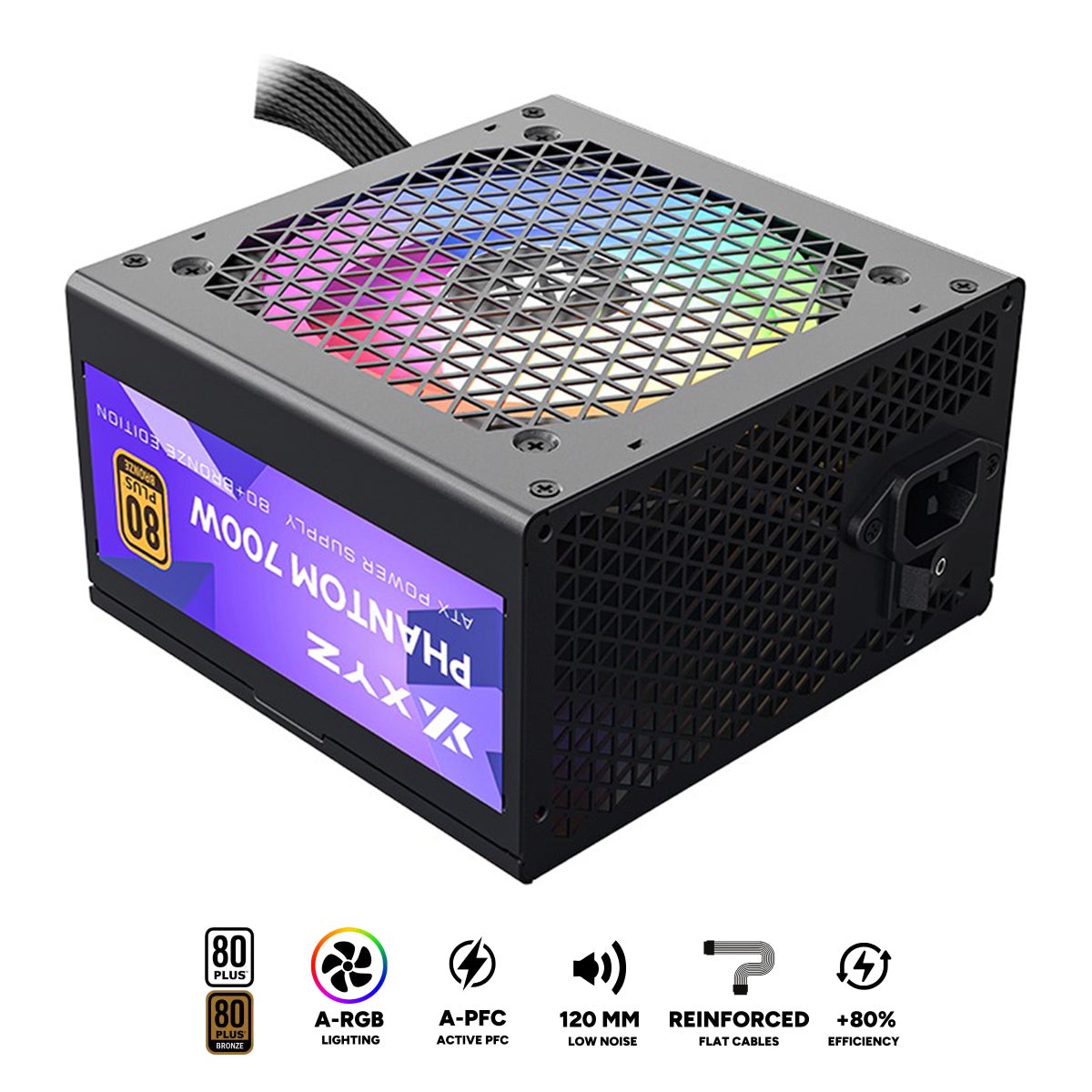

XYZ PHANTOM 700W A-RGB 80+ BRONZE
Illuminate your system with energy efficiency
UnleashthefullpotentialofyoursystemwiththeXYZ PHANTOM 700Wpowersupply.Thishigh-performance PSUdeliversreliableandefficientpower,withasleekdesignand asilentARGB fanthatwilladdatouchofstyletoyourPC.
Efficient Power:The 80 PLUS Bronze certification guarantees up to 82% energy efficiency at 100% load, reducing power consumption and heat generation, contributing to a cooler and quieter operation of your system.
Superior Performance:DC-DC technology provides precise and stable voltage regulation, ensuring reliable operation for your critical components.
Flat Cables:The flat cables make cable management easier and improve airflow inside your PC, keeping everything organized and optimized.
Active PFC:The active power factor correction (Active PFC) improves the power supplys energy efficiency, reduces harmonic distortion, and ensures a stable and reliable power supply.
Silent 120mm A-RGB Fan:Enjoy quiet operation and customizable lighting with the 120mm ARGB fan. Synchronize the lighting effects with your motherboard and other compatible components to create a unique ambiance.
| Technical Specifications | |
|---|---|
| Model | XYZ PHANTOM 700W |
| Wattage | 700W |
| Certification | 80 PLUS Bronze (up to 82% efficiency at 100% load) |
| Technology | DC-DC |
| Form Factor | ATX |
| Fan | 120mm silent ARGB fan |
| Cables | Flat (black) |
| Dimensions | 150 x 140 x 86 mm (L x W x H) |
| AC Input | 100-230VAC, 10-5A, 50-60Hz |
| DC Outputs | |
| +3.3V | 16A |
| +5V | 16A |
| +12V | 54A |
| -12V | 0.3A |
| +5VSB | 3A |
| Combined Maximum Power | 700W |
| Connectors | |
| 1 24 PIN | 650 mm |
| 2 IDE | 550 mm |
| 3 SATA | 550 mm |
| 2 PCIe 6+2 | 650 mm |
| 2 CPU 8 (4+4) | 650 mm |
| Certifications | EAC, CE, CB, FCC |
| MTBF | 100,000 hours |
| Safety Features | OCP, UVP, OVP, SCP, OPP, OTP |
| Operating Temperature | 0-40C @ full load, 10-90% RH |
| Storage Temperature | -20C to 80C, 5-90% RH |
| Operating Altitude | 5000 meters |
| Storage Altitude | 15250 meters |
| Hi-Pot Test | |
| AC 1500V input to ground | 1 second |
| DC 1500V input to output | 1 second |
| DC 500V output to ground | 1 second |
| Grounding Resistance | <0.1 |
| Insulation Resistance | >50M at DC 500V between AC input and ground |
| Avaliable colors | |
| SKU | X-PS-PHANTOM-PBR700 |
