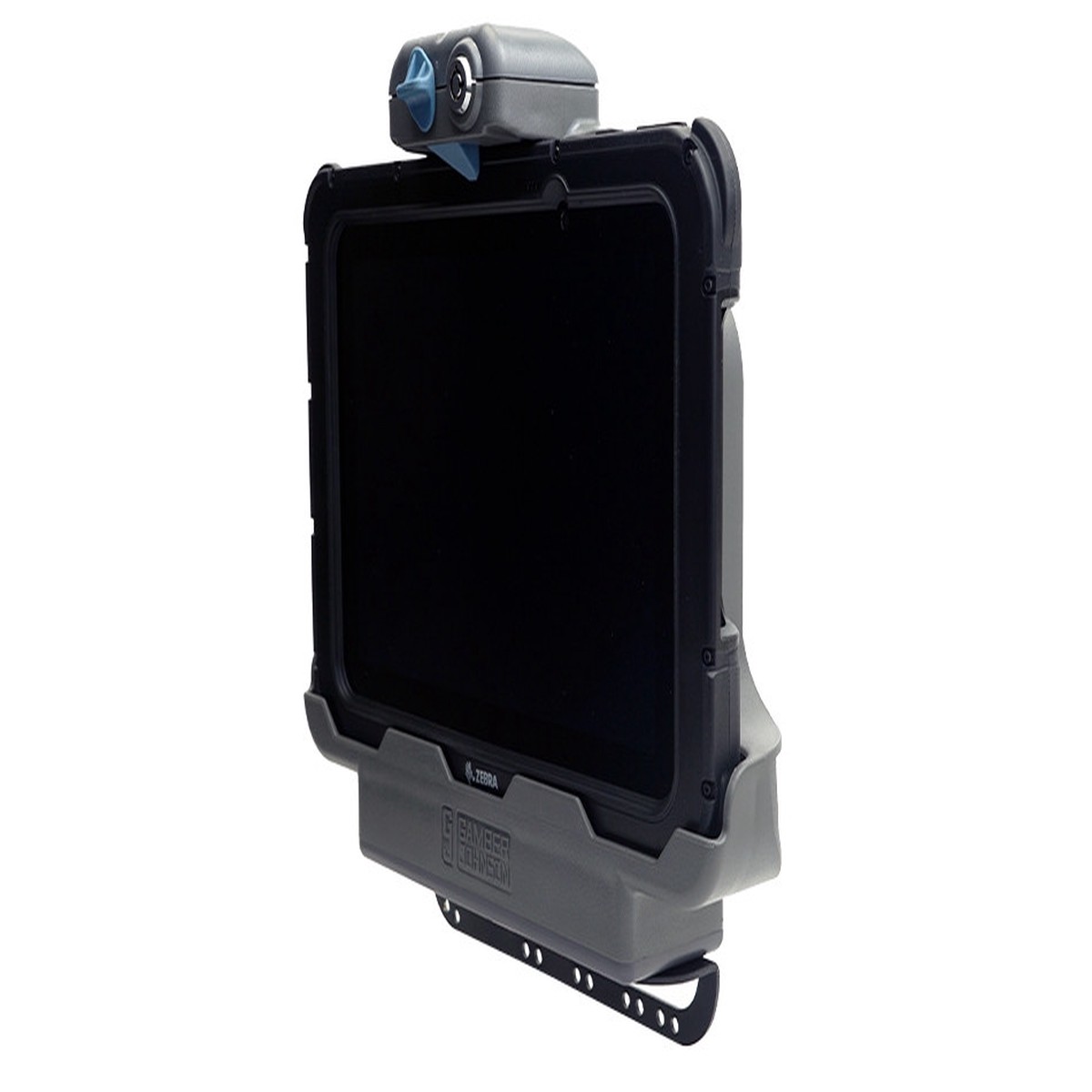

Zebra ET51/56 8″ SLIM NO RF Full port replication docking station | 7160-1506-20 | 7160-1506-20

Description

Zebra ET51/56 8″ SLIM NO RF Full port replication docking station |7160-1506-20 Gamber-Johnson’s Zebra ET51/56 8″ SLIM Port Replication docking station provides a full range of I/O ports to connect peripherals. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. The 75mm VESA mounting pattern will attach to most Gamber-Johnson motion attachments.Now shipping. *Starting Aug 23rd 2022 Gamber-Johnson does not offer HDMI output on all ET5X docks because of global video chip shortages ANTENNA PASS-THROUGH None PORT REPLICATOR Zebra Certified Electronics USB 3.0 (2) – 9 pin (900mA) RS232 Serial (1) – Power on pin 9 (825mA) Ethernet (1) – RJ45 (322 mb/s) Power Input: 12VDC POWER SUPPLY NOTincluded.Use power supplies: LIND 11-16V Auto power adapter (7300-0415) LIND 12-32V Isolated Power Adapter (7300-0466) LIND 20-60V Isolated Power Adapter (7300-0467) LIND 72-110V Isolated Power Adapter (7300-0418) FEATURES Designed for the Zebra ET51/568″ rugged tablet computer with rugged frame This dock does not accommodate ET51/56accessories Front camera on ET5X accessible when thetablet is in the docking station Compatible with Windows or Android operatingsystems Access to all control buttons and ports while the tablet is safely docked POGO pin connector provides power to charge the Zebra tablet while docked Bottom-facing I/O ports; integrated cable restraint/cable management system Guide pins prevent damage to the dockingconnection when docking the tablet Composite/aluminum design for reduced weight and extended durability Designed with rounded edges to enhance personal safety Keyed lock for security and theft deterrence Forward facing docking latch/release for easy one-handed operation: Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages To remove, lift latch to disengage and pull computer out of docking station VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnsons Zirkona mounting products TESTING & CERTIFICATES MIL-STD 810G Shock/Vibration Tested MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational) SAE J1455 Crash Tested Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms RoHS, FCC, CE Certifications INCLUDES Zebra ET51/568″ SLIM Port Replication Docking Station Mounting hardware Installation guide WARRANTY 3-Year Limited Warranty Explore ourextended warrantyprogram
