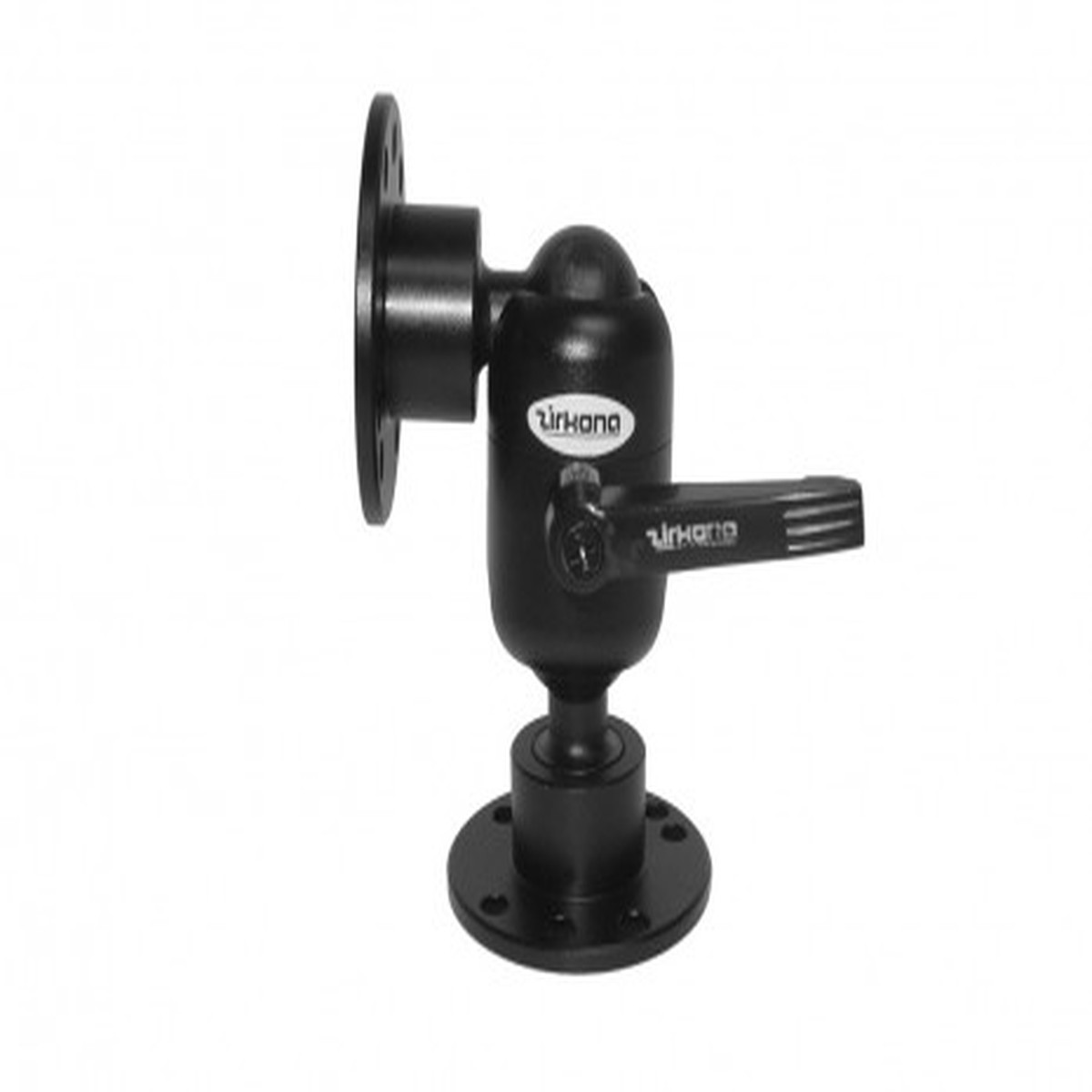

Zirkona 7110-1235 medium joiner, with two 14144 round mounting plates – 7160-0993 | Minimum order requirement | 7160-0993

Description

Zirkona 7110-1235 medium joiner, with two 14144 round mounting plates – 7160-0993 | Minimum order requirement Gamber-Johnson part number 7160-0993.SpecificationsWeight0.63 lbs / 0.29 kgHeight4.75 in / 12.06 cmWidth2.25 in / 5.72 cmDepth2.25 in / 5.72 cmFeaturesMaximum weight limit: 6.0 lbs (2.8 kg) in a vibration/mobile environment or 33 lbs (15 kg) in a static/no vibration environment Anodized aluminum with black finish Extension tube for extra height off mounting surface All axes range of motion in X axis (left/right), Y axis (front/back) and Z axis (up/down) Quick adjust handle for easy adjustment to position deviceProduct DetailsWarranty: Limited Lifetime WarrantyIndustry: Fire/Rescue, Intermodal, Logistics, Material Handling, Public Safety, UtilitySub Type 1: ZirkonaSub Type 2: Desktop Mounts, Flat Surface MountSub Type 3: AMPsNotes:Recommend use of LOCTITE 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510) Loctite EA 9460 Loctite EA 9461 Loctite EA 9466 Mounting Plates Hole Patterns: Round plate – AMPS (4 hole rectangle shaped) and NEC (3 hole triangle shaped)DownloadsProduct Sheet (PDF)Installation Guide (PDF)
