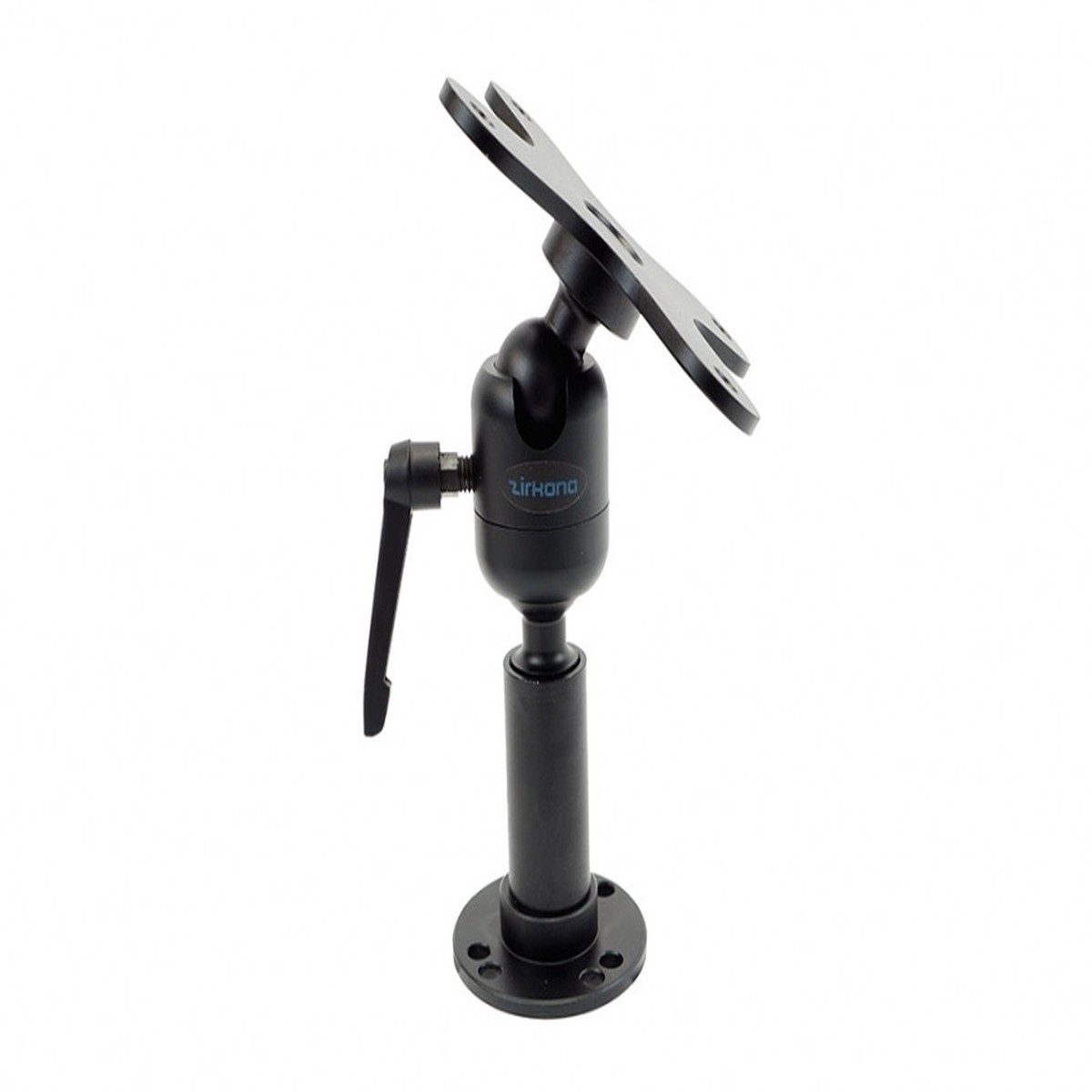

Zirkona Medium Joiner 50mm Kit, (Consists of Joiner, Round Mounting plate, Vesa 75 Mounting plate, 50mm extension, thread adapter, label and installation instructions) | 7160-0779 | 7160-0779

Description

Zirkona Medium Joiner 50mm Kit, (Consists of Joiner, Round Mounting plate, Vesa 75 Mounting plate, 50mm extension, thread adapter, label and installation instructions) |7160-0779 MAXIMUM WEIGHT CAPACITY Vibration environment – Joiner holds up to 6 lbs. (2.8kg) Static environment – Joiner holds up to 33 lbs (15kg) Warning:Extension tube will lower the overall payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner. MOUNTING PLATE HOLE PATTERNS Round Plate – AMPS (4 hole rectangle shaped) and NEC (3 hole triangle shaped) X- Shaped Mounting Plate 75mm VESA hole pattern FEATURES Anodized aluminum with black finish Extension tube for extra height off mounting surface All axes range of motion in X axis (left/right), Y axis (front/back) and Z axis (up/down) Quick adjust handle for easy adjustment to position device PACKAGE INCLUDES Medium Joiner 50mm Extension Thread Adapter Round Mounting plate VESA 75mm Mounting Plate NOTE Recommend use of LOCTITE 9460, 9461, or 9466 on all M20 size threads (See part number7300-0510) Loctite EA 9460 Loctite EA 9461 Loctite EA 9466 WARRANTY 1 Year Limited Warranty
