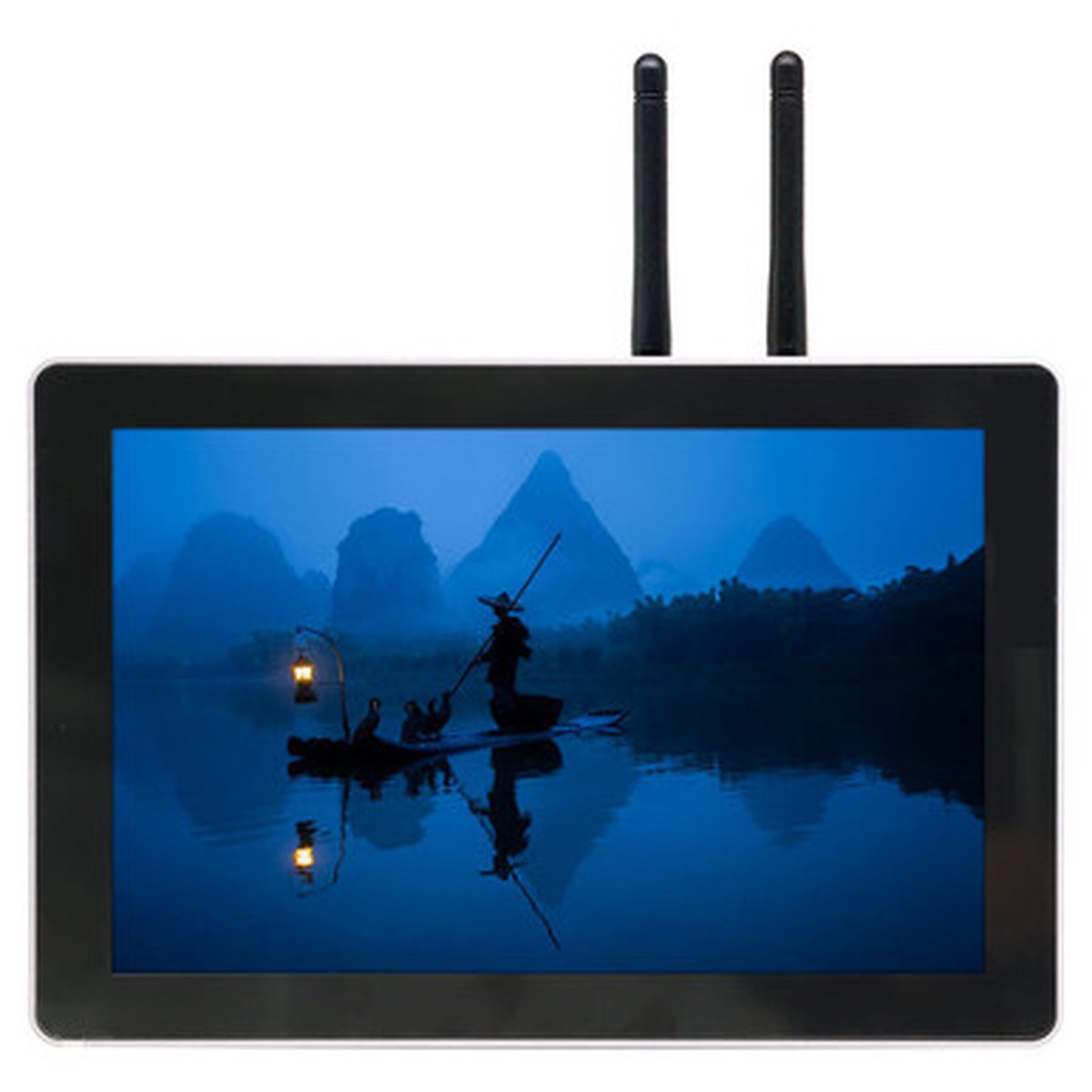

10.1” Industrial HMI based on Raspberry Pi CM5, with Wifi & Bluetooth, 4GB RAM, 32GB eMMC

Description

Description Show Reviews EDATEC – 10.1” Industrial HMI based on Raspberry Pi CM5, with Wifi & Bluetooth, 4GB RAM, 32GB eMMC,4G/LTE -ED-HMI3120-101C-10432-4US The ED-HMI3120-101C-10432-4US integrates a 10.1 capacitive touch display with Raspberry Pi CM5. It comes with Wi-Fi and Bluetooth . It features 4 GB RAM, 32 GB eMMC storage, dual Ethernet, RS-232/485 isolation, and wide-range DC power input. A reliable platform for connected industrial control and monitoring. This variant is built around the Compute Module CM5104032 . Features 10.1″ TFT, resolution 1280×800, multi-point capacitive touch screen Broadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz 4GB LPDDR4 RAM and 32GB eMMC storage Support Micro SD card and M.2 NVMe SSD storage expansion Dual LAN, 1 x Gigabit Ethernet and 1 x 100M Ethernet 4 x isolated RS232/485 with electrostatic and surge protection 2.4GHz & 5GHz dual-band Wi-Fi & Bluetooth Wide voltage power input range of DC 9V~36V with reverse polarity protection, overvoltage protection, and overcurrent protection Integrated supercapacitor (backup power supply, optional), RTC, Watch Dog, EEPROM, and crypto authentication Embedded installation, compatible with VESA standard bracket installation Specifications System CPU: Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit, 2.4 GHz VPU: H.265 (HEVC), up to 4Kp60 decode GPU: OpenGL ES 3.1, Vulkan 1.2 Memory: 4 GB LPDDR4-4267 SDRAM Storage: 32 GB eMMC MicroSD slot (user expansion) M.2 NVMe SSD (128 GB / 256 GB / 512 GB options) Side I/O Power: DC IN (936 V), 2-pin Phoenix terminal Audio: 3.5 mm jack (Mic In / Line Out / Headphone auto-switch) RS485: 2 ports, isolated, ESD & surge protected RS232: 2 ports, isolated, ESD & surge protected Ethernet: 1 Gigabit (RJ45), 1 100 M (RJ45) SD Slot: 1 MicroSD SIM Slot: 1 Nano SIM (4G) Micro USB: for flashing system to eMMC HDMI: 1 HDMI 2.0 (4K@60Hz) USB 2.0: 2 Type-A (480 Mbps) Antenna: 2 SMA (optional for 4G/Wi-Fi/BT) Speaker: Built-in 3 W, 4 Buttons & Indicators Reset: 1 button LEDs: Power (red), 4G (green), System (green), User (green), 4 UART status (green) LCD Size: 10.1 TFT Resolution: 1280800 Colors: 16.7 M Active Area: 216.576 135.36 mm Backlight: LED, >30,000 h MTBF Brightness: 400 cd/m Contrast: 1000:1 Response Time: 30 ms Viewing Angle: 80 (L/R/U/D) Touch Screen Type: 10-point capacitive multi-touch Transmittance: 85% Interface: IC, COF connection Driver: Linux Surface Hardness: 6H Internal I/O GPIO: 40-pin header (220, 2.54 mm), CM5 GPIOs, 3V3, 5V, GND M.2 B Key: SSD slot (2230 & 2242 compatible) Expansion Functions EEPROM (4 KB) Crypto authentication support RTC with SuperCAP backup (optional CR1220 battery) Buzzer (alarm function) Watchdog (hardware present, software in development) Electrical Input Voltage: 936 V DC Power Consumption: Max 24 W Mechanical Dimensions: 258 172 42 mm (WDH, without antenna) Weight: 1.2 kg Installation: Embedded front mount Wireless Wi-Fi: Dual-band 2.4 GHz (802.11 b/g/n), 5 GHz (802.11 a/n/ac) Bluetooth: 24022480 MHz 4G: Not supported Environmental Operating Temp: 20 C to +60 C Storage Temp: 25 C to +60 C Humidity: 595% non-condensing Dimension (mm) Resources Datasheet User Manual Includes 1 xED-HMI3120-101C-10432-4US Unit 1 x Mounting Kit (including 4 x buckles, 4xM4*10 screws and 4xM4*16 screws) 1 x 2.4GHz/5GHz Wi-Fi/BT Antenna 1 x 4G/LTE Antenna 0 Reviews Hide Reviews Show Reviews
