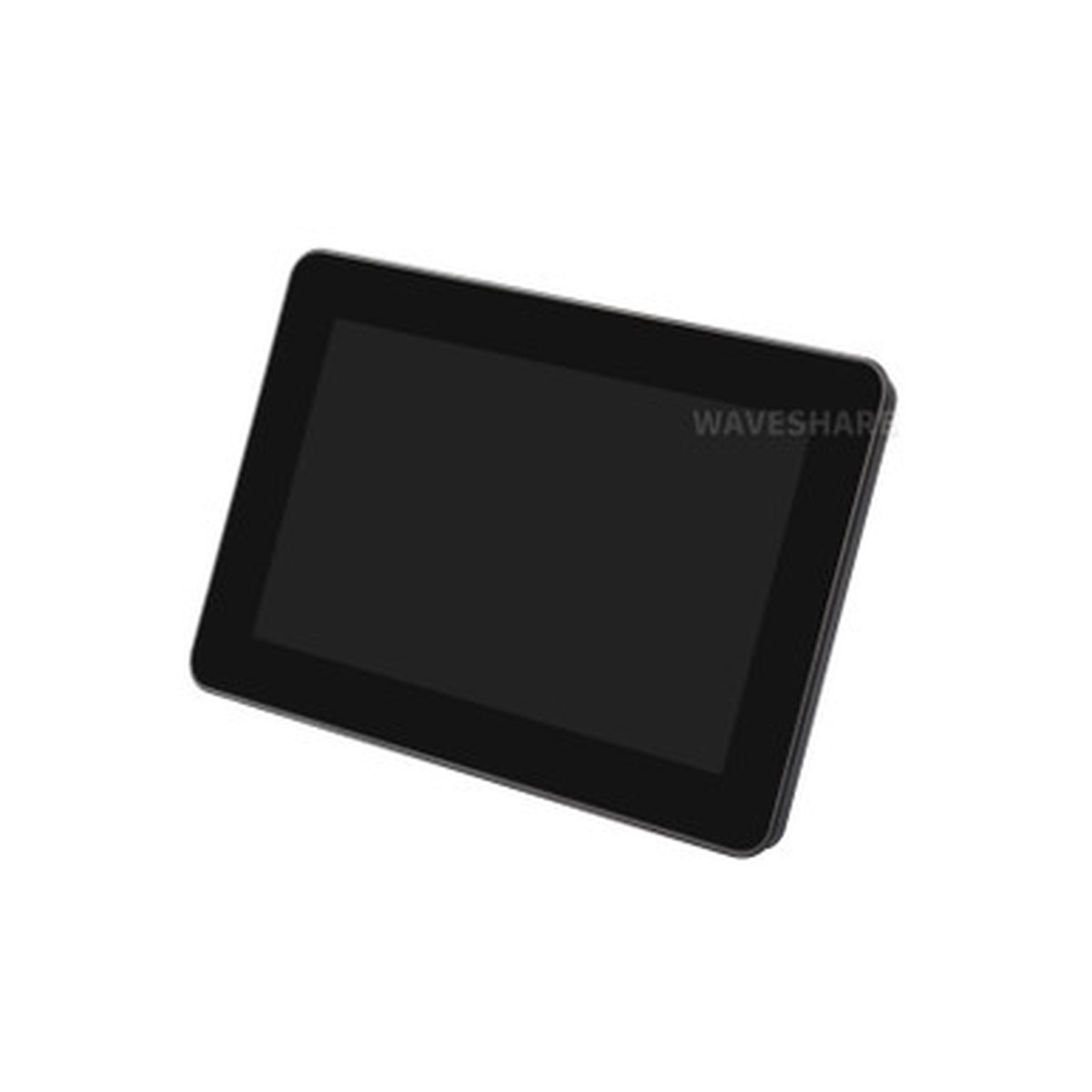

Industrial HMI All-in-one Touch Display For Raspberry Pi, 7inch, Aluminum Case

Description

Description Show Reviews Waveshare31549 – 7inch 720×1280 Industrial HMI Touch Display, Compatible with Raspberry Pi 4 and Pi 5, 10-point Touch, Aluminum Alloy Case -RPI-HMI-7A-ACCE (US) Configuration is REQUIRED before the screen will work. See the Wiki below for instructions. This All-in-One HMIwith a 7″ IPS industrial touch display is designed for Raspberry Pi 5 and Pi 4 . The capacitivetouch screen is housed in an aluminum alloy enclosure that also provides passive heat dissipation. Ships as an HMI module only, with no Pi included. Requires a 27W USB-C power supply which powers both the Pi and display. WithRaspberry Pi 5 With Raspberry Pi 4 Specifications Size: 7 inch Resolution:720 1280 Display Panel:IPS Viewing Angle:170 Touch Type:Capacitive Touch Points:10-Point Touch Panel:Toughened Glass Touch Panel Tech:Optical Bonding Panel Coating:Anti-Fingerprint Display Interface:Dual Standard HDMI 4K Output Power Port:Type-C/Screw Terminal Brightness:450cd/m Enclosure:Aluminum Alloy Interface Introduction 5V Type-C power port Standard HDMI Interface x 2 USB2.0 port x 2 USB3.0 port x 2 Gigabit Ethernet connector TF card slot Power button Power indicator 5V Power supply screw terminal (3.81mm pitch) Debugging serial port Outline Dimensions Resources Wiki page Package Content 7inch touch display 1 Mounting buckle (4PCS) 1 Screws pack 1 5W thermal pad 1 Pi5-HMI Accessories Pack: PI5 side panel 1 Aluminum alloy heatsink 1 Silicon button 1 Pi4-HMI Accessories Pack: PI4 side panel 1 Copper heatsink 1 Pi5-Display-Cable ~200mm 1 22PIN FFC Cable (2PCS) ~200mm 1 Resources: Wiki: https://www.waveshare.com/wiki/RPI-HMI-7A 0 Reviews Hide Reviews Show Reviews
