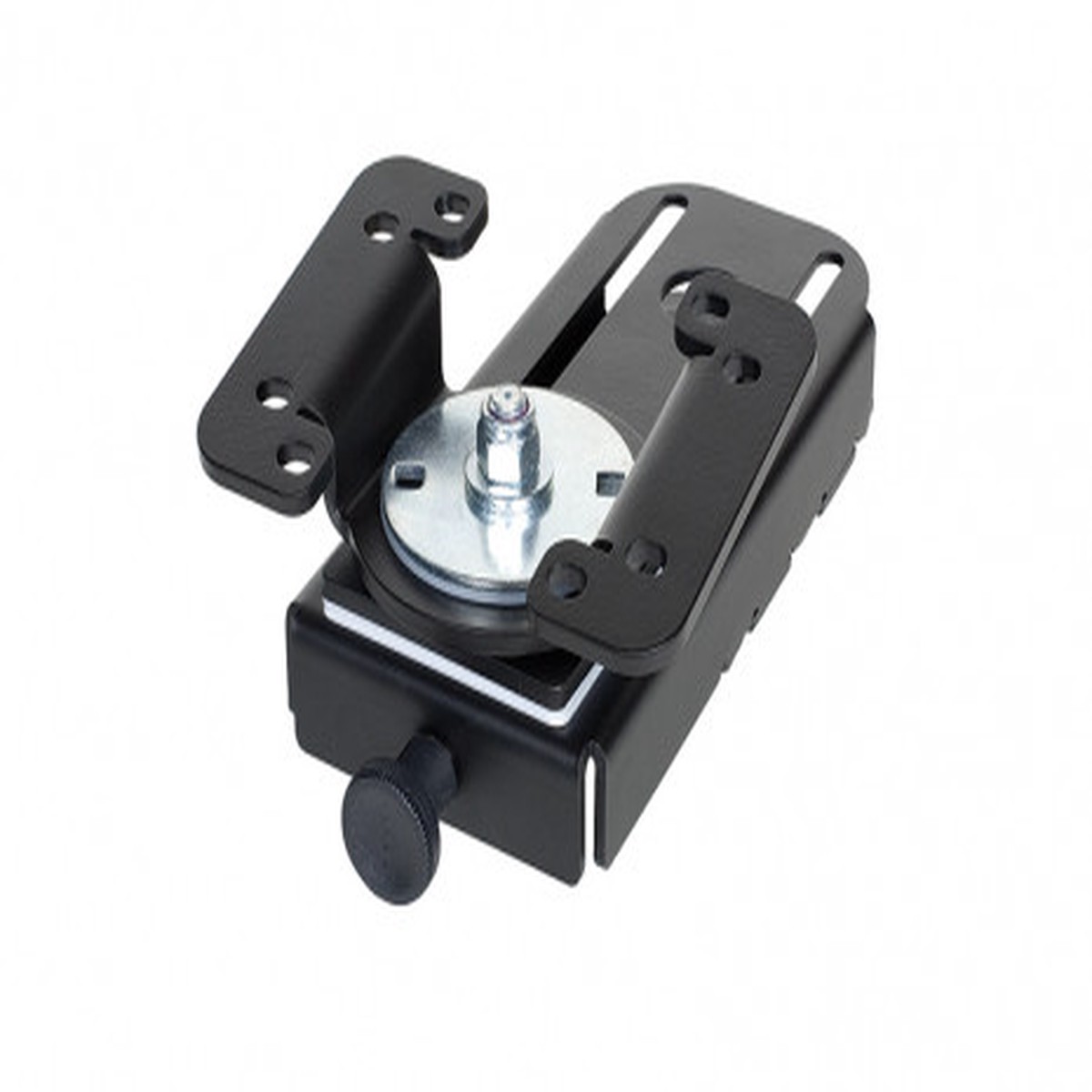

6″ Locking Slide Arm with Low Swivel – 7160-0502 | 7160-0502

Description

6″ Locking Slide Arm with Low Swivel Gamber-Johnson part number 7160-0502.SpecificationsWeight4.60 lbs / 2.09 kgHeight2.89 in / 7.34 cmWidth5.25 in / 13.33 cmDepth8.41 in / 21.36 cmFeaturesThe entire arm can rotate around 360 with locking points at every 15 To rotate the arm simply pull the front lever out, rotate to desired position and then release the lever Locking slide arm can slide up to 5.5″ from the center of the pole Motion Attachment: New Motion Attachment works with the follow hole patterns: VESA 75mm Gamber-Johnson 2×4 Tilt Capabilities: Fixed 10 angle allows for ergonomic low profile mounting solution Swivel capabilities: 360 Fixed 10 angle allows for ergonomic low profile mounting solution Can be mounted directly to a flat surface or on any Upper Pole, Complete Pole, Center Pole, Low Profile Bracket Smiley Face Pattern Heavy gauge steel construction for long-term durability Black powder coat finish for maximum corrosion resistanceProduct DetailsWarranty: Limited Lifetime WarrantyIndustry: Fire/Rescue, Public Safety, UtilityPlacement: Any Upper Pole, Center Pole, Complete Pole, Low Profile Brackets, or directly to any flat surface.Sub Type 1: Motion AttachmentSub Type 2: Locking Slide ArmSub Type 3: With ClevisNotes:Motion Attachment – 360. Entire arm – 360 can lock at every 15. DownloadsInstallation Guide (PDF)
