8″ docking station – 7170-0529 | 7170-0529

Description

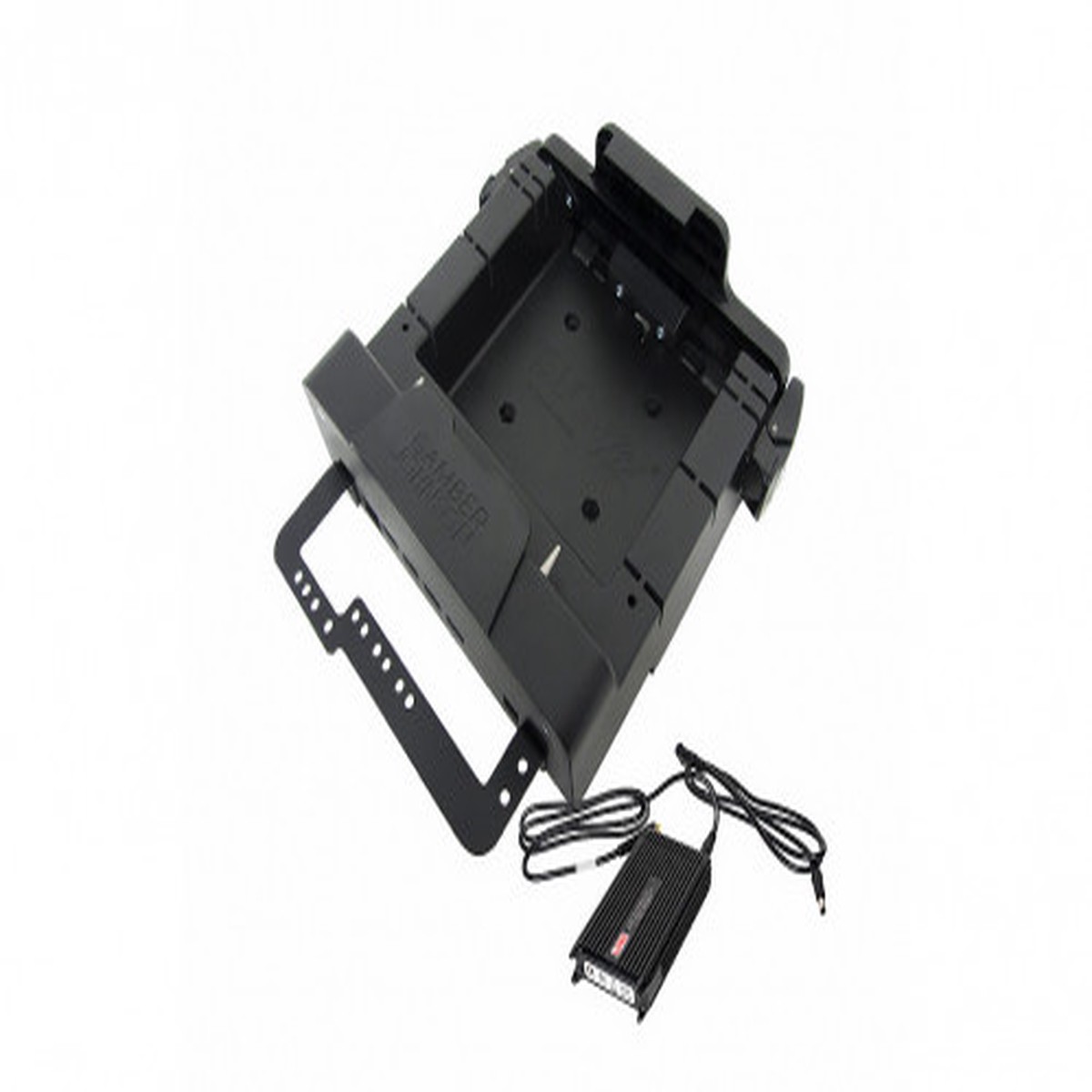

8″ docking station Gamber-Johnson part number 7170-0529.SpecificationsWeight2.6 lbs / 1.18 kgHeight10.0 in / 25.4 cmWidth9.0 in / 22.9 cmDepth3.35 in / 8.5 cmFeaturesDesigned and tested for MIL-STD 810G specificationsCompatible with Zebra enterprise tablets with the rugged frame optionAccommodates expansion back of the ET50/51 55/56 to easily add accessories like a scanner/hand strap, battery bay, or stylusFront camera on ET5X accessible when the tablet is in the docking stationCompatible with Windows or Android operating systemsDual latch/locks provide stability and docking connectivityGuide pins prevent damage to the docking connection when docking the tabletVESA 75mm mounting patternSteel and composite design for reduced weight 3 year limited warrantyProduct DetailsModel: ET50/51/55/56Device OEM: ZebraWarranty: 3-year Limited Lifetime WarrantyPort Replicators: RS232 serial power on pin 9 – 1 amp, Power input, USB (1.1A charging), USB 3.0 Ethernet RJ45 (1)Antenna Pass-through: No RFDevice Type: TabletIndustry: Material Handling, Public Safety, UtilityPort Replication: FullSub Type 1: Docking KitDownloadsInstallation Guide (PDF)Testing Summary (PDF)
