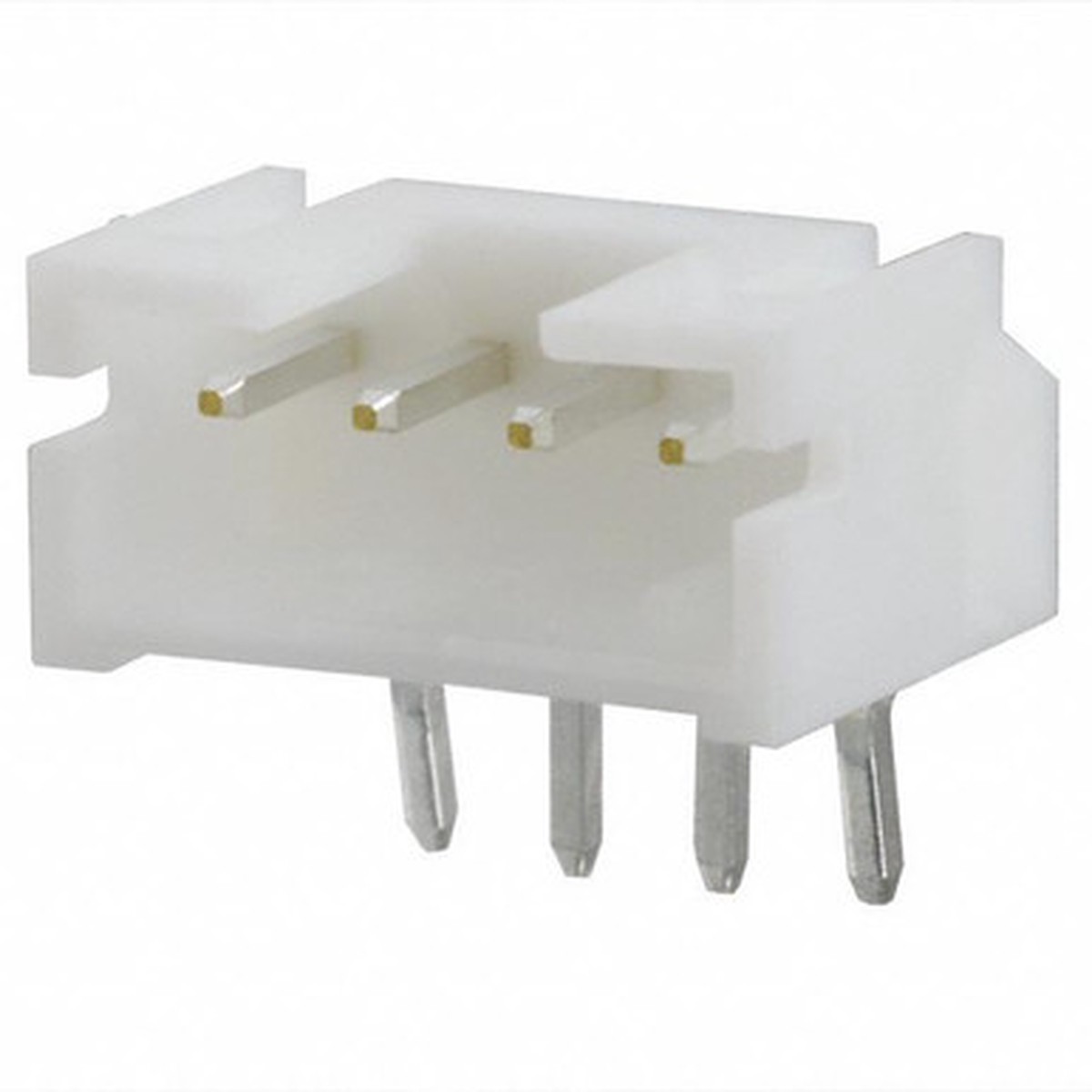

Connector Header – Right Angle – 4 Position – 2mm
Original price was: $15.00.$9.00Current price is: $9.00.
Description
Description Show Reviews PH Connector Header – S4B-PH-K-S(LF)(SN) – Through Hole – Right Angle – 4 position – 0.079″ (2.00mm) This is a thin, low-profile 2.0mm pitchconnector. It is designed to meetthe demand for high-density connection ofinternal wires to printed circuit boards. It iscompact, highly reliable and low in cost. Reliable contact Fully shrouded header Printed circuit board retention mechanism Surface mount model (SMT) Specifications Current rating: 2A AC, DC (AWG #24) Voltage rating: 100V AC, DC Temperature range: – 25C to + 85C ( including temperature rise in applying electrical current) Contact resistance: Initial value/ 10m max. After environmental testing/ 20m max. Insulation resistance: 1,000M min. Withstanding voltage: 800V AC/ minute Applicable wire: AWG #32 to #24 Applicable PC board thickness: 0.8 to 1.6mm * Compliant with RoHS. Datasheets: PH Series Datasheet 0 Reviews Hide Reviews Show Reviews
