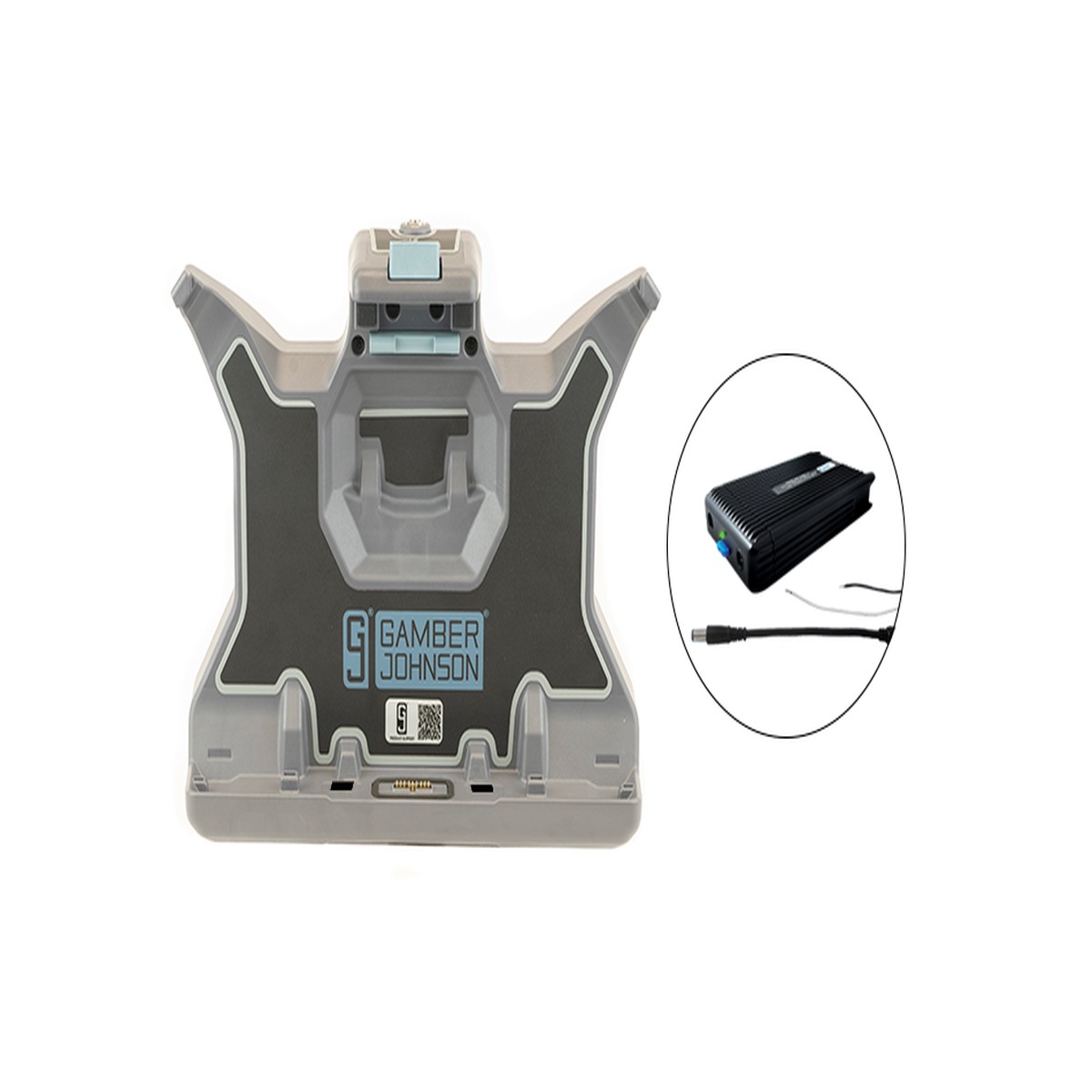

Dell 12 Rugged Tablet Vehicle Docking Station, Full Port NO RF with Lind 120W Auto Power Adapter

Description

Dell 12 Rugged Tablet Vehicle Docking Station, Full Port NO RF with Lind 120W Auto Power Adapter Gamber-Johnson part number 7170-1118-10.SpecificationsWeight2.8 lbs / 1.27 kgHeight10.05 in / 25.53 cmWidth12.14 in / 30.84 cmDepth3.18 in / 8.08 cmFeaturesCompatible with the Dell Latitude 7230 Rugged Extreme and Pro Rugged 12 RA02260 tablet computerAccommodates the tablets hand strap or magnet mount attachmentAccess to all tablet control buttons and ports while the tablet is dockedDownward-facing I/O ports; integrated cable strain relief and cable management systemHDMI video port replication for connecting an additional displayDocking connector gasket provides additional water protectionOne-handed docking and release for efficient use all day longKeyed lock for theft deterrenceGamber-Johnson’s rugged construction and reliabilityComposite design for reduced weight and durabilityVESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachmentsProduct DetailsModel: 12 Rugged Extreme Tablet (7230), Pro Rugged 12 Tablet (RA02260)Device OEM: DellWarranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options AvailablePower Supply: Yes, includes Lind 120W Auto Power Adapter (7300-0714)Testing Specifications: Cycle Test: 30,000 cycles, Latch, Lock, and Docking Connector, Electrostatic Discharge: ISO 10605, EMC Testing: EN 55032, EN50498, Environmental: Humidity, Thermal Shock, High/Low Temperature – Storage/Operational, MIL-STD-810H Operational and Non-Operational Vibration/Shock Testing, RoHS, FCC, CE, UKCA, Shock Crash Hazard: Test SAE J1455Port Replicators: HDMI 1.1 (1080p), Power Input: 19.5 Vdc, RJ45 Ethernet (1), RS232 Serial (1), USB-A 9-Pin – (2) Fully powered (1.5 Amps each), USB-C (1) Fully powered (1.5 Amps)Antenna Pass-through: No RFDevice Type: TabletIndustry: Material Handling, Public Safety, UtilityPort Replication: FullSub Type 1: Docking KitDownloadsProduct Sheet (PDF)Installation Guide (PDF)Testing Summary (PDF)
