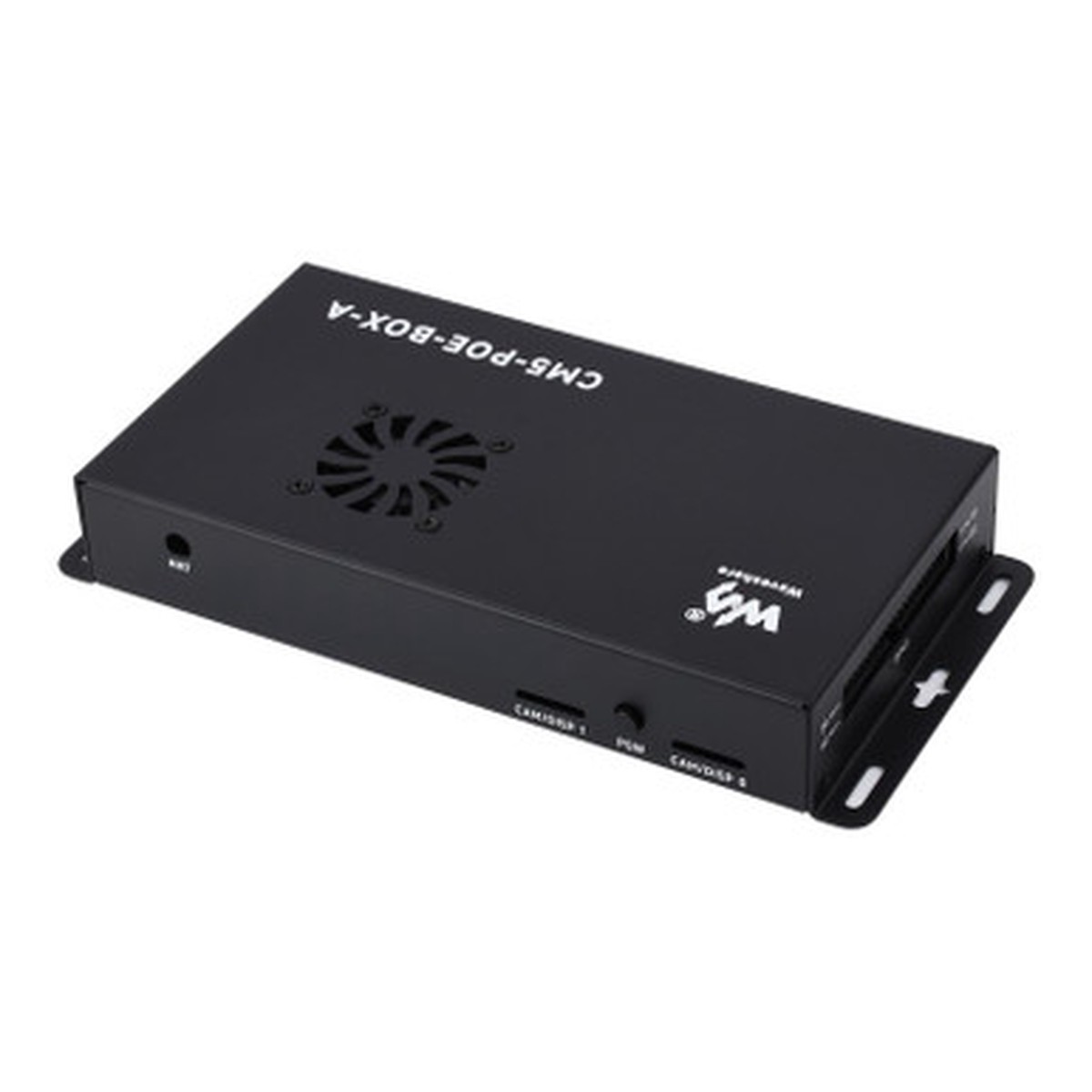

IO Board With PoE Feature for Raspberry Pi CM5, Mini Computer Kit

Description

Description Show Reviews Waveshare29687 -Raspberry Pi Compute Module 5 IO Board with PoE Feature, for all Variants of CM5 – Mini Computer Kit Version – CM5-POE-BOX-A (US) The IO Board with PoE Feature for Raspberry Pi CM5 brings power-over-Ethernet and flexible I/O to all Compute Module 5 variants. It offers dual-bandwidth USB 3.2 Gen 1 ports, dual HDMI 4K output, NVMe storage, MIPI video, Ethernet with 802.3af/at PoE, and RTC supportideal for compact, rugged CM5 edge systems. Includes a metal case, USB-C PSU, fan, and essentials for plug-and-play deployment. Specifications CM5 socket suitable for all variants of Compute Module 5 Networking Gigabit Ethernet RJ45 connector, integrates 802.3af/at-compliant PoE circuit (5V/5A) Connector Raspberry Pi 40PIN GPIO header USB USB 3.2 Gen1 2 USB 2.0 2 MIPI 4-lane MIPI interface 2 (22pin 0.5mm FPC connector) Video HDMI port 2, supports 4K output RTC CR / ML2032 battery holder Storage TF card slot for Compute Module 5 Lite (without eMMC) variants Fan connector 5V, JST-SH PWM 4PIN connector NVMe PCIe Gen2/3 1 Power input 5V 5A Dimensions the base board: 160 90 (mm) with metal case: 200.5 97.5 31.0 (mm) Connecting with Compute Module 5 standard CM5 socket and Raspberry Pi 40PIN GPIO headersuitable for all variants of Compute Module 5. Precise cut-out with clear label each cut-out is completely aligned with the connector. Package Content Metal case (top and bottom) x1 CM5-PoE-BASE-A x1 CM4-IO-BOARD-CASE-A-ADAPTER x1 CM5-FAN-4010-5V x1 27W USB-C power supply x1 Screwdriver x1 Antenna connector rubber plug x1 Button cap x1 Screws pack x1 Resources www.waveshare.com/wiki/CM5_PoE_BASE_A 0 Reviews Hide Reviews Show Reviews
