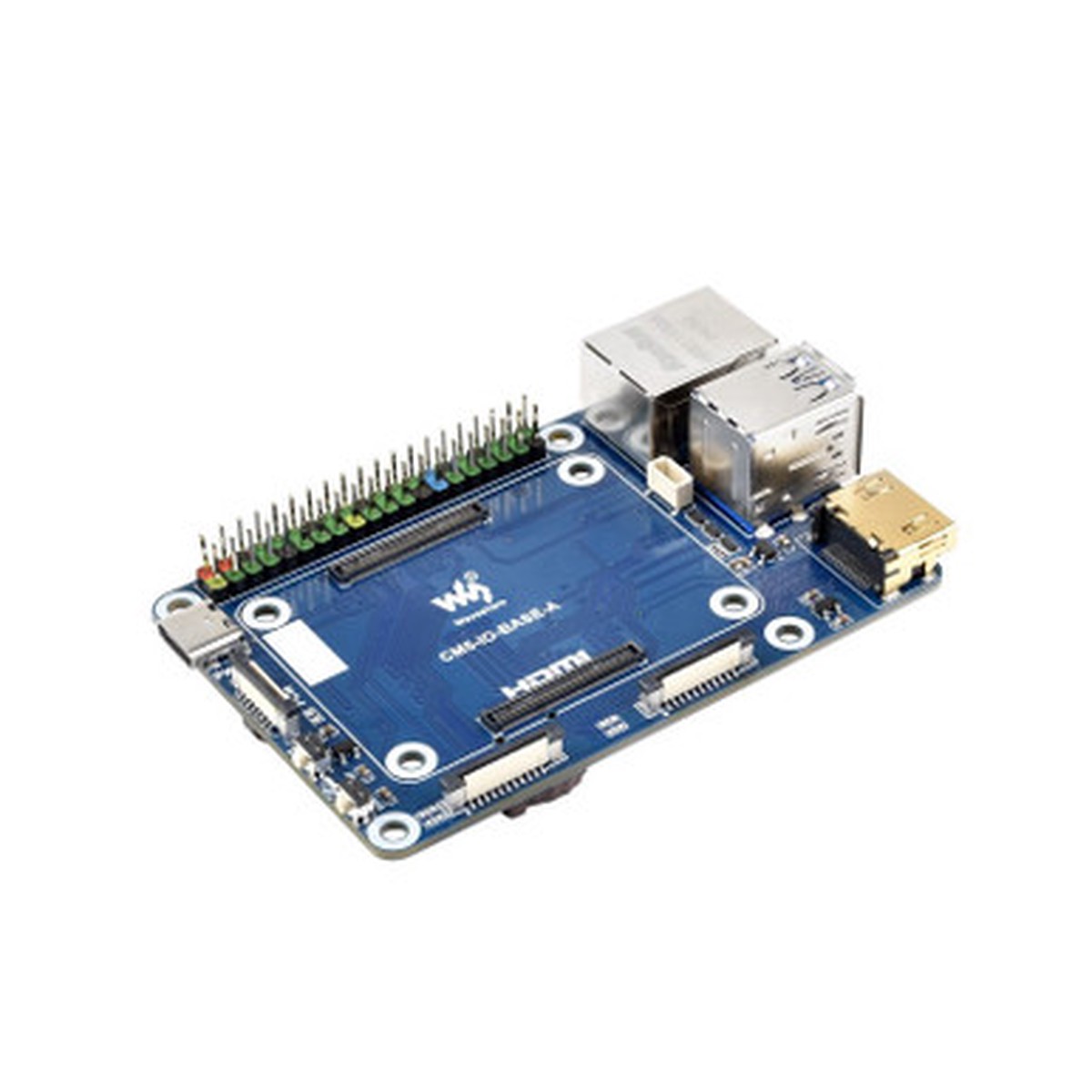

Mini Base Board (A) for Raspberry Pi Compute Module 5

Description

Description Show Reviews Waveshare30489 -Mini Base Board (A) Designed For Raspberry Pi Compute Module 5 – CM5-IO-BASE-A Specifications CM5 socket suitable for all variants of Compute Module 5 Networking Gigabit Ethernet RJ45 connector Connector 16PIN PCIe (PCIe Gen2/3 x1) Raspberry Pi 40PIN GPIO header USB USB 3.2 Gen1 Type A 2, USB 2.0 via 6PIN 1mm FFC connector 2 MIPI 4-lane MIPI interface 2 (22pin 0.5mm FFC connector) Video HDMI port 2 (including one port via FFC connector), supports dual 4K outputs Storage TF card slot for Compute Module 5 Lite (without eMMC) variants Fan header 5V, 4PIN JST-SH PWM connector Power input DC 5V 5A Dimensions 85 56mm What’s On Board CM5 socket suitable for all variants of Compute Module 5 40PIN GPIO header for connecting various HAT / HAT+ modules Power input/Programming 5V / 5A power supply, or used for eMMC burning PCIe interface for connecting various PCIe expansion boards PSW Power button Long press to force power off, short press to soft power off or on STAT LED Dual-color status LED BOOT button Press before powering on and release after powering on to enter the burning mode Dual MIPI interfaces for connecting DSI displays and CSI cameras HDMI0 connector HDMI0 port, supports 4K output USB 3.2 Gen1 ports 2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation RJ45 Gigabit Ethernet port Supports 10M / 100M / 1000M network access 4PIN JST-SH PWM Fan header for connecting cooling fan, 5V power supply TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY) IO-VREF selection CM5 IO logic level: 3.3V (default) or 1.8V Other function pins WIFI / BT hardware disable or write protection HDMI1 FFC connector HDMI1 port, supports 4K output, can be connected through an adapter USB 2.0 FFC connector can be connected through an adapter RTC battery holder Supports CR / ML1220 button cell Includes CM5-IO-BASE-A x1 Screws pack x1 Weight: 0.044 kg Outline Dimensions Resources WIKI: www.waveshare.com/wiki/CM5-IO-BASE-A 0 Reviews Hide Reviews Show Reviews
