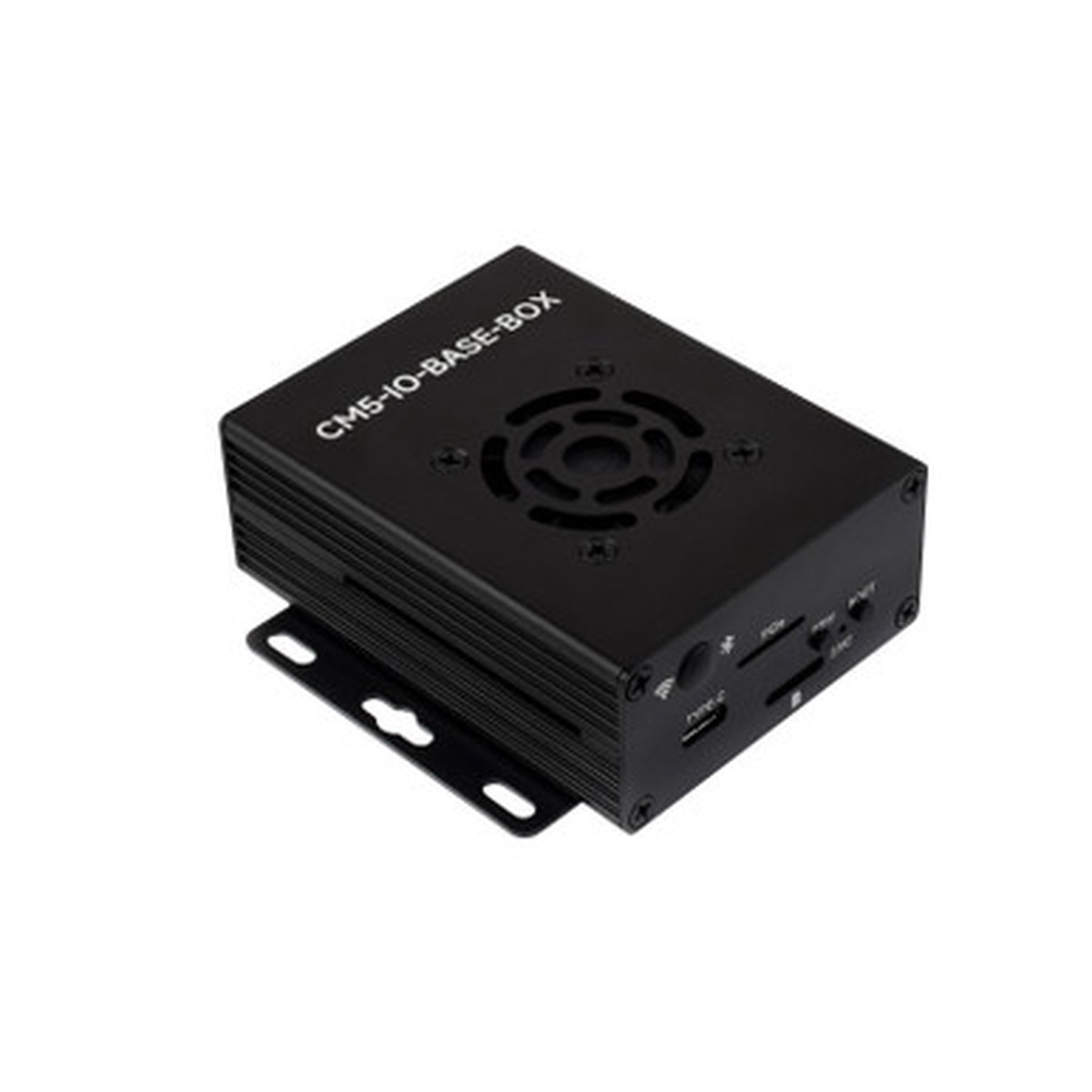

Mini Base Board (B) / Mini-Computer designed for Raspberry Pi CM5

Description

Description Show Reviews Waveshare 31233-Mini Base Board (B) – Mini-Computer Version – Designed for Raspberry Pi Compute Module 5 (NOT Included), Onboard EEPROM and Encryption Chip -CM5-IO-BASE-BOX-B (US) The Waveshare CM5-IO-BASE-B Mini Base Board transforms your Raspberry Pi Compute Module 5 into a powerful mini-computer. This compact (85 56 mm) board packs dual USB 3.2 Gen 1, USB 2.0, dual 4K HDMI (one via FFC), Gigabit Ethernet, M.2 (2230/2242) NVMe support, MIPI CSI/DSI, plus built-in EEPROM and ATSHA204 encryptionperfect for secure, versatile embedded and development projects. Compatible with all CM5 variants. Specifications CM5 socket suitable for all variants of Compute Module 5 Networking Gigabit Ethernet RJ45 connector Connector M.2 M KEY (2230 / 2242) Raspberry Pi 40PIN GPIO header USB USB 3.2 Gen1 Type-A 2, USB 2.0 2 (6PIN 1mm FFC connector) MIPI 4-lane MIPI interface 2 (22pin 0.5mm FFC connector) Video HDMI port 2 (including one port via FFC connector), supports dual 4K outputs Storage TF card slot for Compute Module 5 Lite (without eMMC) variants Fan header 5V, 4PIN JST-SH PWM connector Others Onboard EEPROM and Encryption chip Power input DC 5V 5A Dimensions the base board: 85 56mm with metal case: 90 68mm Compact, yet Complete Onboard multiple connectors, more convenient to use Precise cut-out with clear label Each cut-out is completely aligned with the connector Cooling fan included Comes with cooling fan, combined with the airflow vent, better heat dissipation What’s On Board CM5 socket suitable for all variants of Compute Module 5 40PIN GPIO header for connecting various HAT / HAT+ modules Power input/Programming 5V / 5A power supply, or used for eMMC burning Encryption chip (ATSHA204) Supports fast and secure symmetric authentication PSW Power button Long press to force power off, short press to soft power off or on STAT LED Dual-color status LED BOOT button Press before powering on and release after powering on to enter the burning mode Dual MIPI interfaces for connecting DSI displays and CSI cameras HDMI0 connector HDMI0 port, supports 4K output USB 3.2 Gen1 ports 2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation RJ45 Gigabit Ethernet port Supports 10M / 100M / 1000M network access 4PIN JST-SH PWM Fan header for connecting cooling fan, 5V power supply TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY) IO-VREF selection CM5 IO logic level: 3.3V (default) or 1.8V Other function pins WIFI / BT hardware disable or write protection HDMI1 FFC connector HDMI1 port, supports 4K output, can be connected through an adapter USB 2.0 FFC connector can be connected through an adapter RTC battery holder Supports CR / ML1220 button cell M.2 M KEY Supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive I2C selection switching I2C0 and I2C1 (by default) for the encryption chip and EEPROM CAT24C32 EEPROM chip Outline dimensions WIKI: www.waveshare.com/wiki/CM5-IO-BASE-B Package Content CM5-IO-BASE-B x1 Metal case (top and bottom) x1 Antenna connector rubber plug x1 EVA foam pad x1 CM5-FAN-4010-5V x1 Rail-mount buckle x1 Screws pack x1 Screwdriver x1 27W Power Supply x1 0 Reviews Hide Reviews Show Reviews
