Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 4

Description

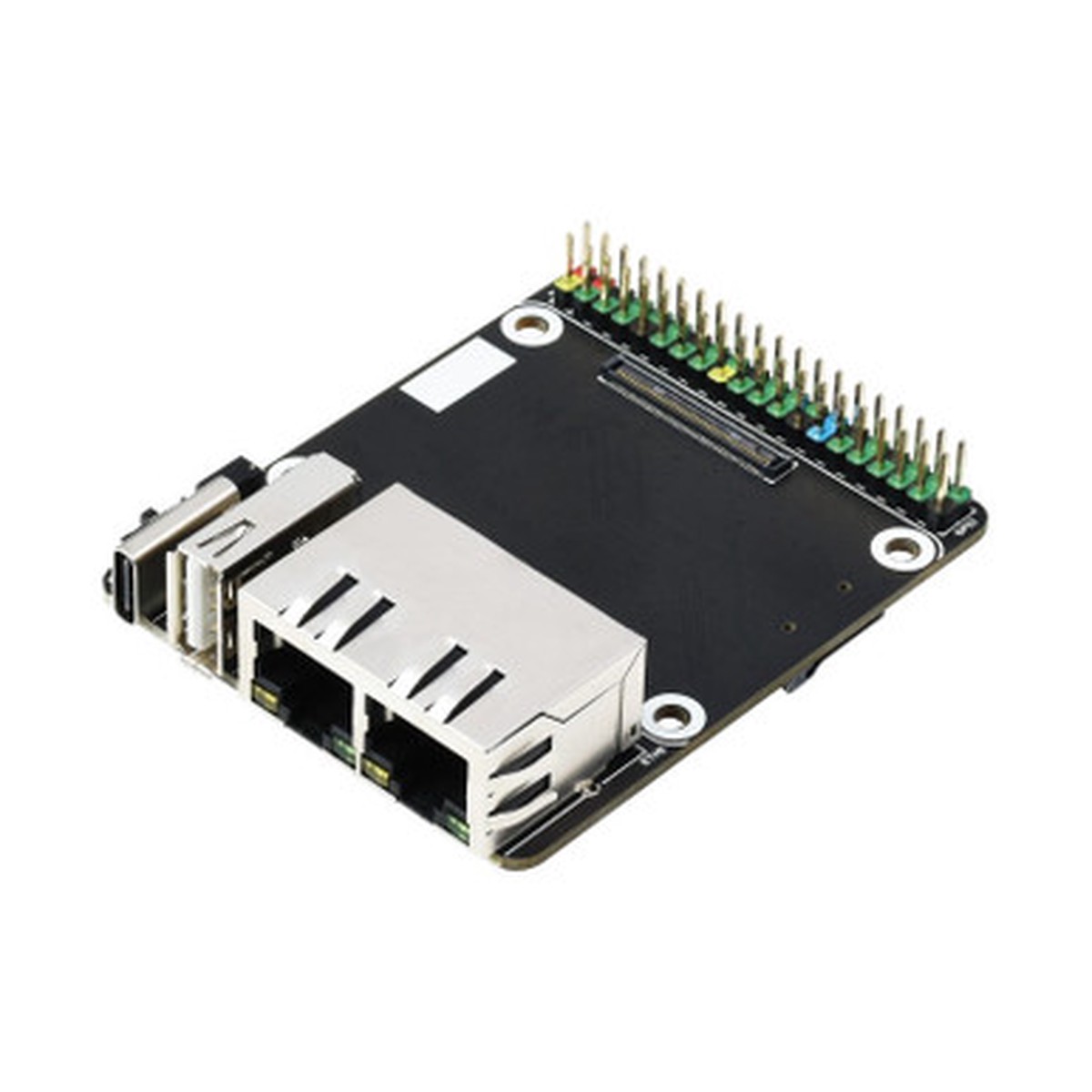

Description Show Reviews Waveshare22360 -Mini Dual Gigabit Ethernet Base Board/Mini-Computer Designed For Raspberry Pi Compute Module 4 – CM4-DUAL-ETH-MINI Specifications CM4 SOCKET: suitable for all variants of Compute Module 4 NETWORKING: Dual Gigabit Ethernet RJ45 connector USB: USB 2.0 Port PIN HEADER: Raspberry Pi 40PIN GPIO header STORAGE: TF card socket for Compute Module 4 Lite (without eMMC) variants FAN HEADER: 4-wire SH1.0 port, allows speed adjustment and measurement, 5V POWER INPUT: 5V, Type-C interface DIMENSIONS: 55.0 68.0mm Precise Cut-Out With Clear Label What’s On Board 40PIN GPIO header for connecting sorts of HAT CM4 Socket suitable for all variants of Compute Module 4 RJ45 Dual Gigabit Ethernet Port Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible ETHERNET 0: CM4 original network port ETHERNET 1: PCIe extended network port USB 2.0 Type A port for connecting sorts of USB devices FAN header for connecting cooling fan, allows speed adjustment and measurement Reset button Boot switch ON: CM4 would be booted from USB-C interface OFF: CM4 would be booted from eMMC or TF card Type-C port 5V/2.5A power supply, or used for eMMC programming TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY) RTL8111H Gigabit NIC chip Indicator PWR: indicating the power supply status of Raspberry Pi SYS: indicating the working status of Raspberry Pi SYSTEM switch EEPROM_WP: Prevent EEPROM from being overwritten WiFi_DIS: WiFi disabled, only for CM4 version with wireless BT_DIS: Bluetooth disabled, only for CM4 version with wireless Outline Dimensions Resources WIKI: www.waveshare.com/wiki/CM4-DUAL-ETH-MINI * Resources for different product may vary, please check the wiki page to confirm the actually provided resources. 0 Reviews Hide Reviews Show Reviews
