Mini Dual Gigabit Ethernet Mini-Computer Kit Designed for Raspberry Pi CM4

Description

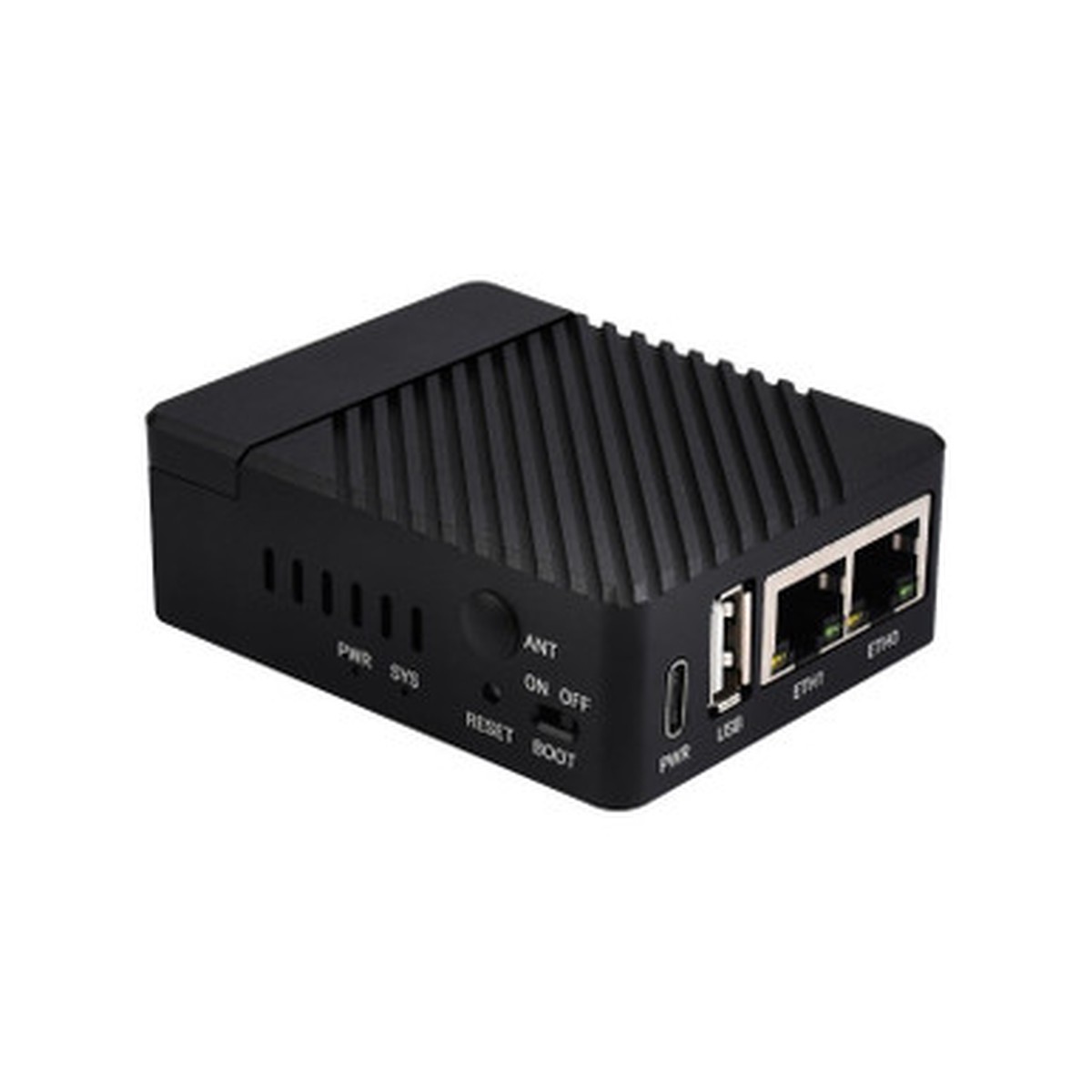

Description Show Reviews Waveshare23697 -Mini Dual Gigabit Ethernet Base Board/Mini-Computer Designed For Raspberry Pi Compute Module 4 – CM4-DUAL-ETH-MINI-BOX CM4-DUAL-ETH-MINI, a baseboard that can be used with Raspberry Pi Compute Module 4, supports 5V DC Type-C interface power supply, and features dual Gigabit Ethernet ports, single-channel USB2.0 with a fan interface and standard Raspberry Pi 40Pin interface, which is suitable for scenarios requiring multiple network ports such as soft routing. Specifications CM4 socket suitable for all variants of Compute Module 4 Networking Dual Gigabit Ethernet RJ45 connector USB USB 2.0 Port PIN HEADER Raspberry Pi 40PIN GPIO header Storage TF card socket for Compute Module 4 Lite (without eMMC) variants Fan header 4-wire SH1.0 port, allows speed adjustment and measurement, 5V Power input 5V, Type-C interface Dimensions 55.0 68.0mm What’s On Board 40PIN GPIO header for connecting sorts of HAT CM4 Socket suitable for all variants of Compute Module 4 RJ45 Dual Gigabit Ethernet Port Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible ETHERNET 0: CM4 original network port ETHERNET 1: PCIe extended network port USB 2.0 Type A port for connecting sorts of USB devices FAN header for connecting cooling fan, allows speed adjustment and measurement Reset button Boot switch ON: CM4 would be booted from USB-C interface OFF: CM4 would be booted from eMMC or TF card Type-C port 5V/2.5A power supply, or used for eMMC programming TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY) RTL8111H Gigabit NIC chip Indicator PWR: indicating the power supply status of Raspberry Pi SYS: indicating the working status of Raspberry Pi SYSTEM switch EEPROM_WP: Prevent EEPROM from being overwritten WiFi_DIS: WiFi disabled, only for CM4 version with wireless BT_DIS: Bluetooth disabled, only for CM4 version with wireless Outline Dimensions Resources WIKI: www.waveshare.com/wiki/CM4-DUAL-ETH-MINI Content CM4-DUAL-ETH-MINI + metal case (assembled) x1 5V 3A power adapter x1 Screwdriver x1 Thermal tape 2PCS x1 Black anti-slip rubber 4PCS x1 0 Reviews Hide Reviews Show Reviews
