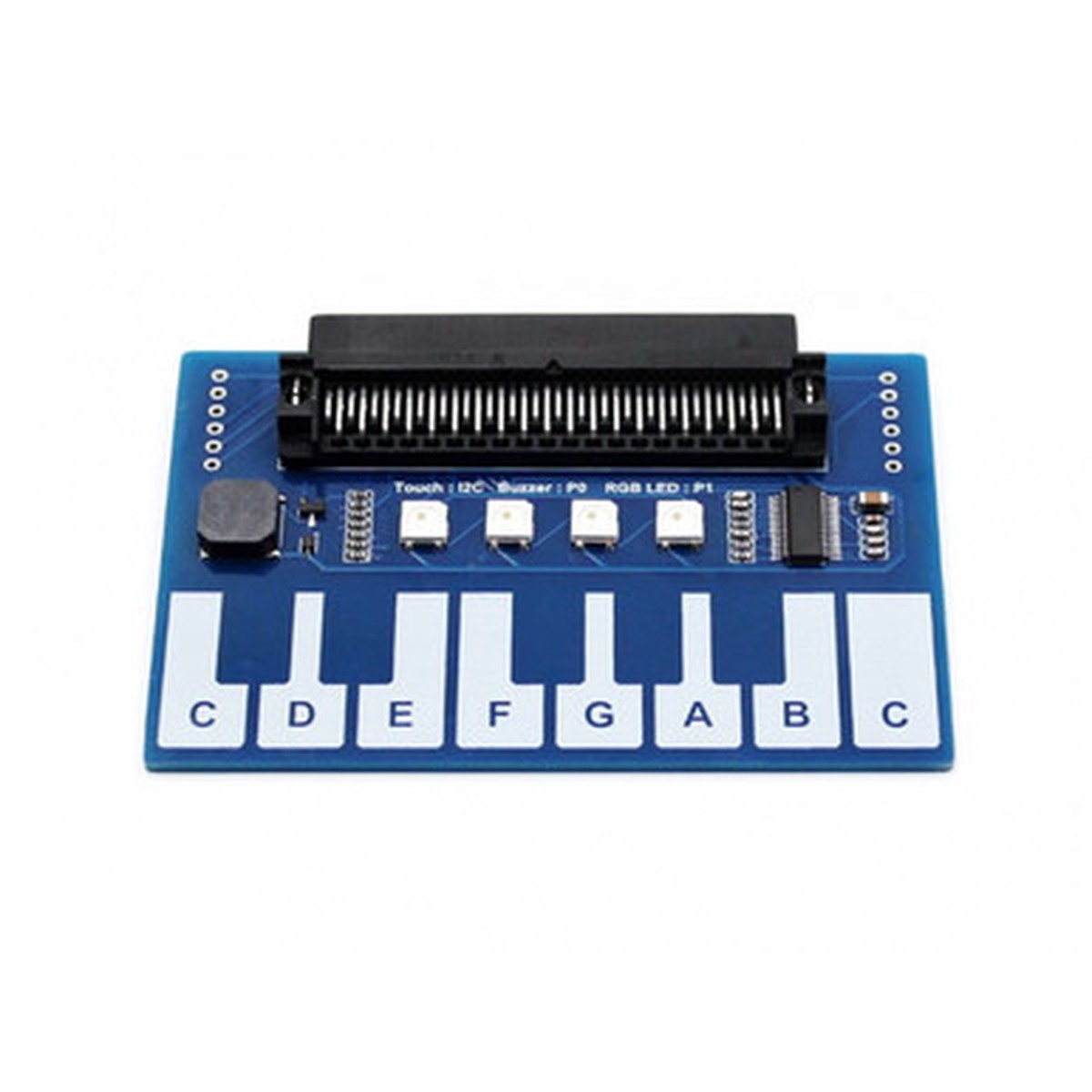

Mini Piano Module for micro:bit, Touch Keys to Play Music

Description

Description Show Reviews Waveshare 14205 -Mini Piano Module for micro:bit. Touch Keys to Play Music, with 4x RGB LEDs. Isn’t it cool to play your favorite song using the BBC micro:bit? Just plug it into this little piano, and enjoy. Features micro:bit edge connector, directly pluggable Buzzer to play music Onboard capacitive touch controller, 13x touch keys through I2C interface 4x RGB LEDs, controlled by only one signal pin Breakout module control pins, micro:bit SPI pins, and some of the GPIO pins, easy expansion Comes with development resources (micro:bit graphical demo/python code/user manual, etc.) Specifications Touch controller: TTP229 LED: WS2812B LED color depth: 16777216 colors Dimension: 85mm x 56mm Operating voltage: 3.3V Pinouts Symbol Description VCC Power (3.3V input) GND Ground P0 Buzzer control pin, related to mcro:bit P0 P1 LED control pin, related to mcro:bit P1 SCL Touch keys control pin, I2C clock SDA Touch keys control pin, I2C data Dimensions Weight: 0.024 kg Development Resources Wiki : www.waveshare.com/wiki/Piano_for_micro_bit 0 Reviews Hide Reviews Show Reviews
