MLX90640 IR Array Thermal Imaging Camera, 3224 Pixels, 55 FOV

Description

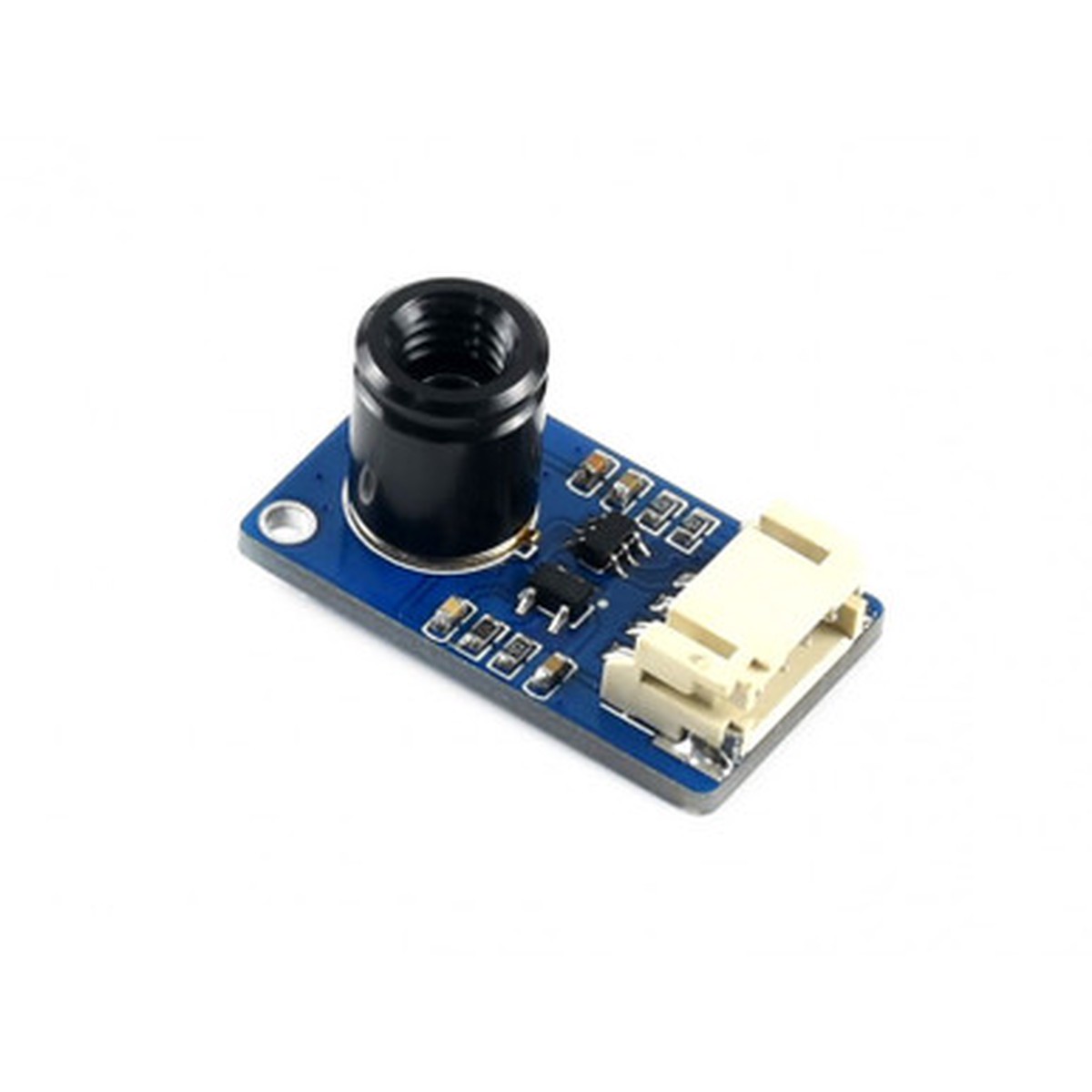

Description Show Reviews Waveshare17220 – MLX90640-D55 IR Array Thermal Imaging Camera, 3224 Pixels, 55 Field Of View, I2C Interface OVERVIEW This is a 3224 pixels, 55 field of view, IR array thermal imaging camera, communicating via I2C interface. It is compatible with 3.3V/5V operating voltage, supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32, etc. By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications. FEATURES Adopts MLX90640 far-infrared thermal sensor array, 3224 pixels Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate) Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate Onboard voltage translator, compatible with 3.3V/5V operating voltage Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32) SPECIFICATIONS Operating voltage: 3.3V/5V Operating current: 23mA Communication interface: I2C (address 0x33) Field of view (HorizontalVertical): MLX90640-D55 Thermal Camera: 5535 (narrow angle FOV, suit for long range measuring) Operating temperature: -4085 Target temperature: -40300 Resolution: 1 Refreshrate: 0.5Hz~64Hz (programmable) Dimensions: 28mm16 mm Mounting hole size: 2.0mm APPLICATIONS High precision non-contact temperature measurements IR thermal imaging devices, IR thermometers Smart home, intelligent building, intelligent lighting Industrial temperature control, security monitoring, intrude/movement detection PINOUTS In the case of working with MCU: VCC 3.3V / 5V GND GND SDA MCU.I2C data line SCL MCU.I2C clock line EXAMPLE Generating IR thermal images of the Raspberry Pi: DIMENSIONS Package content MLX90640-D55 Thermal Camera x1 PH2.0 4PIN wire x1 DEVELOPMENT RESOURCES Wiki: www.waveshare.com/wiki/MLX90640-D55_Thermal_Camera 0 Reviews Hide Reviews Show Reviews
