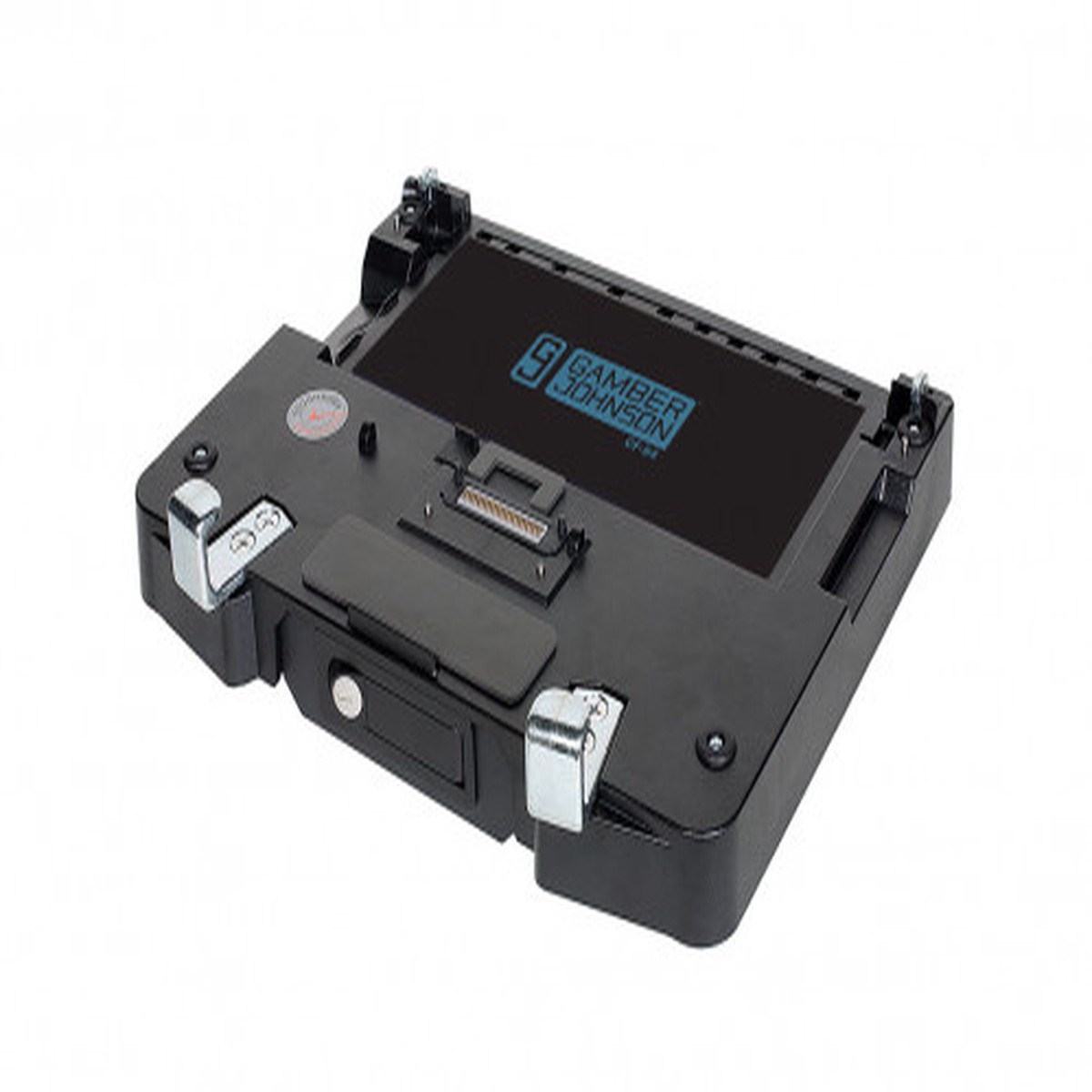

Panasonic Toughbook CF54 Docking Station – NO RF – 7160-0577-00 | 7160-0577-00

Description

Panasonic Toughbook CF54 Docking Station – NO RF Gamber-Johnson part number 7160-0577-00.SpecificationsWeight5.50 lbs. / 2.5 kgHeight3.50″ / 8.9 cmWidth13.48″ / 34.2 cmDepth11.85″ / 30.1 cmFeaturesDesigned to MIL-STD 810G test procedures and complies with FCC Class A standards Small footprint – designed to maximize available space inside of vehicle Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system Spring-loaded docking connector to ensure connectivity in the roughest terrain Front safety bracket and rear corners ensure proper alignment and docking connectivity Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked. This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer Special access area for smart card reader makes it easy to insert and eject card Push button latch with keyed lock for theft deterrence: Product DetailsModel: TOUGHBOOK 54/55Device OEM: PanasonicWarranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options AvailablePower Supply: LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216), LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461), LIND 11-16VDC Auto Power with cigarette lighter connector (7300-0462)Testing Specifications: TOUGHBOOK Certified, RoHS, FCC, C-Tick, E-Mark, Vibration Testing: MIL-STD 810G 514.5, Docking Handle Tested: 10,000 cycles, SAE Standard J1455 crash testPort Replicators: Ethernet – RJ45, Fully Powered USB 3.0 (2) – 9 pin, VGA – D-sub 15 pin, HDMI – 19 pin, Serial – D-sub 9 pin, Input Voltage – 15.6 V DCAntenna Pass-through: No RFDevice Type: LaptopIndustry: Fire/Rescue, Public Safety, UtilityPort Replication: FullSub Type 1: DockDownloadsProduct Sheet (PDF)Installation Guide (PDF)Testing Summary (PDF)
