PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, Compatible w/ MiniPCIe interface 4G Module

Description

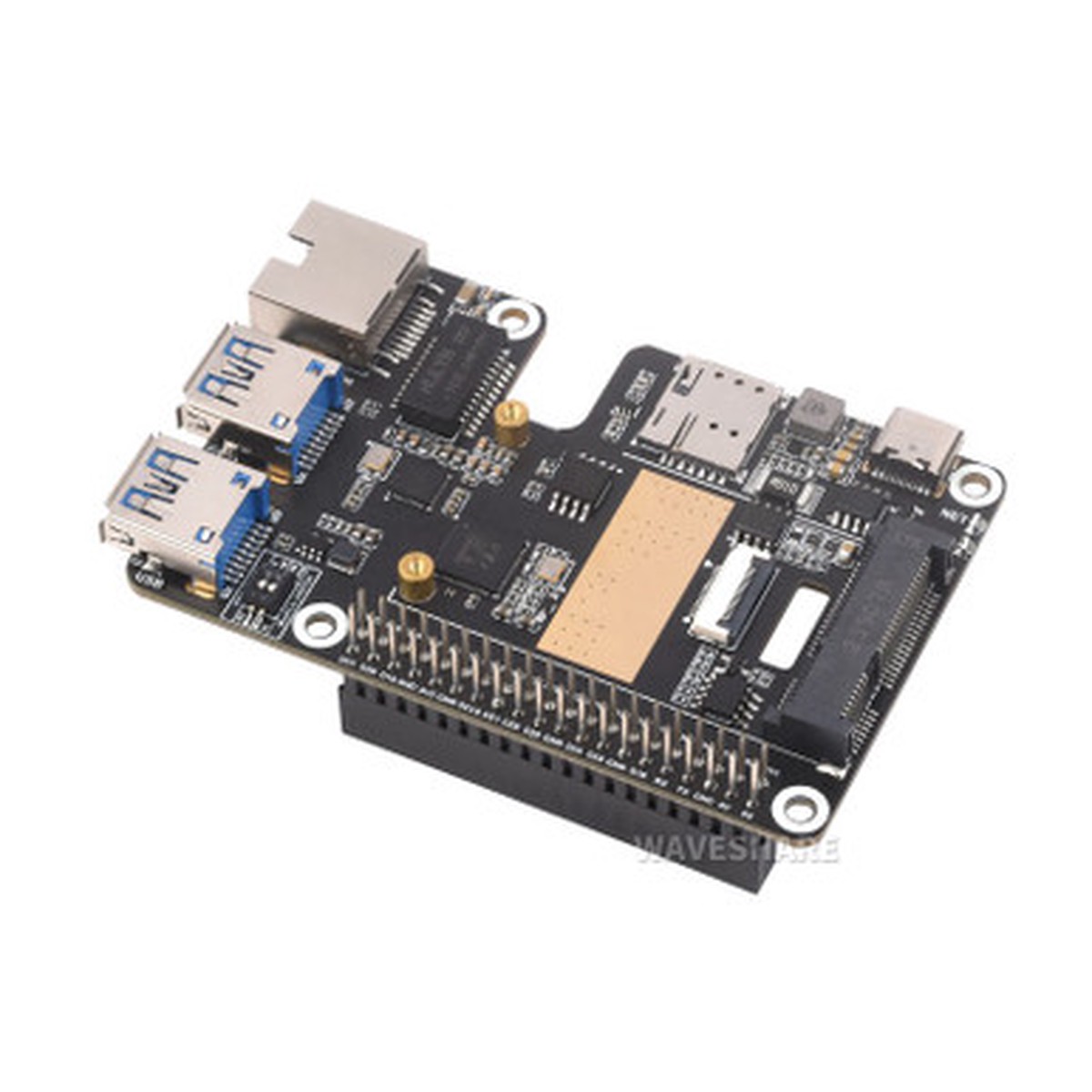

Description Show Reviews Waveshare28142 -PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, Supports MiniPCIe interface 4G Module, High-speed Networking, Multiple OS support, Raspberry Pi 5 HAT – PCIe TO MiniPCIe GbE USB3.2 HAT+ What’s on Board RTL8153B USB to Gigabit ETH VL805 PCIe to USB 3.2 Gen1 HUB chip INA219 Power monitoring chip EEPROM for saving HAT ID and product information Raspberry Pi GPIO header for connecting Raspberry Pi 5 MiniPCIe slot for connecting the 4G module with MIniPCIe interface 16PIN PCIe interface for connecting to the PCIe interface of Raspberry Pi 5 Type-C interface for 4G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input Nano SIM card slot for installing Nano-SIM card Gigabit Ethernet port up to 1000Mbps data rate, compatible with 100Mbps USB 3.2 Gen1 expanded ports USB1~USB2 DIP switchs for switching to use GPIO D6 pin to control power ON/OFF of the module and switching the module USB signal output direction NET indicator Module Network status indicator PWR indicator Power indicator Pinout definition Outline Dimensions Package Content PCIe TO MiniPCIe GbE USB3.2 HAT+ x1 16P-Cable-40mm cable x1 Network cable ~1.5m x1 Screws pack x1 0 Reviews Hide Reviews Show Reviews
