Power Over Ethernet HAT (F) For Raspberry Pi 5, Cooling Fan, 802.3af/at

Description

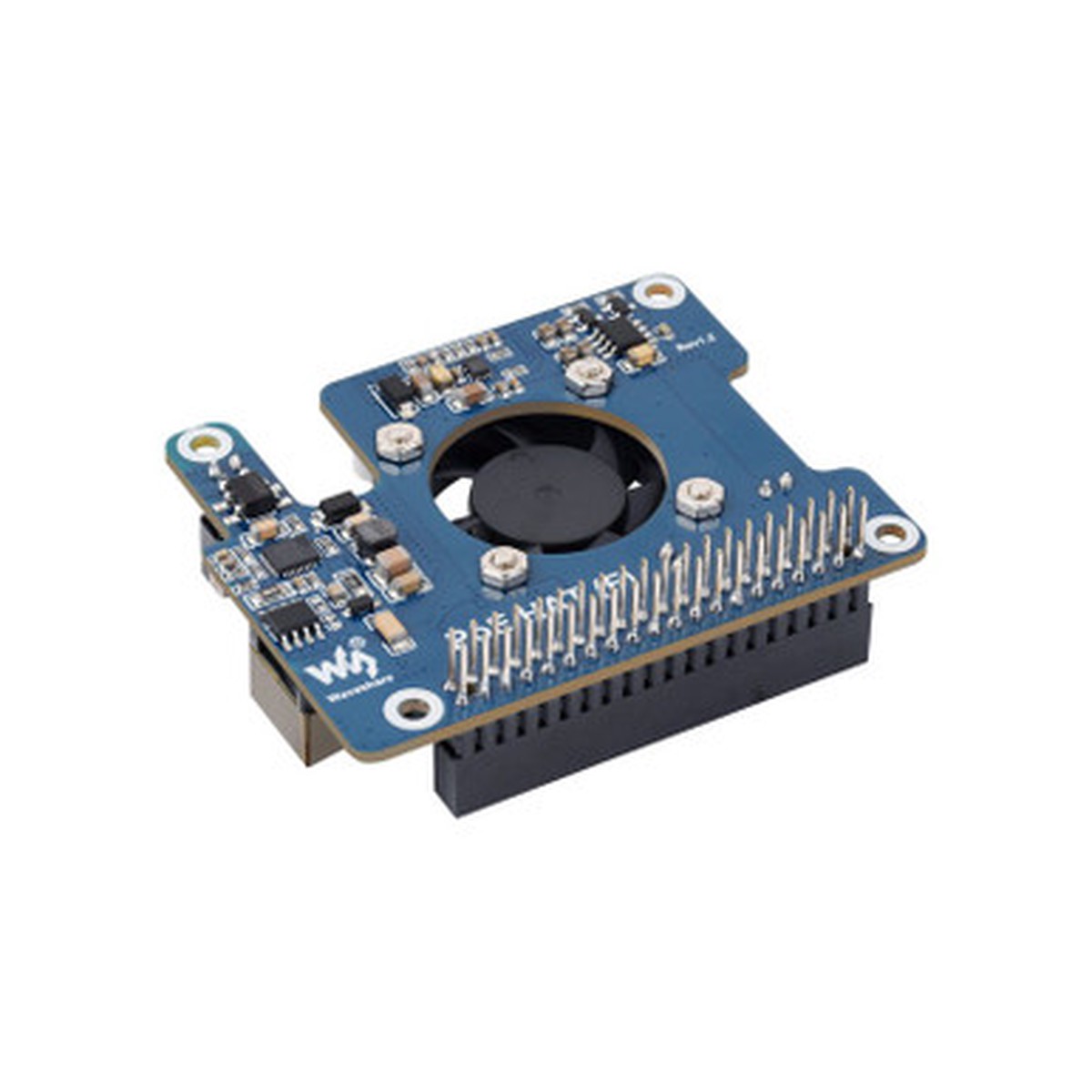

Description Show Reviews Waveshare26399 -Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/At Network Standard Features The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 PoE (Power Over Ethernet) capabilityIEEE 802.3af/at-compliant Fully isolated switched-mode power supply (SMPS) Onboard high speed active cooling fan, with metal heatsink, better heat dissipation Specifications PoE power input 37V ~ 57V DC in Power output GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) Dimensions 56.5 70.0mm Network standard IEEE802.3af/at PoE Includes PoE HAT (F) x1 Metal heatsink x1 Standoffs Thermal tape (3PCS) x1 Weight: 0.056 kg How To Install Attach The Thermal Tapes First, Then Install Metal Heatsink And Fix The PoE HAT Outline Dimensions Resources WIKI: www.waveshare.com/wiki/PoE_HAT_(F) 0 Reviews Hide Reviews Show Reviews
