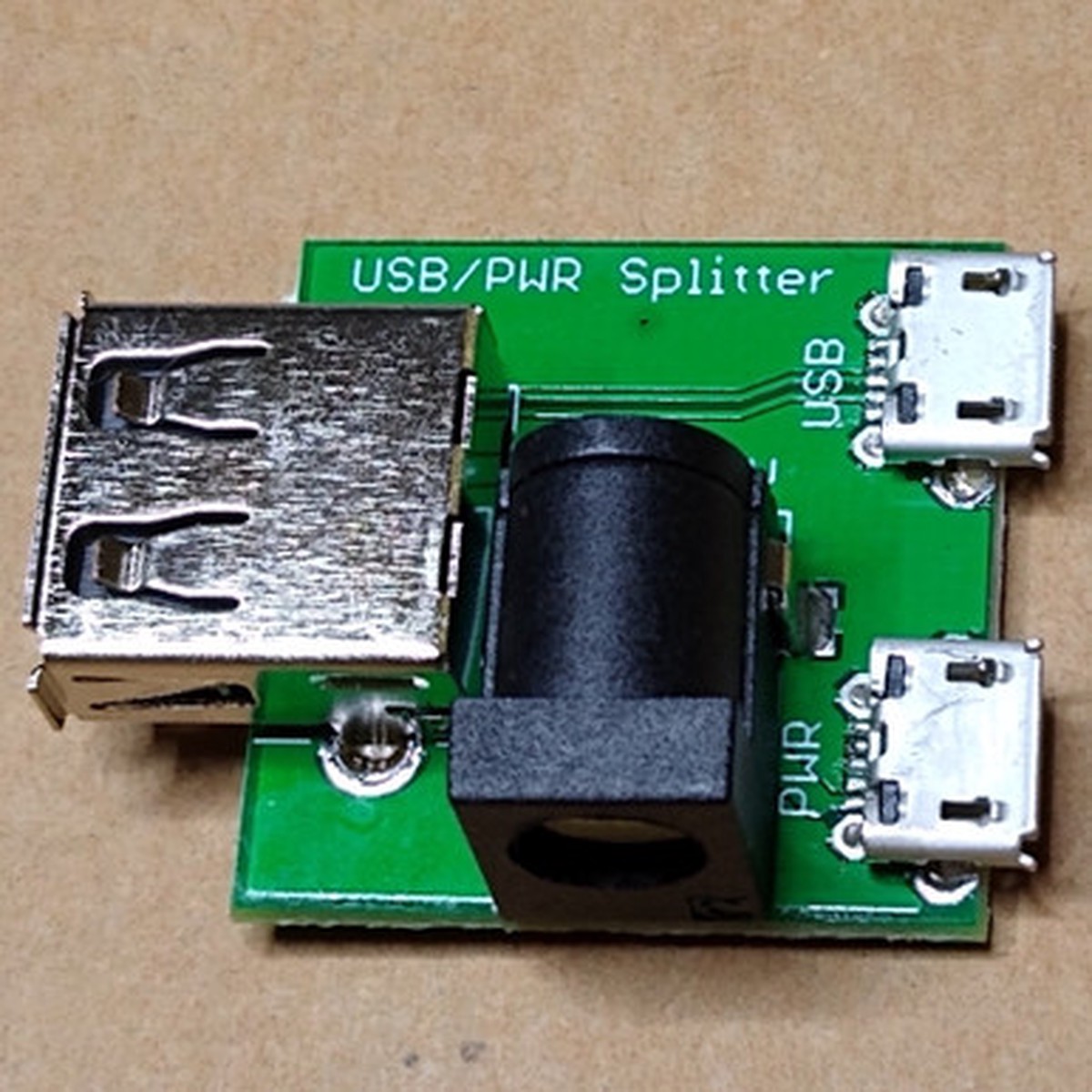

USB/PWR Splitter

Description

Description Show Reviews The adaptor allows the Raspberry Pi 4 to be used with a Pi Micro USB power supply (or DC barrel jack) whilst allowing access to the OTG USB. USB Type-A (data and power) <> USB Data (Micro USB) and Power (Micro USB/Barrel jack). USB Type A Micro USB (PWR) Micro USB (USB) Barrel Jack 5V 5V 5V (tip) D- D- D+ D+ GND GND GND GND The barrel jack accepts 5.5 mm jacks (2.1/2.5 pin) providing 5V. To use the adaptor with the Raspberry Pi 4 you need. A short USB-C to USB-A cable between Pi4 and the adaptor board. Micro USB cable to access USB OTG Data. Power via either Micro USB Power Supply or Barrel jack (5v 2.4 Amp or higher PSU). (Raspberry Pi/USB Cables/PSU/etc. not included) Short cables are advised as the voltage drop over longer cables may cause problems. Using a Cluster HAT node image (p1/p2/p3/p4) you can plug the USB data into a computer (Raspberry Pi, Win10, etc.) and access the system via either USB Gadget Ethernet or Serial Console. 0 Reviews Hide Reviews Show Reviews
