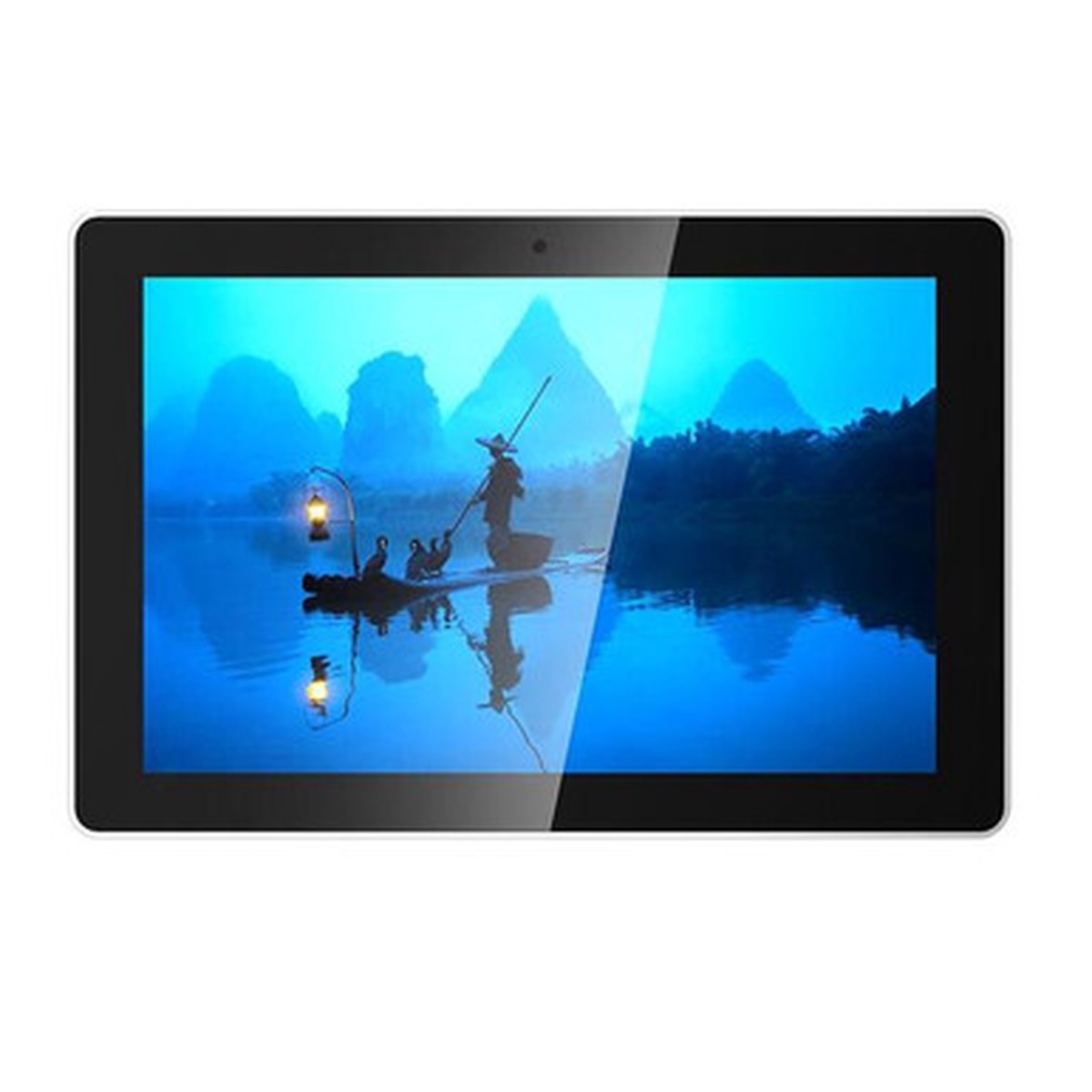

10.1-inch Industrial HMI for Raspberry Pi 5 – ED-HMI3010-101C-0000

Description

Description Show Reviews EDATEC – 10.1-inch Industrial HMI Based on Raspberry Pi 5 -ED-HMI3010-101C-0000 An industrial-grade 10.1″ touchscreen display designed for seamless integration with the Raspberry Pi 5. Features 10.1″HMI module designed for industrial applications 10.1″ TFT, resolution 1280×800, multi-point capacitive touch screen For all current Raspberry Pi 5 boards (to be purchased separately) Compatible with Raspberry Pi 5 Active Cooler Aluminum CNC + sheet metal case, fanless design, providing excellent cooling performance Specifications LCD LCD Size 10.1″ TFT Resolution 1280 x 800 Colors 16.7MB Active Area 216.576mm (H) x 135.36mm (V) Backlight LED MTBF >30000h Pixel Pitch 250cd/m^2 Contrast Ratio 1000:1 Response Time 30ms Viewing Angle (CR10) 80 (L) / 80 (R) / 80 (U) / 80 (D) Touch Screen Type Multi-point Capacitive Touch Screen Transmittance 85 Connection Method COF Controller Interface I2C Driver Support Linux Multi-touch 10 points Surface Hardness 6H Mechanical Characteristics Dimensions 258mm x 172mm x 38mm (WxDxH) Weight About 900g Installation Embedded front installation Dimensions (mm) Notes Please note that you need to install drivers on a supported OS for the display to work. Please see the instructions in the user manual. Resources Datasheet User Manual 0 Reviews Hide Reviews Show Reviews
